60 - 150HP Tractor 9 Inch Wood Chipper Direct DriveWith Shear Bolt PTO Shaft
60 - 150HP Tractor 9 Inch Wood Chipper Direct DriveWith Shear Bolt PTO Shaft
60 - 150HP Tractor 9 Inch Wood Chipper Direct DriveWith Shear Bolt PTO Shaft
60 - 150HP Tractor 9 Inch Wood Chipper Direct DriveWith Shear Bolt PTO Shaft
Specifications
Brand Name :
Fred
Model Number :
BX92RF
Certification :
CE
Place of Origin :
Weifang, China
MOQ :
1 Unit
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
200 Units Per Month
Delivery Time :
40 Working Days After Your Payment
Packaging Details :
Iron Steel Crate Package 1250x1160x2000mm
Drive System :
Direct Drive
Chipping Capacity :
9 - 10 Inches
Flywheel Size :
37 Inches
Flywheel Weight :
500lbs. (225kg)
Number Of Cutting Knife :
4
In - feeding System :
Hydraulic Feed
Description

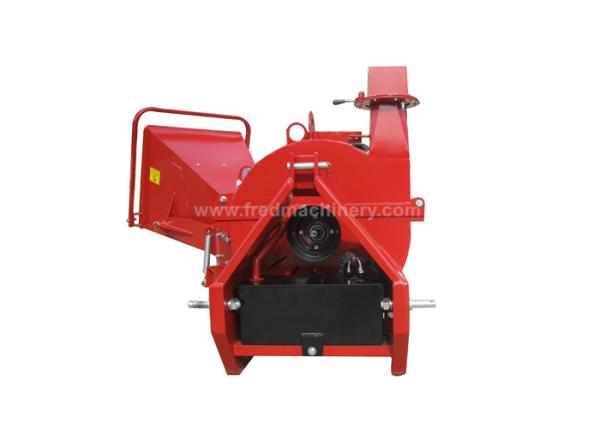

9 Inch Wood Chipper With Shear Bolt PTO Shaft To Match 60 - 150HP Tractor

Advantage:

1. The Fred tractor shredder Max. chipping capacity is 9 inches.

2. With shear bolt PTO shaft for free.

3. It can match 60 - 150 horse power tractor.

Description:

The hydraulic feed chipper runs 2 support strong arms to each side of the hopper with a hydraulic motor on each side, many similar looking hydraulic chippers only run a single sided support arm that resualts in the mount twisting through constant load and vibrations.

The horse power range is from 60hp - 150hp, tractors in the lower end of this rang will struggle operating at the full 9"~10" capacity when chipping hard woods, knots etc., slowing down the feed speed will help smaller tractors work efficiently.

Our chipper bodies are CNC machined to give 100% alignment of greasable rotor bearings.

Many chipper on the market are far too complicated and a simple job such as replacing blades can be very difficult. The hays PTO chipper gains complete access to the rotor for servicing by removing one bolt and the top half of the housing opens for easy access. The hopper can also be fully opened by removing only 2 bolts and nuts.

The internal paddles fitted to the rotor through the chips out the shoot and they also create a vacuum assisted by the vents at the front of the housing to help discharge lighter material.

This is a must have item around the farm, eliminating the need to burn during fire restrictions and great mulch for the garden.
