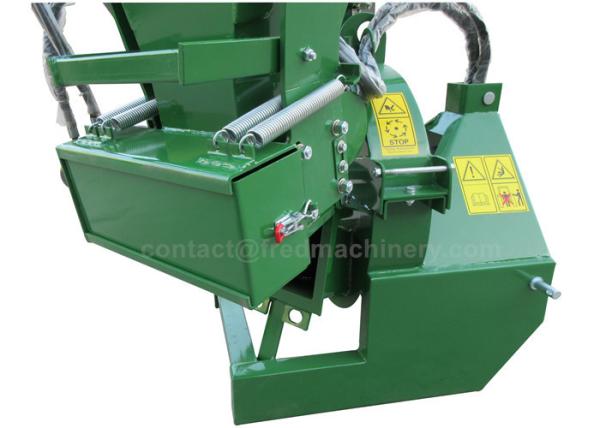

Hydraulic 3 Point Wood Chipper With 20 - 50HP Tractor 4 Cutting Knives
Hydraulic 3 Point Wood Chipper With 20 - 50HP Tractor 4 Cutting Knives
Hydraulic 3 Point Wood Chipper With 20 - 50HP Tractor 4 Cutting Knives
Hydraulic 3 Point Wood Chipper With 20 - 50HP Tractor 4 Cutting Knives
Specifications
Brand Name :
Fred
Model Number :
BX42R
Certification :
CE
Place of Origin :
Weifang, China
MOQ :
1 Unit
Price :
USD1169 - 1209
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
350 Units Per Year
Delivery Time :
30 Working Days After Your Payment
Packaging Details :
Iron Steel Crate Package
Condition :
New
Power Type :
Tractor PTO Driven
After - sales Service Provided :
Online Support
Color :
Upon Your Request
User Manual :
Included
Chipping Capacity :
4 Inches
Description

3 Point Wood Chipper With 20 - 50HP Tractor Hydraulic Chipper 4 Cutting Knives

Advantages:

1. The BX42R 3 point hitch wood chipper need 20-50HP tractor.

2. This hydraulic wood chipper with 4 cutting knives and 1 bed knive.

3. We provide you with OEM or ODM service.

Description:

25-50HP required for operation

Spring loaded auto adjusting feed rollers

Large diameter rotor for faster tip speeds and improved chipping

Chute adjusts a full 360 degrees

Top deflector adjusts chip distance

The model BX42R is the latest version of the BX-shredder, which has a two-sided suspension of the feed rollers and a reinforced feed hopper.

The wood chipper comes complete with shear bolt PTO shaft which is used for security as a breaking point for blockages or overloads. So you can easily use even larger tractors over 50 HP. You should have at least an engine power of 20 HP. The PTO speed must be 540 - 1000 rev / min. respectively.

The hopper has a top opening of 51 x 51 cm; at the bottom of the hole has a dimension of 10.2 x 25.4 cm. , A maximum diameter of 10 cm are shredded. Softer woods can be shredded with a size of up to 25 cm, if necessary; wherein such diameter are processed into firewood in the rule and not chopped.

The processing of the BX42R is very solid; the material thicknesses of the plates used in the amount supporting region 10 and 5 mm, in the hoppers and in non-structural parts of 2 mm.

To transport the hopper can be easily folded up and secured with a cotter pin.
