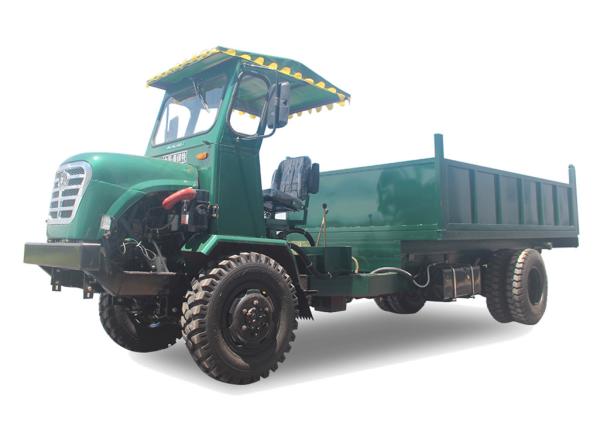

Articulated Chassis Four Wheel Drive Dump Truck / Small Tipper Truck 50HP Air Brake
Articulated Chassis Four Wheel Drive Dump Truck / Small Tipper Truck 50HP Air Brake
Specifications
Brand Name :
SUNLIGHT
Model Number :
SLT504
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 Unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 Unit per year
Delivery Time :
30 days
Packaging Details :
3 units per 40HQ by dismantle
Power :
37kw
Starter :
electric
Color :
customerized
Steering :
full hydraulic
Drive model :
RWD/FWD/4WD
Overall dimension :
6.5*2*2.2m
Description

Articulated Chassis Four Wheel Drive Dump Truck / Small Tipper Truck 50HP Air Brake

Application:
SUNLIGHT tractor dumper adopts articulated design, which is characterized by the hydraulic steering in the central joint. Compared to the front wheel-steering version, it provides a reduced turning radius and the passage of the rear wheels on the front wheels’ trails. The SLT articulated models are particularly suitable for the operators working in very reduced places and narrow passages.
It is proven very useful in : plantation,farm,mining,agriculture,earth moving etc.

Parameters:

NameSNItemSLT-50DT-1
Engine1ModeYC2115
2StarterElectronic
3Power37kw
Gear Box4Model130
5Shift MothodManual
6Drive WheelFWD/RWD/4WD
Dimension7Overall6.5*2*2.2m
8Cargo Tank3.6*1.8*0.6m
9Distance between shaftsFront 1130/Rear 1510
10Whee base3630
Weight11Machine Weight1805kg
12Loading weight2000kg
13Cabin1 person
Transimission Shaft14Speed35km/h
15Gradeability35°
16Ground Clearance220mm
17Rear shaft1050
18Front Axle Model1050
Plate19Front12C/10pcs
20Rearmain:130/10pcs,auxiliary:8pcs
Steering21SteeringFull Hydraulic
Brake System22BrakeAir
23Hand BrakeStandard
Hydraulic Cylinder24Hydraulic CylinderDouble
Tire25Front/Rear7.50-16/7.50-16 double
Beam26MaterialQ235


Articulated Chassis Four Wheel Drive Dump Truck / Small Tipper Truck 50HP Air BrakeArticulated Chassis Four Wheel Drive Dump Truck / Small Tipper Truck 50HP Air Brake
Advantages:
1. Four Wheel Drive (FWD/4WD)
2. China Famous Brand Gear Ddrive Engine-Single Cyclinder 18HP
3. Full Hydraulic Steering For Easy Drive
4. Customerized Cargo Box & Design Avaliable(shape and size)
5. Simple Structure For Easy Maintenance And Operation
Articulated Chassis Four Wheel Drive Dump Truck / Small Tipper Truck 50HP Air Brake
The most widely-sold & comprehensive range of platform tractors and machinery in China
The Sunlight Transporter range is designed to meet the specific needs of operators working in mountainous terrain who need a machine that can handle and move materials. With a wide range of engines from 18 to 95 horsepower,and a choice between rigid or articulated chassis, two versions of this tractor are available, type-approved either as an agricultural tractor or as an operating machine
Articulated Chassis Four Wheel Drive Dump Truck / Small Tipper Truck 50HP Air Brake
