Detailed specifications and functions of gear-driven diesel tillers

Core drive system

This gear-driven diesel tiller is equipped with a powerful 173-5HP diesel engine, which is known for its excellent fuel economy and high torque output. It can easily cope with various complex farmland operation environments and provide continuous power support for the whole machine. Through the precise gear transmission system, the efficient power of the engine is accurately transmitted to the tilling parts to ensure stability and durability during operation.

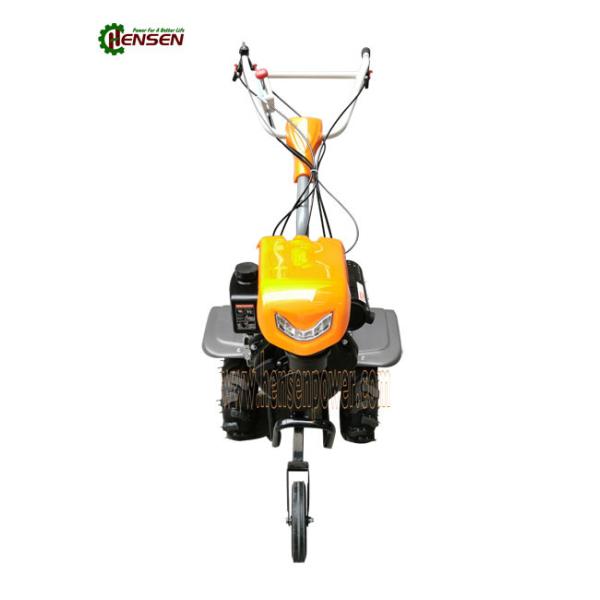

Appearance design and lighting

In terms of the appearance design of the machine, we have introduced a new design concept and equipped it with a newly designed hood, which not only improves the beauty of the whole machine, but also optimizes the heat dissipation performance and effectively extends the service life of the engine. At the same time, the top of the hood is integrated with an LED light group, which can provide sufficient lighting even at night or in low-light environments to ensure safe operation.

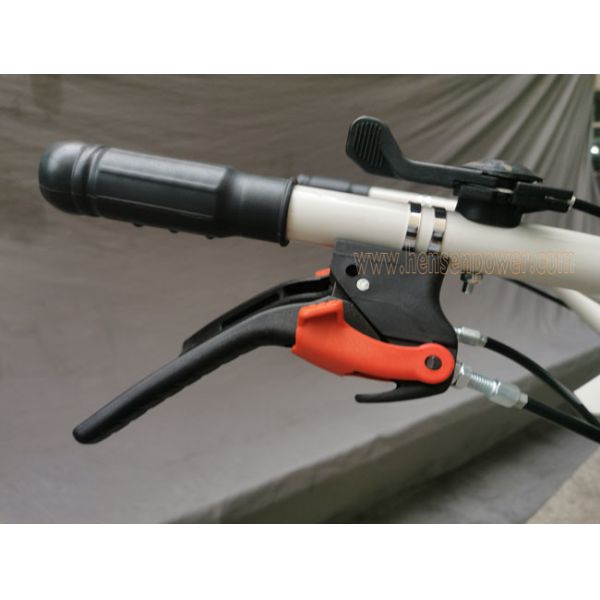

Controllability and comfort

In order to improve the operator's experience, we have specially designed a new handle system that conforms to ergonomic principles. It can maintain a comfortable grip even after long-term operation and effectively reduce fatigue. In addition, the machine is equipped with a recoil starter, which simplifies the starting process and makes starting easier and faster.

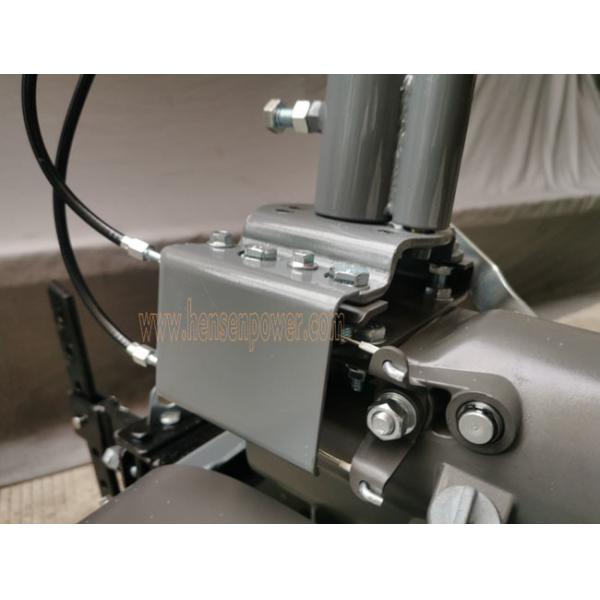

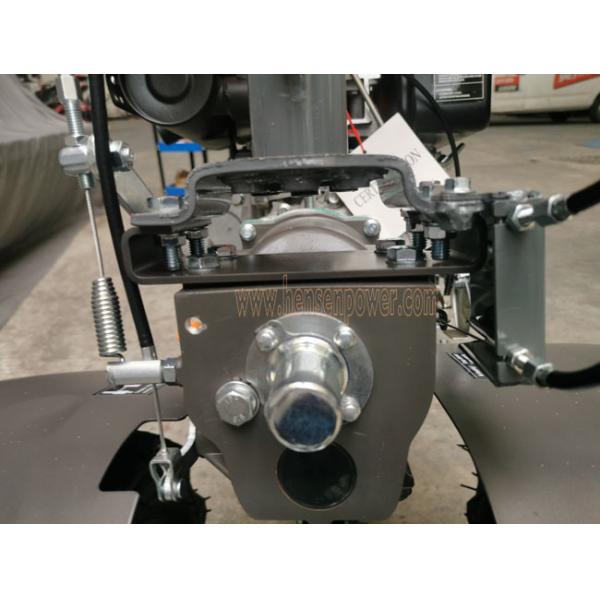

Transmission and tillage components

The core transmission component of this machine adopts a φ23 gearbox, which has a solid structure and smooth gear shifting, and can adapt to the speed adjustment under different operating requirements. The tillage component is equipped with 32 carefully designed dry land blades, arranged in 2×[4×(2+1+1)]. This unique blade layout not only improves tillage efficiency, but also ensures the uniformity and depth of tillage. All blades are individually packed in the tillage box, and appropriate protection measures are taken to avoid scratches with other parts of the machine during transportation or storage, ensuring that the blades are intact.

Mobility and safety

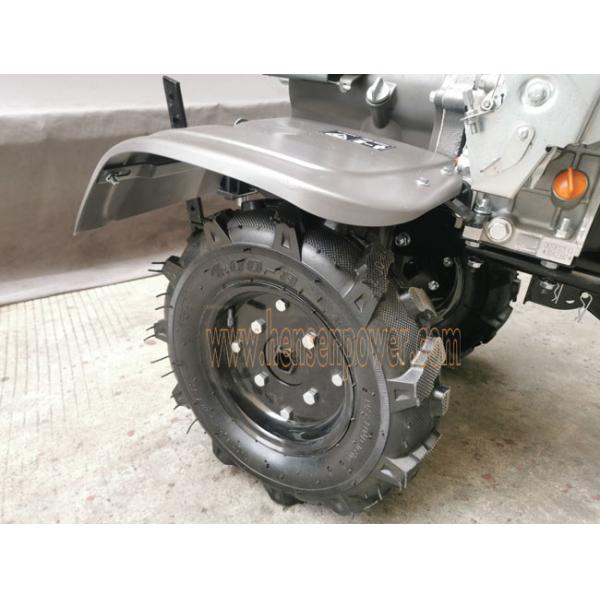

The machine is equipped with 400-8 tires, which have good grip and passability, and can easily cope with both dry and wet fields. The tire color is matte black, which forms a sharp contrast with the PANTONE yellow 2007C of the body, which is both beautiful and eye-catching, and improves safety during operation. In addition, the setting of a large safety switch allows the operator to quickly cut off the power source in an emergency to ensure personal safety.

Optional configuration

In order to meet the needs of different users, this machine also provides a variety of optional configurations:

4.00-10 wheels: Only an additional $6.00 can be upgraded to a larger tire size to further improve the machine's passability and stability.

18AH battery electric start: Add $45.00 to enjoy the convenient battery electric start function, no manual pull rope, one-button start, more labor-saving and efficient.

In summary, this gear-driven diesel tiller will undoubtedly become a powerful assistant for farmers to carry out farmland operations with its excellent performance, humanized design and rich optional configurations.

Product details display:

Technical Parameters:

​
