3 axles Dump trailer Tipper Semi Trailer
3 axles Dump trailer Tipper Semi Trailer
3 axles Dump trailer Tipper Semi Trailer
3 axles Dump trailer Tipper Semi Trailer
Specifications
Brand Name :
Dongfeng
Place of Origin :
China
MOQ :
1 unit
Price :
US$18000-US$21000
Delivery Time :
20 days after the advance payment
Packaging Details :
nude
Trailer type :
dumping tipper trailer
Axle number :
3
Loading capacity :
45 tons
Tire :
12R22.5
Number of Tire :
12
Landing Leg Support :
28T, manual operation
Outside Dimensions :
9000x2500x3500mm
Description

3 axles Dump trailer Tipper Semi Trailer

3 axles Dump trailer Tipper Semi Trailer

Specification of truck chassis:

Type: Dumping Tipper Trailer
Payload 45T

Specification:

 Outside Dimensions (LxWxH) 9000x2500x3500mm
King Pin 2.00’’ traction pin
Suspension Mechanical suspension,American design
Steel Spring 10pcs leaf spring, 13mm thickness, 90mm width
Landing Leg Support 28T, manual operation
Bottom panel thickness: 4mm
Side panel thickness 3mm
Axle Axle No./ weight/ brand 3 axles *13T axles, FUWA brand

　

Wheel:

　

 Tire specs 12R22.5
Rim 9.00
Number of Tire 12

Brake:　

Brake system

 Four double and two single brake chamber; one unit of reliable local brand air tank; two units of reliable local brand standard coppery air-connector.　
Electrical: Electrical: One unit of 24V 7-pin ISO 1185 socket; two sets of reliable LED light

　

Miscellaneous:

　

　

Painting

 Sand blasting before painting;
one coats of primer, anti-corrosion;
two coat of finish painting;
color advised by client
Marking standard
Side Guard standard
Tools box One piece (1. 0*0. 5*0. 5m)( equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

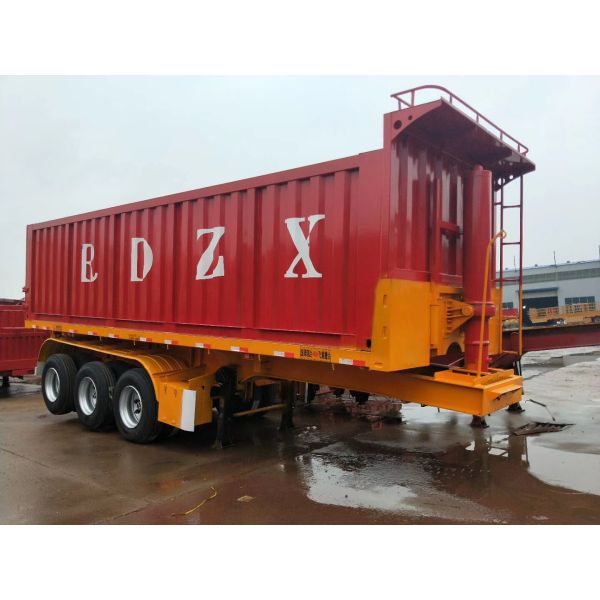

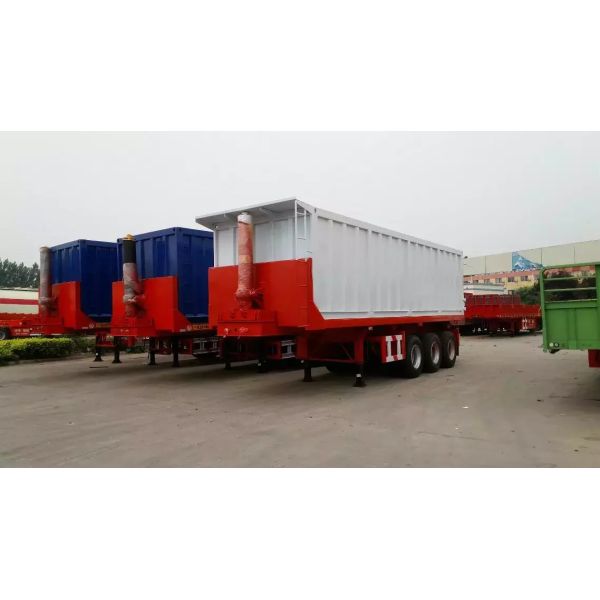

Pictures for reference:

3 axles Dump trailer Tipper Semi Trailer

3 axles Dump trailer Tipper Semi Trailer

3 axles Dump trailer Tipper Semi Trailer
