4 Cubic Meters Concrete Mixer Truck, ready mix concrete truck
4 Cubic Meters Concrete Mixer Truck, ready mix concrete truck
Specifications
Brand Name :
Dongfeng
Model Number :
DFA1063DJ10
Place of Origin :
China
MOQ :
1 unit
Price :
US$19000-US$25000
Payment Terms :
L/C, T/T
Supply Ability :
300 units/month
Delivery Time :
30 days after the advance payment
Packaging Details :
nude
Truck type :
concrete mixer truck
Agitating capacity :
3-4m3
Mixing drum material :
High quality wear-resistance steel
Water tank capacity :
450L
Engine :
140hp
driving type :
4x2
wheel number :
6 wheels
Description

4 Cubic Meters Concrete Mixer Truck, ready mix concrete truck

4 Cubic Meters Concrete Mixer Truck, ready mix concrete truck

Specification of chassis:

Model DFA1063DJ10
Cabin Single Cab
Dimension(mm)
Outer 7570*2220*2910
Wheel Base(mm) 3800
Tread(F/R)(mm) 1750/1586
F/R suspension 1210/1960
Weight(kg)
Curb Weight(kg) 3645
Payload(Kg) 6000
G.V.W(kg) 8125
Engine
Engine type Cummins EQB140-30
Emission standard Euro III
Power 103/2500
Torque 502/1500
Bore*Stroke(mm) 107*124
Displacement(ml) 3922
Performance
Max Speed(kg/h) 105
Max Gradeability 30
Min Turning Radius(m) 7.5
Power steering Equipped
Brake air
Battery 24V
Tire 7.5R16

Specification of Mixer Drum:

Mixing capacity(m³) 4
tanker material 16MnQ345
Angel of inclination of mixing drum(°) 16-18
Feeding speed(m³/min) 2
Discharge speed(m³/min) 2
Residual ratio(%) ＜0.7
Mixing speed(r/min) 0-18
Transport mixing speed(r/min) ‘3-4
Water tanker(L) 500

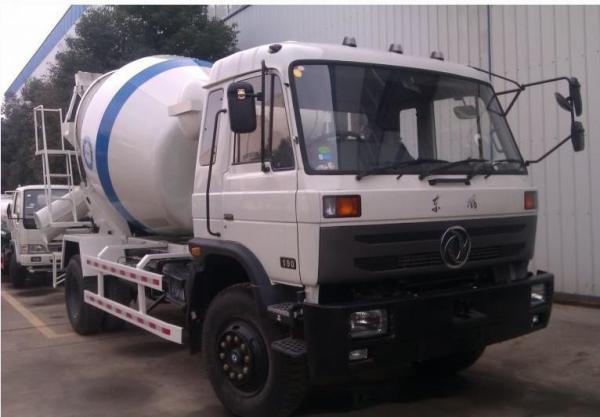

Pictures for reference:

4 Cubic Meters Concrete Mixer Truck, ready mix concrete truck

4 Cubic Meters Concrete Mixer Truck, ready mix concrete truck

4 Cubic Meters Concrete Mixer Truck, ready mix concrete truck

4 Cubic Meters Concrete Mixer Truck, ready mix concrete truck
