3m3 concrete mixer truck/small mixer/concrete transport truck/4X2/Cummins engine/cheap price
3m3 concrete mixer truck/small mixer/concrete transport truck/4X2/Cummins engine/cheap price
Specifications
Brand Name :
DONGFENG
Model Number :
EQ3095
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: USD18000~20000/unit
Supply Ability :
100 units/month
Delivery Time :
30 day after deposit
Mixer capacity :
3m3
Wheel base :
3300mm
Engine model :
Cummins B125-33
Steering :
RHD and LHD are available
Description

3m3 concrete mixer truck/small mixer/concrete transport truck/4X2/Cummins engine/cheap price

Advantages:

Small capacitiy low cost (very difficult find such small concrete mixer trucks in Chinese famous manufacturer at present.)

RHD & LHD are available (We can make not only LHD but also RHD)

Good Performance (We adopt Cummins engine which with high durability and good performance even in rough roads)

Specifications:

Model:EQ3095TL
Engine
ModelCummins B125-33
TypeDiesel, Direct Injection,Turbo charged with Intercooler
Max. Engine Output (HP or KW/rpm)92 KW(125 HP)
Max. Tourque (N.m/rpm):410 Nm @ 1400-1600 rpm
Cylinder Displacement L/cc3900ml
Emission:Euro 3
Gear BoxMT / Forward 5 & Reverse 1
ModelWLY5S550
SuspensionStrengthen spring
TypeSpring leaf tablet: 9/11+8
BrakesFront&Rear drum,dual-circult service brakding system
Clutch
Type:Single,dry,diaphragm spring clutch⊙350
Overall Dimensions (LxWxH) mm:5560×2100×2650
axle (Front/Rear)kg:2800 / 8000
Driving Type:4×2
Wheel Base (mm):3300
Min ground clearence (mm):248
Vehicle Weight
Curb weight (kg):3800
Pay Load Capacity (kg):5600
Gross vehicle weight (kg):9400
Cabin:1+2 seats / 2 doors
Steering
Type:power steering gear
Wheels & Tyres
Front:Tire Number: 2, Tire Size: 8.25R16
Rear:Tire Number: 2, Tire Size: 8.25R16
Mixing tanker specification
Mixing capacity(m³)3
tanker material16MnQ345
Angel of inclination of mixing drum(°)16-18
Feeding speed(m³/min)2
Discharge speed(m³/min)2
Residual ratio(%)＜0.7
Mixing speed(r/min)0-18
Transport mixing speed(r/min)3-4
Water tanker(L)500

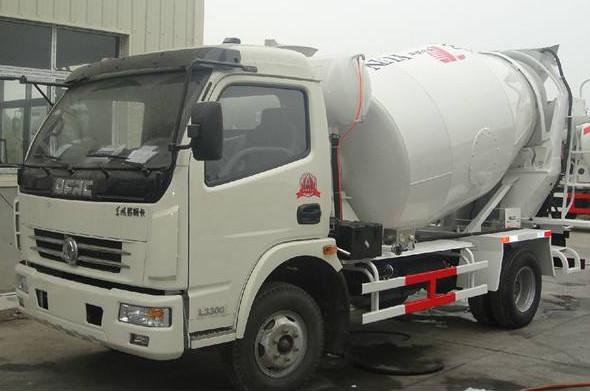

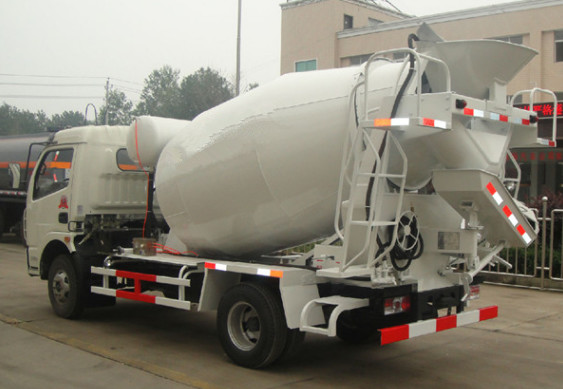

Product Picture:
3m3 concrete mixer truck/small mixer/concrete transport truck/4X2/Cummins engine/cheap price3m3 concrete mixer truck/small mixer/concrete transport truck/4X2/Cummins engine/cheap price
