Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
Specifications
Brand Name :
DONGFENG
Model Number :
EQ3040GFV
Place of Origin :
CHINA
MOQ :
2 units
Price :
FOB Shanghai: USD14999 ~ 15999/unit
Supply Ability :
100unit/month
Delivery Time :
15 work days
Packaging Details :
2 units in one 45'' Container
Drive mode :
4x2
Payload :
10,000kg
Wheel base :
3550mm
Tyre :
8.25 -20R
Color :
White, red, blue, yellow, green.
Description

Dongfeng 4X2 10ton Dump/Tipper Truck

Advantages:
1, Strong payload ability (front axle use Meite 2.7T Steering Axle, rear axle use Meite 8T Drive Axle)

2, RHD & LHD are available (We can make not only LHD but also RHD)

3, Good Performance (We adopt Yuchai engine which is very famous in China)

4, Good for shipping (2 units can load in one 45'' container which can save much shipping charges)

Specifications:

Specification

Overall Dimension (mm)

 6160X2300X2850
Cargo box (mm) 4200X2150X1200 10.8CBM (side: 2mm, floor: 3mm, Middle Lifting)
Wheel Track (front/rear) mm 1810 / 1800
Front/Rear Overhang (mm) 1180 / 1270

Wheel Base (mm)

 3550
Driving Type 4×2
Min ground clearence (mm) 226
Curb weight (kg) 5600
Pay load capacity (kg) 10,000
Gross vehicle weight (kg) 15600
Front Axle Meite 2.7T Steering Axle
Rear Axle Meite 8T Drive Axle
Cabin B07 New vertical headlights, LHD, three-seater + one-seater cab with air conditioning.
Steering power steering gear
Wheels & Tyres 825-20R
Brakes Front&Rear drum,dual-circult service brakding system
Suspension Strengthen spring
Gear Box DONGFENG 4150 Gear, F:L5+H5 & R:L1+H1; 10 forward gears (5 fast + 5 slow speeds) 2 reverse gears)

Engine Datas

Model

 YC4D120-33
Engine Brand Yuchai

Displacement (L)

 4.212
Type Vertical, inline, water cooled, four stroke, direct injection
Cylinder 4 cylinders in line

Type of Fuel

 Diesel

Emission Standard

EuroIII
Max. Output Power (KW) 90
Rated Speed (rpm) 2800
Horse Power (hp) 120
Max. Tourque (N.m/rpm)

350 Nm @ 1600-1900 rpm
Net weight 380kg
Min-fuel consumption 205g/kw.h

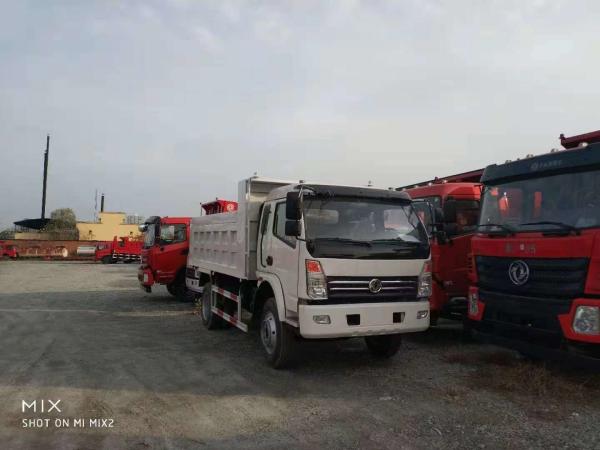

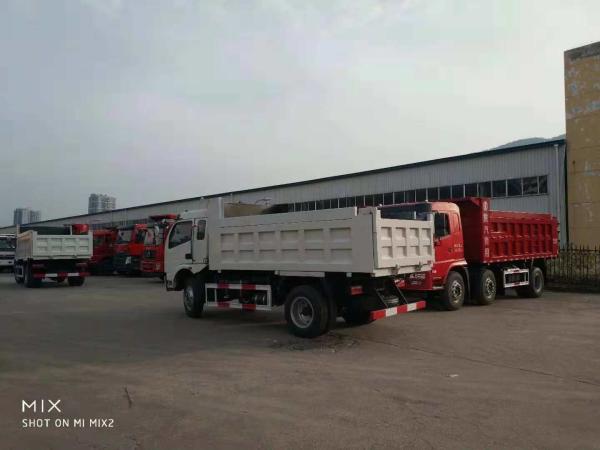

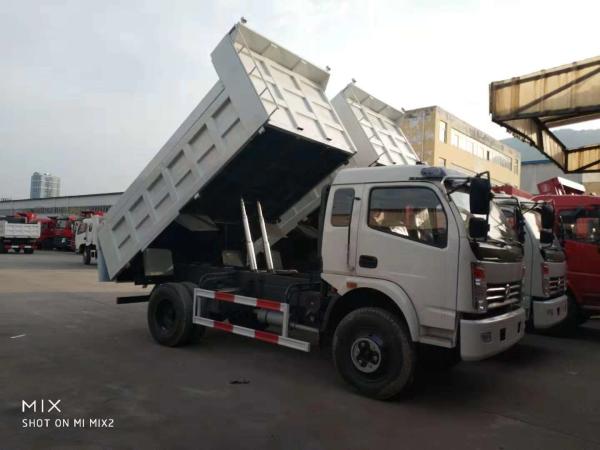

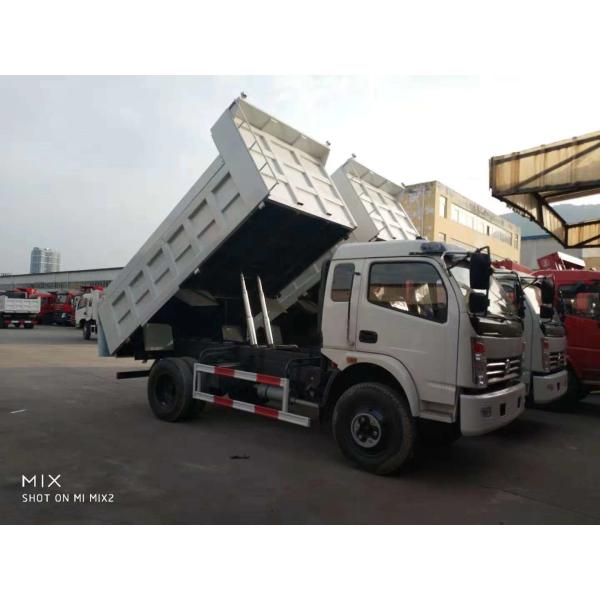

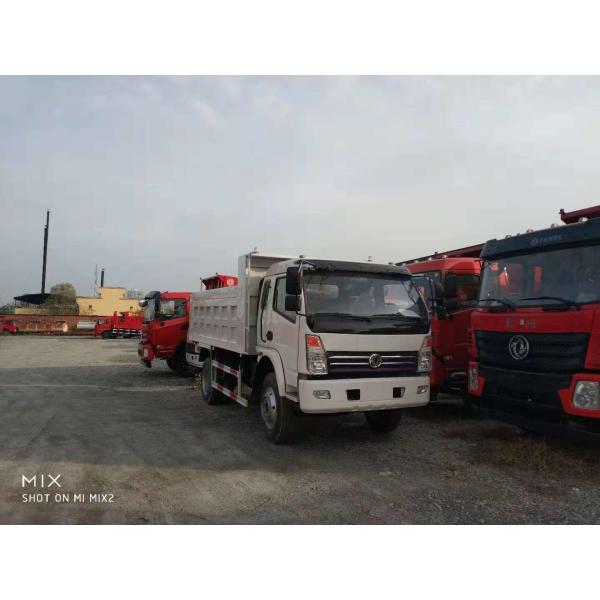

Photos:

Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/Dongfeng 4x2 dump truck/tipper truck/10 ton tipper truck/120hp Yuchai Engine/
