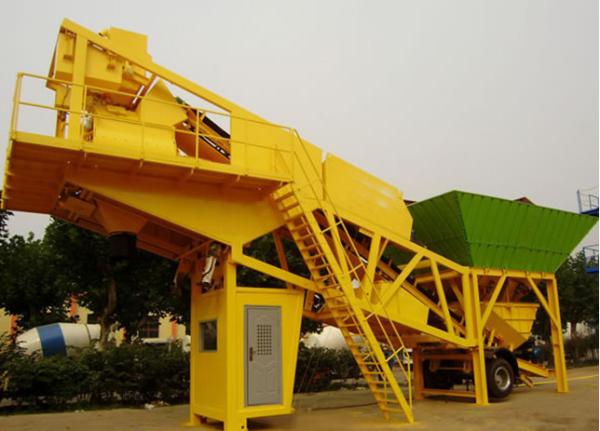

Descriptions of BNM-80 Mobile Concrete Mixing Plant:

The modular design of without foundation and commissioning enables the modular concrete mixing plant convenient movement and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. It is an ideal choice for engineering.

General Information of BNM-80 Mobile Concrete Mixing Plant:

Capacity: 80m³/h

Mixing Time: 60 S

Max Aggregate Size: 60/80 mm

Discharging Height: 3800 mm

Total Power: 110kw

Total Weight: 32 Ton

Total Dimensions: 19000×4200×8300 mm

Transportation: Truck Trailer

Technical Parameters of BNM-80 Mobile Concrete Mixing Plant:

1. MIXING SYSTEM

Twin Shaft Concrete Mixer: JS1000

Volume: 2400 L

Capacity: 1500 L

Paddle quantity: 20pcs

Paddle Speed: 25.5 r/min

Mixing Motor: 2×30kw

2. AGGREGATE SYSTEM

2.1Aggregate Batcher PLD2400

Volume: 4×10m³=32

Sort of aggregate: 4

Capacity: 110 m3/h

Power: 11kw

Sand vibrator: 0.37kw×2

2.2. Aggregate Belt Conveyor 1 unit

Width: 1000 mm

Length: 20000mm

Speed: 1.6 m/s

Motor: 11kw

3. CEMENT SYSTEM

3.1 Cement Silo 2 units
Capacity: 100 Ton×2=200 Ton

Silo Diameter: Φ2800

3.2 Cement Screw Feeder 2 units

Diameter: Φ273 mm

Length: 9 m

4. ADDITIVE SYSTEM

Additive silo capacity :1 m³

Pneumatic valve: Φ50 mm

Pump: 3 kw

5. WATER SYSTEM

Submersible pump: 3kw

Water pump: 0.75kw

Water tank: 3 m³

6. AIR SYSTEM

Air Compressor: 1 unit

Power: 7.5kw

Pressure: 0.7Mpa

Airflew: 0.8 m³/min

7. WEIGHING SYSTEM:

7.1 Aggregate weighing 1 unit

Weighing Capacity: 1.6 m³

Precision: ±2%

7.2 Cement weighing 1 unit

Weighing Capacity: 1m³

Precision: ±1%

7.3 Water Weighing 1 unit

Weighing Capacity: 150 kg

Precision: ±1%

7.4 Additive Weighing 1 unit

Weighing Capacity: 40 kg

8. CONTROL SYSTEM:

PLC command and control operation

Main electrical components: Schneider

17’’ colorful computer

Manuel and Auto Control is freely changeable
