Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier
Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier
Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier
Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier
Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier
Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier
Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier
Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier
Specifications
Brand Name :
Dongfeng Mid-south
Model Number :
220
Certification :
CCC
Place of Origin :
China
MOQ :
1
Price :
USD
Supply Ability :
USD 50,000 to 80,000 per set
Delivery Time :
25 work days
Packaging Details :
Container
Name :
Road grader
Engine :
Cummins 6CTA8.3
Engine Power :
158kW (215Hp)
Blade size :
3965×610mm
Description

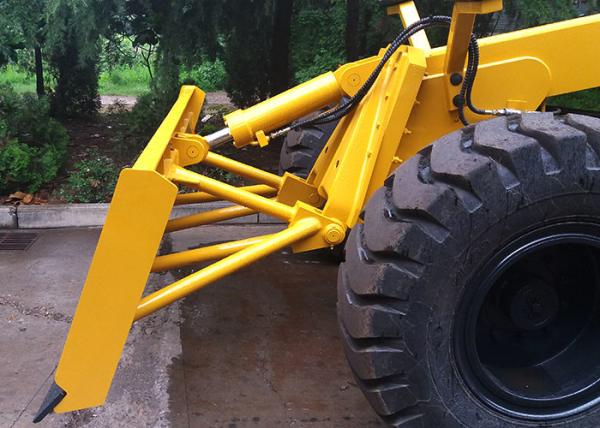

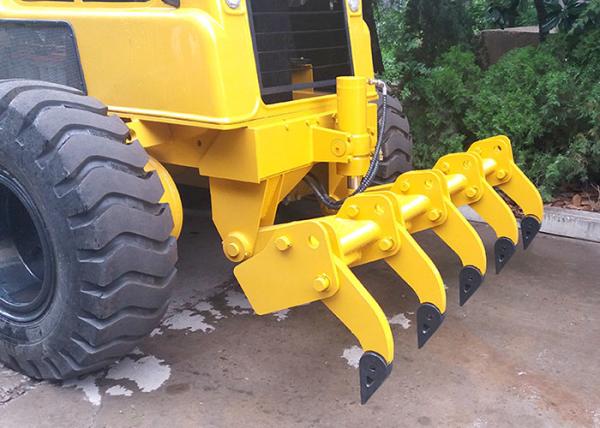

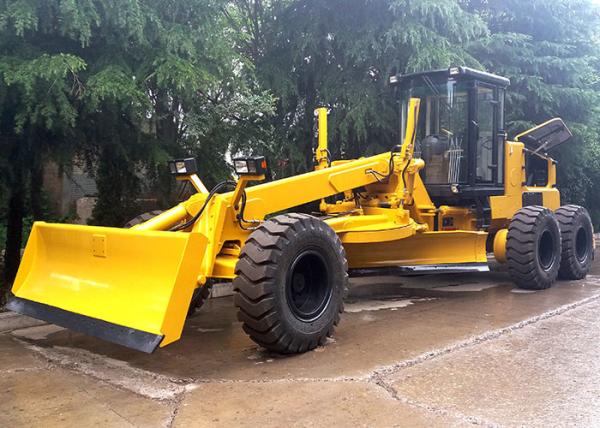

Self-propelled articulated Motor Grader 215Hp with air conditioner, front blade, rear scarifier optional

Common used model

Model Engine Main parameters
PY165C 6BTA5.9 DI water-cooled turbo-charged
inter-cooled diesel engnie		 front 6 and rear 3 electrical
hydraulic gear box of hangchi,
hydraulic pressure pull out,rolling-
plare circle devic.With air conditioning cab
PY180C 6BTA5.9 DI water-cooled turbo-charged
inter-cooled diesel engnie
PY220C 6CTA8.3 turbo-charged diesel engine
Optional configuration
Model Engine other
PY165C front bulldozing plate
and rear ripper
PY180C shangchaiD6114ZG14B
turbo-charged diesel engine
PY220C

MODEL PY220C PY180C PY165C
Operating mass kg 16900 16000 15000
Front axle load kg 5820 5150 4150
Rear axle load kg 11080 10850 10850
Max.forward speed km/h 36.8 38.2 40.4
Max.backward speed km/h 24.8 24.5 25.7
Speed gear number F6/R3 F6/R3 F6/R3
Turning radius mm 7800 7800 7500
Hydraulic system pressure Mpa 18 18 18
Blade length×height mm 3965×610 3965×610 3660×610
Front wheeltrack mm 2150 2150 2150
Rear wheeltrack mm 2340 2340 2340
Wheelbase mm 6362 6362 6062
Engine power kw 158 132 125
Overall dimensions mm 8585×2790×3340 8585×2790×3340 8585×2790×3340
Engine model 6CTA8.3 6BTA5.9 6BTA5.9

Main features:

1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.

2. Torque converter and power-shift gearbox introduced from Hangchi, are integrated together Six forward gears and three backward gears meet various requirements during machine's working and transporting.

3. Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case,Boxed oscillated steering front axle with leaned wheels.

4.Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plare circle device.Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.

5. Flexible hydraulic control system with two sets of HUSCO five way control valve,Imported hydraulic equalizing valve for the blade lifting ,patent hydraulically-operated pin drawing device is designed firstly in board.

6. Steering system with center articulated joint and tilting running front wheels can get off set travel of the entire machine.

7. Service braking system of,caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.

8. Dual diagonal appearance with whole metal hood 1m×1m distance

9. Electro-hydraulically operated with entire instrumental monitoring system,Free-maintenance OPTIMA Sweden batteries have.

10. It's optional for front bulldozing plate and rear ripper.

Self Propelled Articulated Motor Grader 215 Hp With Front Blade / Rear Scarifier

Package and delivery

40HQ container
