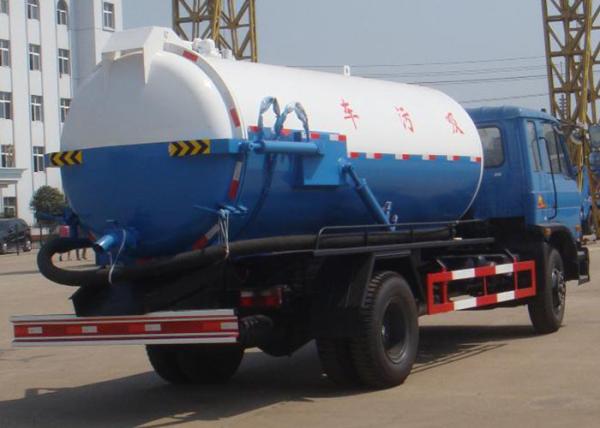

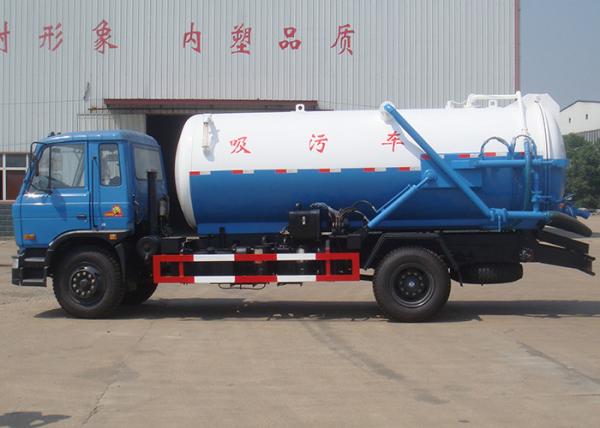

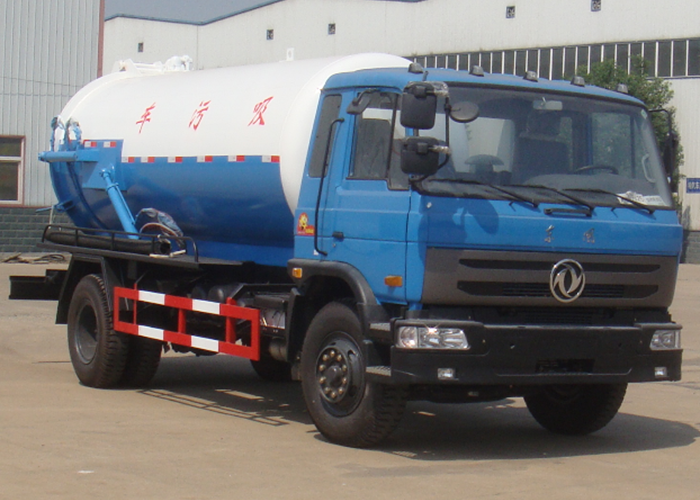

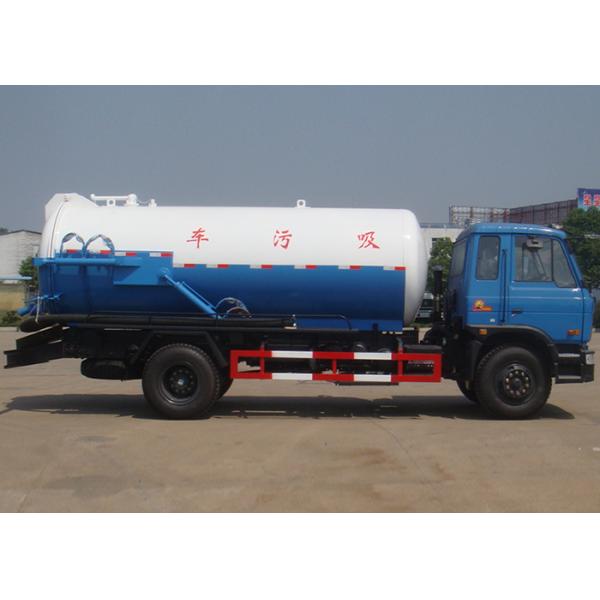

Municipal 7m3 Sewage Suction Truck / Sewage Tanker Truck With City Cleaning Tanker
Municipal 7m3 Sewage Suction Truck / Sewage Tanker Truck With City Cleaning Tanker
Municipal 7m3 Sewage Suction Truck / Sewage Tanker Truck With City Cleaning Tanker
Municipal 7m3 Sewage Suction Truck / Sewage Tanker Truck With City Cleaning Tanker
Municipal 7m3 Sewage Suction Truck / Sewage Tanker Truck With City Cleaning Tanker
Municipal 7m3 Sewage Suction Truck / Sewage Tanker Truck With City Cleaning Tanker
Specifications
Brand Name :
Dongfeng Mid-south
Model Number :
7 m3
Certification :
CCC
Place of Origin :
China
MOQ :
1
Price :
USD 23,000 to 30,000 per set
Payment Terms :
T/T, L/C
Supply Ability :
500 sets
Delivery Time :
15 work days
Packaging Details :
Ro-ro, container
Name :
Sewer vacuum tanker truck
Tanker volume :
7000 L
Chassis :
Dongfeng 4x2
Tank thickness :
6mm
Description

Municipal used 7m3 Sewage Suction truck city cleaning tanker customize supported

A vacuum truck or vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck.

Vehicle parameters
Vehicle Model Vehicle Brand DONGFENG
Overall dimensions 7350×2495×3050mm Curb weight 5800kg
Tank dimensions 4450×1500×1500mm Tank volume 7000L

Municipal 7m3 Sewage Suction Truck / Sewage Tanker Truck With City Cleaning Tanker

Chassis parameters
Chassis model EQ1108KJ Chassis brand DONGFENG
Overall dimensions 6975X2462X2690mm Wheel base 3950mm
Front/rear wheel track 1900/1800mm Front/rear suspension 1205/1820mm
Approach/departure angle 25/18° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Blue,other color is optional
Engine Model CUMMINS B170 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 125KW/170hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 560N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Frame (250×80×7)mm,parts are double layers.
Fuel tank 160L,steel
Front axle 3.6T
Rear axle 9.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner,+USD220,steel wire tire+USD480
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Municipal 7m3 Sewage Suction Truck / Sewage Tanker Truck With City Cleaning Tanker

Vacuum sewage suction tank structure parameters
Tank dimensions 4450×1500×1500mm Tank volume 7000L
Tank material Carbon steel Tank thickness 6mm
Color and Logo Optional
China YiFeng vacuum pump
Model XD350 RPM 950r/min
Flow 97L/s Pressure -9000Pa
Standard configuration vacuum sewage tank,oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge,suction hose, gravity flow valve, connected device,observation tube, automatic anti overflow valve, hydraulic suite,rear door hydraulic opening.
