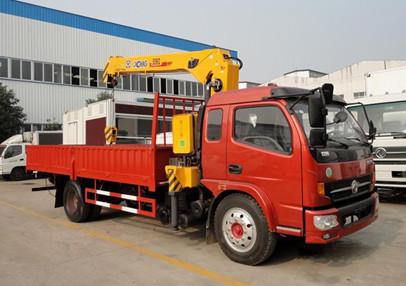

DFA1063DJ10 Mobile Crane Truck With Cummins 140 hp Matching XCMG Crane
DFA1063DJ10 Mobile Crane Truck With Cummins 140 hp Matching XCMG Crane
DFA1063DJ10 Mobile Crane Truck With Cummins 140 hp Matching XCMG Crane
DFA1063DJ10 Mobile Crane Truck With Cummins 140 hp Matching XCMG Crane
DFA1063DJ10 Mobile Crane Truck With Cummins 140 hp Matching XCMG Crane
DFA1063DJ10 Mobile Crane Truck With Cummins 140 hp Matching XCMG Crane
Specifications
Brand Name :
DongFeng
Model Number :
DFA1063DJ10
Certification :
ISO GCC
Place of Origin :
Hubei
MOQ :
1 unit
Price :
USD
Supply Ability :
500 UNIT EACH MONTH
Delivery Time :
30-35 WORKING DAYS
Packaging Details :
NUDE
color :
Red
Dimention :
7100*2300*3300
wheelbase :
3800
Engine :
EQB140-30
Emission standard :
Euro III
Cabin :
single cabin
cargo body :
5000*2050*550
name :
cargo crane truck
Description
Cabin Single Cab
Dimension(mm)
Outer 7100*2300*3300
Cargo Body 5000*2050*550
Wheel Base(mm) 3800
Tread(F/R)(mm) 1750/1586
F/R suspension 1210/1960
Weight(kg)
Curb Weight(kg) 3645
Payload(Kg) 6000
G.V.W(kg) 8125

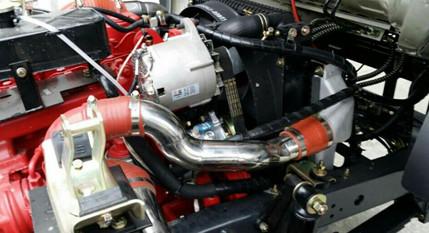

Engine
Engine type EQB140-30
Emission standard Euro III
Power 103/2500
Torque 502/1500
Bore*Stroke(mm) 107*124
Displacement(ml) 3922
Performance
Max Speed(kg/h) 105
Max Gradeability 30
Min Turning Radius(m) 7.5
Power steering Equipped
Brake air
Battery 24V
Tire 7.5R16
Cabin
Heater Equipped
Air conditioner Optional/USD480.00
Centrul Lock and Power Window Optional/USD260.00
Crane
Crane brand XCMG
Crane Weight (Kg) 1500
Max. Lifting Capacity (Kg) 5000
Max. Lifting Moment (T.M) 20
Lifting Capacity/Working Radius (Kg/m) 2375/7.815
3270/6.050
4285/4.670
6750/3.000
Max. Working Radius (m) 7.815
Max. Working Height (m) 10
