Aluminum 42000L Oil Tank Trailer , Diesel Fuel Tank Trailer With Two Compartments
Aluminum 42000L Oil Tank Trailer , Diesel Fuel Tank Trailer With Two Compartments
Aluminum 42000L Oil Tank Trailer , Diesel Fuel Tank Trailer With Two Compartments
Aluminum 42000L Oil Tank Trailer , Diesel Fuel Tank Trailer With Two Compartments
Aluminum 42000L Oil Tank Trailer , Diesel Fuel Tank Trailer With Two Compartments
Aluminum 42000L Oil Tank Trailer , Diesel Fuel Tank Trailer With Two Compartments
Aluminum 42000L Oil Tank Trailer , Diesel Fuel Tank Trailer With Two Compartments
Aluminum 42000L Oil Tank Trailer , Diesel Fuel Tank Trailer With Two Compartments
Specifications
Brand Name :
TARZAN
Model Number :
TA685-B
Certification :
ISO, CCC, SASO
Place of Origin :
CHINA
MOQ :
1
Price :
$24000- $46000/unit
Supply Ability :
500units per month
Delivery Time :
25 days after receipt of down payment
Packaging Details :
Nude packing
Product name :
Oil tanker trailer
Other name :
Fuel tanker trailer
Capacity :
42m3
Material :
Aluminum
Overall dimension :
12210mm x 2490mm x 3310mm
Payload :
31000kg
Tank compartment :
two compartment
Tire :
385/65 R 22.5x7. BRIDGESTONE
Description

42000L Aluminum oil tanker trailer for transport oil/fuel/gasoline/diesel with two compartments

TECHNICAL SPECIFICATION

GENERAL:

The tanker trailer is designed for stevedoring and transporting fuel. Working pressure 75psi, testing pressure 1.5 times of working pressure.

Transport medium:

Fuel with density between 0.74kg/L and 0.87 kg/L

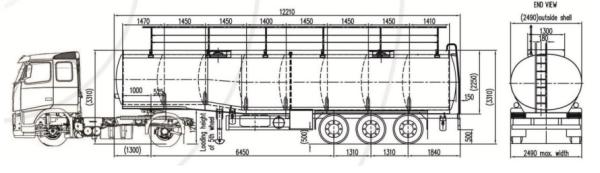

Dimension (mm):
External (length x width x height) (mm): 12,210x 2,490 x 3,310
Fifth Wheel Height (unload): 1,319
King Pin Height: 1,217
King Pin Setting (kingpin to front end): 1,300
Wheel Distance (king pin to second axle): 7,760
Axle space: 1,310 + 1,310
Landing Gear location (from the king pin): 2,420
Weight (kg):
Tare Weight (tolerance ±3%): 5,980
Maximum Payload (Light fuel for planes): 31,000
Maximum Gross Weight: 37,200
Maximum King Pin Payload (distributed payload): 12,900
Maximum Axle Payload (distributed payload): 24,300

Tank Body:

Capacity: 42m3 +5% Vapor Volume

Compartments: two compartments

Shape of Tank: ellipses; variable cross‐section

Tank Material: Aluminum alloy 5454 conforming ADR, minimum shell thickness 5.5mm

Dish Ends and Bulkhead: Aluminum alloy 5454 conforming ADR, thickness 6mm minimum;

Baffle Material: Aluminum alloy 5454 conforming ADR, thickness 6mm minimum;

Tank Accessories and Fittings:

Manhole:

Two 20" diameter manholes with 20” CIVACON manhole cover, 10" fill/vent, pressure vacuum vent and emergency vent included in manhole assembly. Protecting cover for manhole is provided.

Discharge System:

Bottom loading & gravity discharge system:

1. Foot Valve: two 4" “CIVACON” pneumatic foot valve on the bottom of the tanker. One is in the front/middle of tank; the other is at the rear of tank.

2. 4” aluminum alloy pipe line, outlet located at the middle of tank, right, with sight glass.

3. Two 4" “12,210x 2,490 x 3,310” API adaptor with aluminum dust cap on the right side of tanker (Horizontal installation).

4. The API adaptors are to be fitted at a height of between 705mm and 850mm.

5. All outlets are in the aluminum alloy box.

6. Outlets box equipped with sliding door and sealing opening.

7. Trailer brake to be applied when bottom loading valves are on operation

Product tags

fuel tankers semi trailer

,

aluminum tanker trailer

,

fuel storage trailer
