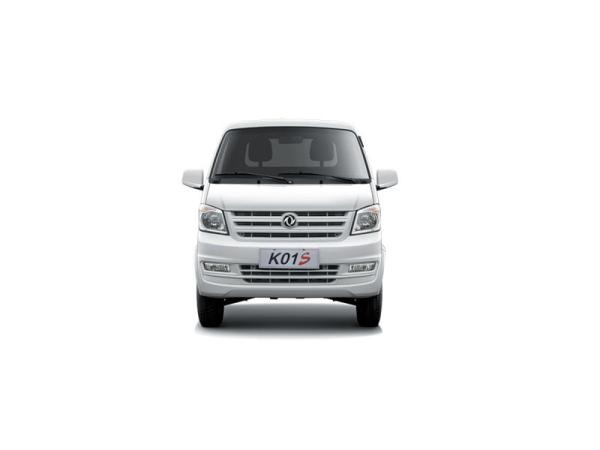

Dongfeng Mini Cargo Truck K01S K02S 1 Ton Loading Capacity With Single Cabin / Double Cabin
Dongfeng Mini Cargo Truck K01S K02S 1 Ton Loading Capacity With Single Cabin / Double Cabin
Dongfeng Mini Cargo Truck K01S K02S 1 Ton Loading Capacity With Single Cabin / Double Cabin
Dongfeng Mini Cargo Truck K01S K02S 1 Ton Loading Capacity With Single Cabin / Double Cabin
Dongfeng Mini Cargo Truck K01S K02S 1 Ton Loading Capacity With Single Cabin / Double Cabin
Dongfeng Mini Cargo Truck K01S K02S 1 Ton Loading Capacity With Single Cabin / Double Cabin
Specifications
Brand Name :
DZ
Model Number :
K01S
Certification :
GCC, CE
Place of Origin :
China
MOQ :
1 unit
Price :
US$4700/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30 days
Packaging Details :
nude
Name :
Dongfeng K01S K02S mini truck
Wheelbase :
2515 mm
Seat :
2
Power :
47 kw
Overall dimension :
3970×1560×1825 mm
Description

Dongfeng K01S K02S mini truck 1 ton loading capacity, single cabin double cabin

Specification Details:
■ Dimension&Mass
L*W*H (mm) 4000×1560×1840 4600×1560×1840
Cargo Size(mm) 1390×1400×430 2000×1440×340
Wheelbase (mm) /2515 2760
Tread(Front/Rear) (mm) 1310/1310
Curb Weight(kg) 960
Gross Weight(kg) 1990
Seats 5
Min.turning diameter (m) ≤9.8
Max.gradeability(%) ≥30
■ Engine
Engine Model AF11-05 DK12-01
Engine Position Middle Positioned
Engine Type Four Cylinders in Line, Four-strokes, Water Cooling, DOHC, Petrol Engine With Electric Control Fuel Injection.
Emission standard National Standard IV /Euro 5B+
Displacement (cc) 1050 1206
Power (kw) 47 64
Max torque (N.m) 91 108.5
Fuel Tank Capacity (L) 40
Gear Box 5 MT
Max Speed(km/h) 110 115
Fuel Consumption(L/100km) 7.1 7.5
■Chassis
Braking System Front disk & Rear drum, Dual Circuit Hydraulic Braking System
Driving Model Rear-wheel drive
Front/Rear Suspension Macpherson Independent Suspension, Five-bar Rear Semi-independent Suspension.

■ ChassisDongfeng Mini Cargo Truck K01S K02S 1 Ton Loading Capacity With Single Cabin / Double Cabin
Braking System Front disk & Rear drum, Dual Circuit Hydraulic Braking System
Driving Model Rear-wheel drive
Front/Rear Suspension Macpherson Independent Suspension, Five-bar Rear Semi-independent Suspension.
