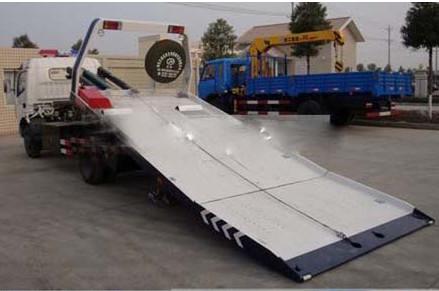

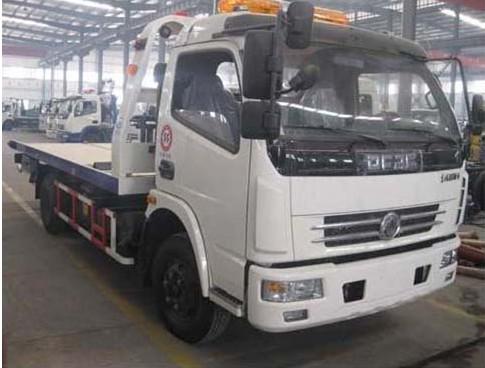

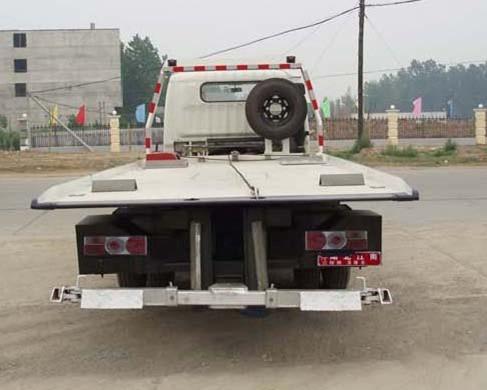

3 Ton Special Purpose Trucks Road Wrecker Truck Towing Two Cars White Color
3 Ton Special Purpose Trucks Road Wrecker Truck Towing Two Cars White Color
3 Ton Special Purpose Trucks Road Wrecker Truck Towing Two Cars White Color
3 Ton Special Purpose Trucks Road Wrecker Truck Towing Two Cars White Color
3 Ton Special Purpose Trucks Road Wrecker Truck Towing Two Cars White Color
3 Ton Special Purpose Trucks Road Wrecker Truck Towing Two Cars White Color
3 Ton Special Purpose Trucks Road Wrecker Truck Towing Two Cars White Color
3 Ton Special Purpose Trucks Road Wrecker Truck Towing Two Cars White Color
Specifications
Brand Name :
dongfeng brand truck
Model Number :
JDF5071TQZ
Place of Origin :
china
MOQ :
1
Price :
USD20000-USD30000
Supply Ability :
500 Units per month
Delivery Time :
30 working days after received the down payment
Packaging Details :
in mude
Engine :
cummins Isde140 30
Color :
white
rated tow lifting weight :
1040kgs
dimension of flat board :
5240x2100mm
Rated towing weight :
3000kgs
name :
wrecker tow truck
Description

road wrecker towing two cars , 3 ton wrecker truck

VEHICLE MODLE JDF5071TQZ
OVERALL DIMENSION(mm) 7420×2320×2540 GVW(Kg) 7490
Cargo body dimension(mm) ×× Rated payload(Kg)
approach/depar ture angle 20/12 Curb weihgt(Kg) 5495
Overhang(front /rear)(mm) 1180/2440 Max speed(km/h) 95
Chassis model EQ1070TJ9AD3
Available engine Engine maker Engine displacement(cc ) Power(Kw)
ISDe140 30 CY4102-C3C CY4102-D3A CY4102-E3C

Dongfeng Cummins Engine Company

Dongfeng Chaoyang Diesel Engine

Dongfeng Chaoyang Diesel Engine

Dongfeng Chaoyang Diesel Engine

4500

3856

3856

3856

103

88

88

91

B140 33 YN38PE-2

Dongfeng Cummins Engine Company

Kunming Yunei Power Company

 3900 3760 103 90
Fuel type diesle Emission Euro 23
Number of axle 2 Number of tire 6
wheelbase 3800 Tire size 8.25-16,7.50-16,8.25R16,7.50R16
Axle load(front/rea r) 3090/4400 Front tread 1835,1750
Number of steel spring leaf(front/rea r) 11/9+7,8/10+7 Rear tread 1640,1586
Special Function
performance

Rated tow lifting weight(kg):1040 ;

Stretch travel range of tow arm(mm):1180

Maximum effective length of tow arm(mm):1300

Maximum traction speed(km/h):40
Specification of flat board

Dimension of flat board(Length*width)(mm):5240*2100

Minimum gradient of flat board(°):10

Work travel range of flat board(mm):2680

Maximum load weight of flat board(kg):3000

The specification of the winch qty(piece):1

Rated towing weight(kg):3000

The length of steel wire rope(m):21

The speed of winch rope(m/min):8
