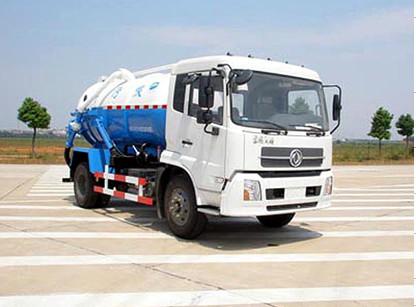

Large Capacity Vacuum Sewage Suction Truck , 10cbm Fecal Suction Truck
Large Capacity Vacuum Sewage Suction Truck , 10cbm Fecal Suction Truck
Specifications
Brand Name :
dongfeng
Model Number :
DFL1120B
Place of Origin :
CHINA
MOQ :
1
Price :
USD30000-USD38000
Supply Ability :
500 Unit per unit
Delivery Time :
30 days after receiving the downpyament
Packaging Details :
in nude
Engine :
Cummins ISDE180 30
Drive mode :
4x2
Overall size :
8600X2500X2830mm
Tank volume :
10m3
Effictive suction length :
≥7-20
Tank lifting time(s) :
≤10
name :
suction sewage truck
Description
Specification
Truck Drive mode 4×2
Chassis DFL1120B
Engine Model CumminsISDe180 30
Type 136/2500
Power/Displacement(Kw/ml) 4500
Type of fuel Diesel
Tyre Size 9.00-20
Air conditioner A/C
Dimensions Overall dimension (mm) 8600×2500×2830
Wheel base (mm) 4700
Front/Rear tread(mm) 1880/1860
Performance Max. speed(Km/h) 90
App./Dep. angel (°) 20/11
Max. gradability (%) 30
Min.turning diameter(m) 19
Min.ground clearance(mm) 240
Mass Payload (Kg) 5930
Curb weight(Kg) 5880
G.V.W (Kg) 12005
Special functions Specifications Tank Volume (m³) 10
Tank overall dimension (mm) 4500×1500
Vacuum Pump Model XD-44
Suitable turning speed(r/m) 500-600
Suitable revolution(min/rpm) 1400
Max.Vacuum Degree(kPa) 93-96
Effictive Suction Length(m) ≥7-20
Fulling time(min) ≤3
Tank lifting time(s) ≤10
Alarm method Electronic alarm
Advantages 1. Enough sewage volume degree.
2. Protecting device to prevent the sewage from seeping into the pump body.
3. Volume pump is driven by hand, easy to operate.
4. Hydraulic pump is working synchronously with the volume pump ,very reliable.
5. Discharging by hydraulic system.
6. Beautiful appearance, easy operation and good performance.

Any requirement do you have ,feel free to contact with us as following :

Sarah Shen

Sales manager

Personal mobile number: 0086 138 0382 3630 (whatsapp&viber)

--------------------------------------------------------------------------------------
Large Capacity Vacuum Sewage Suction Truck , 10cbm Fecal Suction TruckZhengzhou Dongfeng Mid-South Enterprise Co., Ltd

--------------------------------------------------------------------------------------
Add.: No.28, Dongfeng Road, Zhengzhou, Henan, China
Tel.: 0086 371 88883954
Fax: 0086 371 88883974

Skype: Overseas_dongfeng07
Website: www.cn-dfm.com
