8-12m3 Mobile Concrete Mixer Truck , Mix Concrete Truck Capacity M3 With RHD / LHD
8-12m3 Mobile Concrete Mixer Truck , Mix Concrete Truck Capacity M3 With RHD / LHD
Specifications
Brand Name :
Dongfeng
Model Number :
DFL5250
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD56000-USD65000
Supply Ability :
500units/month
Hydraulic Pump :
Italy PMP
Hydraulic Motor :
Italy PMP
Engine :
340hp
Driving type :
6x4
Mixing capacity :
8m3
name :
concrete cement mixer truck
Description

RHD and LHD 8-12m3 Transit Mixer Truck, Concrete mixer trucks

Dimensions Overall dimension (mm) 8840×2500×3930
Wheel base (mm) 3650+1350
Front/Rear tread(mm) 1986/1860
Appr./Depa. angel (°) 30/18
Min. ground cleanrance(mm) 250
Special function Mixing capacity(m³) 8
Angel of inclination of mixing drum(°) 13
Geometric volume(m³) 14.3
Filling ratio(%) 58
Feeding speed(m³/min) ≥3
Discharge speed(m³/min) ≥2
Residual ratio(%) ＜0.8
Collapsed degree range(mm) 40-230
Hydraulic oil pump Rexroth A4VTG090
Hydraulic motor Rexroth AA2FM90
Max peak 45 MPa
System Delivery capacity : 90ml/rev
Hydraulic speed reduction gear PMP (PMB6.5sp)
Max operating torque: 65000 N.m
Reduction gear ratio ratio: 1:120.3
Oil tank Emmegi or Binglun with 18L capactiy

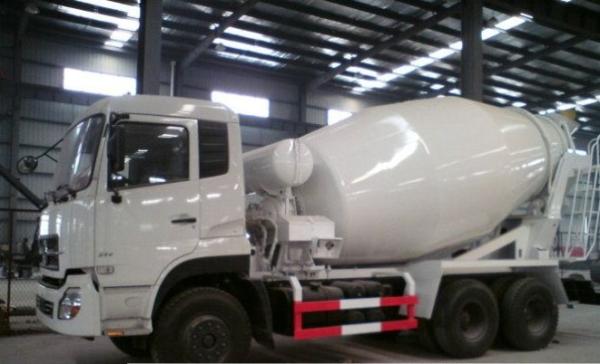

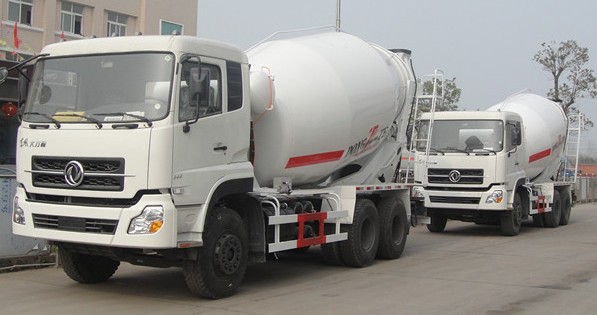

Photos for reference:

8-12m3 Mobile Concrete Mixer Truck , Mix Concrete Truck Capacity M3 With RHD / LHD
