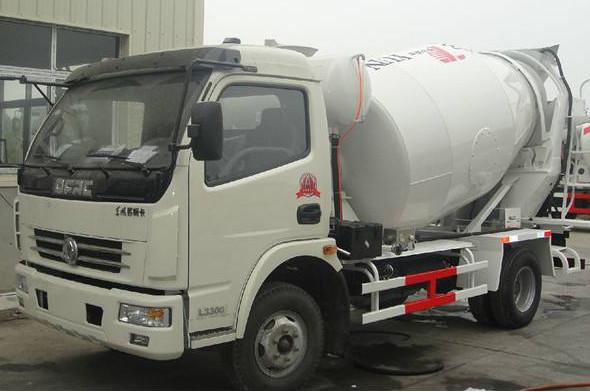

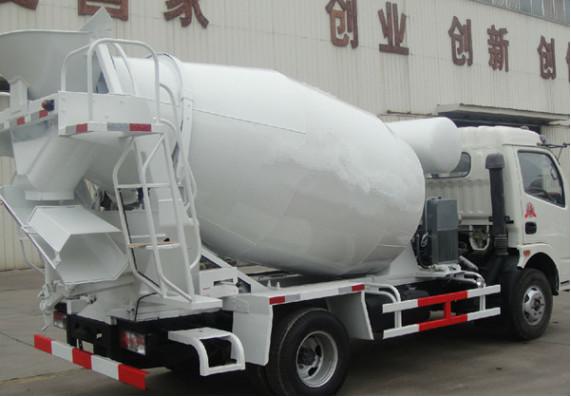

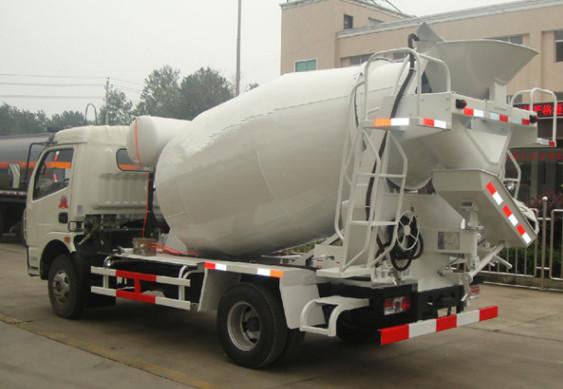

3 M3 Capacity Small Concrete Truck , Dongfeng 4X2 Concrete Cement Mixer Truck
3 M3 Capacity Small Concrete Truck , Dongfeng 4X2 Concrete Cement Mixer Truck
3 M3 Capacity Small Concrete Truck , Dongfeng 4X2 Concrete Cement Mixer Truck
3 M3 Capacity Small Concrete Truck , Dongfeng 4X2 Concrete Cement Mixer Truck
3 M3 Capacity Small Concrete Truck , Dongfeng 4X2 Concrete Cement Mixer Truck
3 M3 Capacity Small Concrete Truck , Dongfeng 4X2 Concrete Cement Mixer Truck
3 M3 Capacity Small Concrete Truck , Dongfeng 4X2 Concrete Cement Mixer Truck
3 M3 Capacity Small Concrete Truck , Dongfeng 4X2 Concrete Cement Mixer Truck
Specifications
Brand Name :
Dongfeng
Model Number :
EQ3095TL
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: USD19,500-20,000
Supply Ability :
500 units/year
Delivery Time :
20 work days
Capacity :
3 m3
Drive mode :
4X2
Wheel base :
3300mm
Color :
white, silver, yellow, blue, green
Brand :
Dongfeng
Steering :
LHD/RHD
Description


Description
Model: EQ3095TL
Engine
Model Cummins B125-33
Type Diesel, Direct Injection,Turbo charged with Intercooler
Max. Engine Output (HP or KW/rpm) 92 KW(125 HP)
Max. Tourque (N.m/rpm): 410 Nm @ 1400-1600 rpm
Cylinder Displacement L/cc 3900ml
Emission: Euro 3
Gear Box MT / Forward 5 & Reverse 1
Model WLY5S550
Suspension Strengthen spring
Type Spring leaf tablet: 9/11+8
Brakes Front&Rear drum,dual-circult service brakding system
Clutch
Type: Single,dry,diaphragm spring clutch⊙350
Overall Dimensions (LxWxH) mm: 5560×2100×2650
axle (Front/Rear)kg: 2800 / 8000
Driving Type: 4×2
Wheel Base (mm): 3300
Min ground clearence (mm): 248
Vehicle Weight
Curb weight (kg): 3800
Pay Load Capacity (kg): 5600
Gross vehicle weight (kg): 9400
Cabin: 1+2 seats / 2 doors
Steering
Type: power steering gear
Wheels & Tyres
Front: Tire Number: 2, Tire Size: 8.25R16
Rear: Tire Number: 2, Tire Size: 8.25R16
Mixing tanker specification
Mixing capacity(m³) 3
tanker material 16MnQ345
Angel of inclination of mixing drum(°) 16-18
Feeding speed(m³/min) 2
Discharge speed(m³/min) 2
Residual ratio(%) ＜0.7
Mixing speed(r/min) 0-18
Transport mixing speed(r/min) 3-4
Water tanker(L) 500
