Specifications
Brand Name :
TARZAN
Model Number :
YHZS50
Certification :
ISO, CCC
Place of Origin :
China
MOQ :
1 unit
Price :
$52000-$65000/unit
Supply Ability :
300 units per month
Delivery Time :
15 days after receipt down payment
Packaging Details :
Container
Product namne :
concrete batch Plant
Type :
Mobile type
Capacity :
50m3/h
Mixer :
JS1000
Cement silo :
50T
Warranty :
12 months
Description

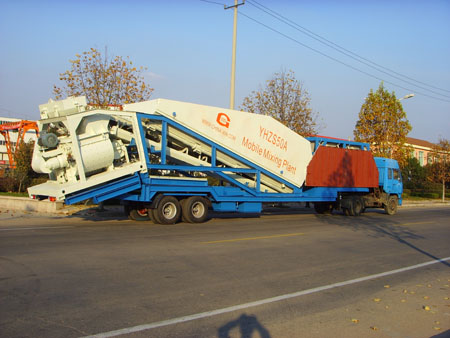

YHZS50 Mobile Concrete Batching Plant with 50m3/h capacity

3.General Technical Parameter
Model YHZ50
Productivity 50 m³/h
Twin Shaft Mixer JS1000
Mixer Volume 1 m³
Mixer Power 30kw
Max. Aggregate Size(broken stone/pebble) 60/80mm
Loading Type of Aggregate to the Mixer Conveyor Belt
Aggregate Storage Hopper 5m³ × 2
Aggregate Weighing 4000kg±2%
Cement Weighing 500kg±1%
Water Weighing 250kg±1%
Additive Weighing 30kg±1%
Control Mode Full-automatic
Discharge Height 3800mm
Total Power 70kw
Total Weight 19000kg
Site Size (L X W X H) (at work) 18850 mm × 4150 mm × 8079mm
Cement Screw LSY219
Cement silo Bolted Type: 100T

4.Components list

1 JS1000 Concrete Mixer 1 Pc
2 PLD1600-2 Concrete Batching Machine 1 Pc
3 Water, Cement and Additive Weighing System 3 Pcs
4 Aggregate Supplying System 1 Pc
5 Air System Air Compressor 3kw 1 Pc
6 Dragged system 1 Pc
7 Control Room 1 Pc
8 One Unit of Spare parts 1 Pc
9 One set of Tools 1 Pc
Optional Parts
Cement silo 50t Dismantle screw parts or Welded steel plate 1 Set
Butterfly Valve Ø 300mm 1 Set
Level Indicator 1 Set
Pad 1 Set
5.Configuration List & Description
1.0 Twin shaft Mixer JS1000 1 Pc
1.1 Main Speed Reducer 1 Pc
1.2 Main motor 1 Pc
1.3 Oil supply system( Manual) 1 Pc
1.4 Pneumatic discharge system 1 Set
1.5 Legs and ladder 1 Pc
1.6 Walking platform and railing 1 Set
1.7 Frame 1 Set
2.0 Aggregate Supplying System 1 Set
2.1 Mixing Part Platform 1 Set
2.2 Large big belt conveyor 1 Set
2.3 Electrical drum 1 Set
2.4 Heavy vertical tensioning device 1 Set
2.5 Sweeper 1 Set
2.6 Large angle belt conveyor, interior girth 1 Set
3.0 Aggregate Batching System PLD1600-2 1 Set
3.1 Belt Width 800 1 Pc
3.2 Motor 7.5kw 1.6m/s 1 Pc
3.3 Measuring Hopper 2500L 1 Pc
3.4 Storage hopper 4*5m3 1 Pc
3.5 Discharge Gate 2 Pcs
3.6 Vibrator 0.37kw 2 Pc
3.7 Cylinder 4V210-8 2 Pcs
3.8 Sensor 1000kg 2 Sets
4.0 Water System Measuring Hopper 250kg 1 Pc
4.1 Sensor 300kg 2 Sets
4.2 Submersible pump 1 Pc
4.3 Manual butterfly valve DN50-125 1 Set
5.0 Cement And Fly Ash Measuring Hopper 500kg 1 Pc
5.1 Sensor 500kg 3 Pcs
5.2 Solenoid valve 4V210-8 1 Pc
5.3 Vibrator 1 Pc
5.4 Pneumatic butterfly valve 1 Pc
6.0 Additive Measuring Hopper 25kg 1 set
6.1 Sensor 50kg 1 pcs
6.2 Pneumatic butterfly valve Dg50 1 pc
6.3 Solenoid valve 4V210-8 1 Pc
7.0 Air System Air Compressor 5.5kw 1 Set
7.1 Pneumatic components 1 Set
7.2 Electrical Component 1 Set
7.3 φ12PU Pipe several meters 1 Set
8.0 Control System 1 Pc
8.1 Control Computer 1 Pc
8.2 Control Platform 1 Pc
8.3 Control Software 1 Pc
8.4 Electrical Component 1 Pc
8.5 Room Structure 1 Pc
8.6 Control Room 1 Pc
9.0 Dragged system 1 Pc
9.1 Steering gear 1 Pc
9.2 Trailer 1 Pc
9.3 Rear axle and shock absorption 1 Pc
9.4 Braking systems, the brake turn indicators 1 Pc
6.Spare Parts List
1 Middle blade of mixer 2 Pc
2 Scaleboard for mixer drum 1 Pc
3 Control system for water supply 2 Pcs
4 AC 220 relay 1 Pc
5 Oil sealing for mixer shaft end 1 Pc
6 DC24V 2 Pcs
7 Oil lubricator 1 set
