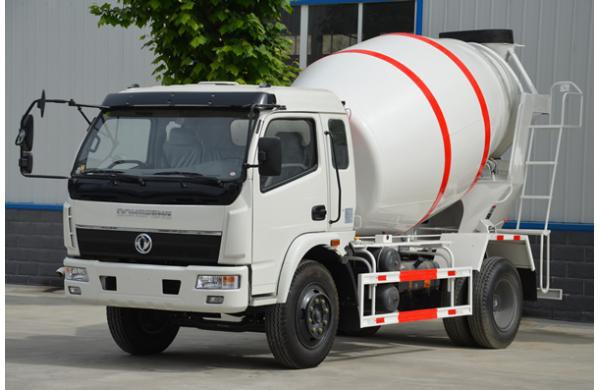

Dongfeng Concrete Batch Truck , 4m3 Capacity Mobile Cement Mixer Trucks
Dongfeng Concrete Batch Truck , 4m3 Capacity Mobile Cement Mixer Trucks
Dongfeng Concrete Batch Truck , 4m3 Capacity Mobile Cement Mixer Trucks
Dongfeng Concrete Batch Truck , 4m3 Capacity Mobile Cement Mixer Trucks
Dongfeng Concrete Batch Truck , 4m3 Capacity Mobile Cement Mixer Trucks
Dongfeng Concrete Batch Truck , 4m3 Capacity Mobile Cement Mixer Trucks
Specifications
Brand Name :
Dongfeng
Model Number :
EQ3060
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: USD24,500 to 25,500
Supply Ability :
500unit/year
Delivery Time :
20 work days
Capacity :
4m3
Drive mode :
4X2
Wheel base :
3600
Color :
White, Red, Yellow, Green, Blue, Silver
Brand :
Dongfeng
Steering :
LHD / RHD
Description
Dongfeng 4m3 Concrete Mixer Truck SPECIFICATION
Model EQ3060
Cabin Single Cab
Dimension(mm)
Outer 6800*2300*3300
Wheel Base(mm) 3600
Tread(F/R)(mm) 1750/1586
F/R suspension 1210/1960
Fram 250 x (7+4)mm
Weight(kg)
Curb Weight(kg) 7500
Payload(Kg) 7000
G.V.W(kg) 14500
Engine
Engine type Cummins EQB140-33
Emission standard Euro III
Power 103/2500
Torque 502/1500
Bore*Stroke(mm) 107*124
Displacement(ml) 3900
Performance
Max Speed(kg/h) 105
Max Gradeability 30
Min Turning Radius(m) 7.5
Power steering Equipped
Brake air
Battery 24V
Tire 8.25R20
Gearbox WLY550, Forward 5 & Reverse 1
Axle F3.6T/R9T
Cabin Captain style, 1+2 seats
Air conditioner Equipped
Centrul Lock and Electric Window Equipped
Mixing specification
Mixing capacity(m³) 4
tanker material 16MnQ345
Angel of inclination of mixing drum(°) 16-18
Feeding speed(m³/min) 2
Discharge speed(m³/min) 2
Residual ratio(%) ＜0.7
Mixing speed(r/min) 0-18
Transport mixing speed(r/min) 3-4
Water tanker(L) 500.00
