Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
Specifications
Brand Name :
ZOOMLION
Model Number :
ZLJ5292THB
Certification :
ISO90001.SAE
Place of Origin :
Hunan, China (Mainland)
MOQ :
1unit
Price :
40000USD-58000USD
Supply Ability :
10units/month
Delivery Time :
10days after payment
Packaging Details :
nude
Condition :
used
Year :
2008
Power Type :
Diesel
Warranty :
One Month
After-sales Service Provided: :
Engineers available to serve overseas
Product name: :
Zoomlion Concrete pump Truck
Other name :
Used Truck Mounted Concrete pump
Chassis model :
Mercedes Benz
Description

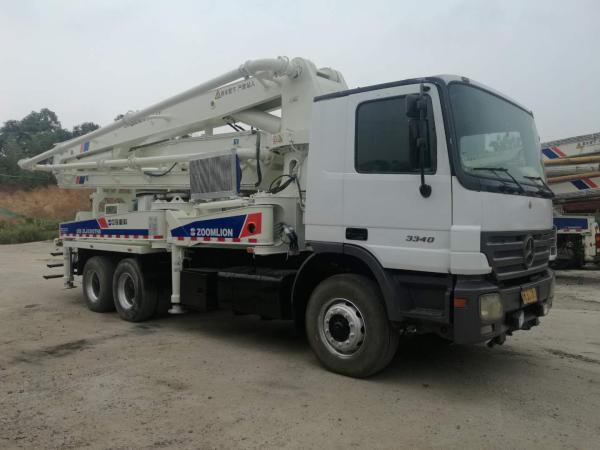

zoomlion / sany 38m 37m 46m 47m Used Truck Mounted Concrete Pump and Concrete Pump Truck
Name Unit Parameter
HDT5281THB-37/4 HDT5291THB-37/4 HDT5291THB-39/4
Pump Specification output in theory m3/h 125 125 125
index of the pump carry capacity Mpa.m3/h 586 586 586
theoretic pumping pressure Mpa 8.5 8.5 8.5
bucket volume L 700 700 700
height of top surface of bucket mm 1370 1370 1370
model of dirstribution valve 　 S Valve S Valve S Valve
max. operation radius m 32.6 32.6 34.7
max. operation height m 36.6 36.6 38.7
max. operation depth m 25.5 25.5 27
open height of boom mm 8450 8450 8830
distance between front landing legs mm 7058 7058 6800
distance between rear landing legs mm 6848 6848 7000
distance between front & rear landing legs mm 6790 6790 7432
diameter of delivery pipe mm 125 125 125
length of hose pipe m 4 4 4
rotary range of boom 　 370° 365° 365°
quantity of boom 　 4 4 4
rotary angle of each boom ° 92/180/180/270 92/180/180/270　　　　　　　　 91/180/180/180/270
wire line control distance m 33 33 33
romote control distance m 200 200 200
Chassis and Engine Specification max. speed km/h 85 90 90
min. turn radius mm 8800 8800 8800
brake distance m 7 7 7
approach angle ° 16 16 16
departure angle ° 11 11 11
chassis model 　 ISUZU CYZ51Q HOWO ZZ5307N4647C HOWO ZZ5307N4647C
wheel base between the first & the second axle mm 4595 4600 4600
wheel base between the second & the third axle mm 1310 1350 1350
front tread mm 2065 2022 2022
rear tread mm 1850 1830 1830
max. engine output power kw 265(1800r/min) 247(2200r/min) 247(2200r/min)
max. engine output torque n.m 1422(1100r/min) 1350(1100-1600r/min) 1350(1100-1600r/min)
max, gradient ability % 37 35 35
fuel consumption L/100km 36.6 34 34
out dimension(L×W×H) mm 12000×2490×3800 12000×2490×3850 12500×2490×3950
total weight kg 28000 29000 29500
ister truck mounted concrete pump putmzeister
Second Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48mSecond Hand Concrete Mixer Trucks / Concrete Pump Truck 37m 38m 47m 48m
