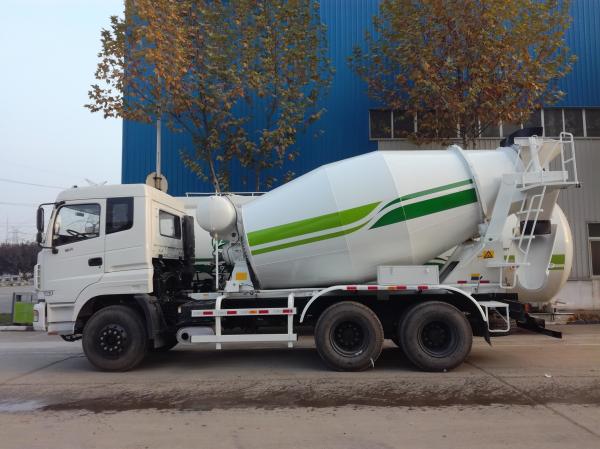

6x4 Heavy Duty Concrete Mixer Truck 8 - 12m3 Capacity With Cummins Engine
6x4 Heavy Duty Concrete Mixer Truck 8 - 12m3 Capacity With Cummins Engine
Specifications
Brand Name :
Dongfeng
Model Number :
DFL5250
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD5600-USD6000
Delivery Time :
30 working days after down payment
mix capacity :
8-12m3
Horsepower :
340hp
Engine :
Cummins engine
driving type :
6x4
Hydraulic motor/pump :
Italy brand
name :
concrete transport truck
Description

brand new 6x4 heavy Concrete Mixer Truck, 8-12m3 mixing capacity truck

Dimensions Overall dimension (mm) 8840×2500×3930
Wheel base (mm) 3650+1350
Front/Rear tread(mm) 1986/1860
Appr./Depa. angel (°) 30/18
Min. ground cleanrance(mm) 250
Special function Mixing capacity(m³) 8
Angel of inclination of mixing drum(°) 13
Geometric volume(m³) 14.3
Filling ratio(%) 58
Feeding speed(m³/min) ≥3
Discharge speed(m³/min) ≥2
Residual ratio(%) ＜0.8
Collapsed degree range(mm) 40-230
Hydraulic oil pump Rexroth A4VTG090
Hydraulic motor Rexroth AA2FM90
Max peak 45 MPa
System Delivery capacity : 90ml/rev
Hydraulic speed reduction gear PMP (PMB6.5sp)
Max operating torque: 65000 N.m
Reduction gear ratio ratio: 1:120.3
Oil tank Emmegi or Binglun with 18L capactiy

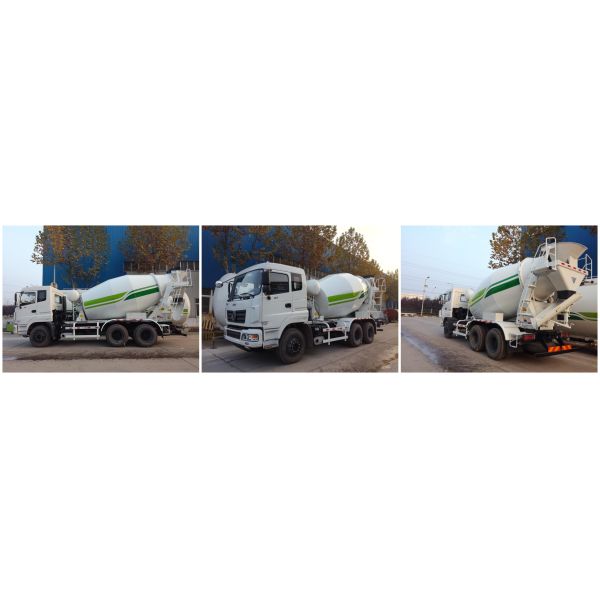

Pictures for Reference:

6x4 Heavy Duty Concrete Mixer Truck 8 - 12m3 Capacity With Cummins Engine
