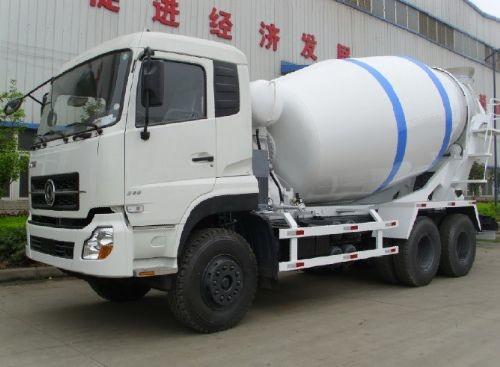

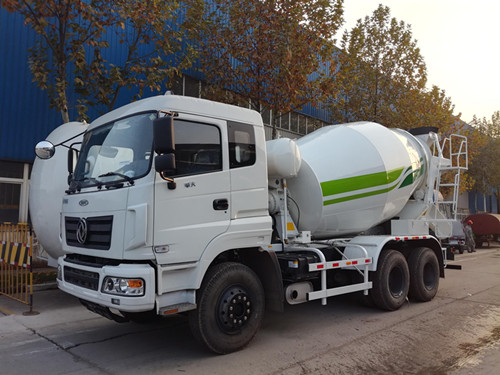

Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck
Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck
Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck
Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck
Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck
Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck
Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck
Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck
Specifications
Brand Name :
Dongfeng
Place of Origin :
China
MOQ :
1unit
Price :
USD40000-80000/unit
Delivery Time :
30 days after receive deposit
Product name :
Concrete Mixer Truck
Capacity :
10m³
Color :
According to customer's requirement
Engine :
Cummins
Hydraulic pump :
Rexroth brand
Gearbox :
FAST gearbox
Description

Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck

Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck

Specification
Drive mode 6×4
Engine Model L340 30
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 250/2200
Max. torque(N.m/rpm) 1350/1400
Displacement(ml) 8900
Type of fuel Diesel
Compression ratio (16.6±0.5):1
Cab D310-S1 single berth
Gearbox Model 9JS150T-B
Max.torque(N.m) 1500
Clutch Φ430mm diaphragm spring clutch
Frame Height×Width× Thickness(mm) 300×90×(8+6)
Frame width 940 (front ), Frame width 810 ( rear )
Tyre Size 11.00-20
Air conditioner A/C
Dimensions Overall dimension (mm) 9040×2500×3930
Wheel base (mm) 3800+1350
Front/Rear tread(mm) 1986/1860
Appr./Depa. angel (°) 30/18
Min. ground cleanrance(mm) 250
Mass Payload(Kg) 11805,11870
Curb weight(Kg) 13000
G.V.W(Kg) 25000
Performance Max. speed(Km/h) 80
Max. gradeability(%) 40
Min. turning diameter(m) 23
Fuel consumption(L/100Km) 36
Special function Mixing capacity(m³) 10
Angel of inclination of mixing drum(°) 13.5
Geometric volume(m³) 15.96
Filling ratio(%) 58
Feeding speed(m³/min) ≥3
Discharge speed(m³/min) ≥2
Residual ratio(%) ＜0.2
Collapsed degree range(mm) 40-210
Hydraulic pump MA4VG90, Italy
Hydraulic motor MF090W, Italy
Decelerator 577L3131AX1A, Italy
