DFL 1311 8x4 Cargo Van Truck LHD / RHD Lattice Fence Truck For Animal Transportation
DFL 1311 8x4 Cargo Van Truck LHD / RHD Lattice Fence Truck For Animal Transportation
DFL 1311 8x4 Cargo Van Truck LHD / RHD Lattice Fence Truck For Animal Transportation
DFL 1311 8x4 Cargo Van Truck LHD / RHD Lattice Fence Truck For Animal Transportation
DFL 1311 8x4 Cargo Van Truck LHD / RHD Lattice Fence Truck For Animal Transportation
DFL 1311 8x4 Cargo Van Truck LHD / RHD Lattice Fence Truck For Animal Transportation
DFL 1311 8x4 Cargo Van Truck LHD / RHD Lattice Fence Truck For Animal Transportation
DFL 1311 8x4 Cargo Van Truck LHD / RHD Lattice Fence Truck For Animal Transportation
Specifications
Brand Name :
Dongfeng
Model Number :
DFL1131A3
Place of Origin :
China
MOQ :
1 unit
Price :
USD35000-490000/unit
Delivery Time :
30 days after receive deposit
Packaging Details :
Nude packaging
Product name :
Dongfeng 8x4 dump truck
Driving mode :
8x4, LHD/RHD
Color :
Red, White, etc
Curb weight :
12500kg
Payload :
18900kg
G. V. W :
30535kg
Description

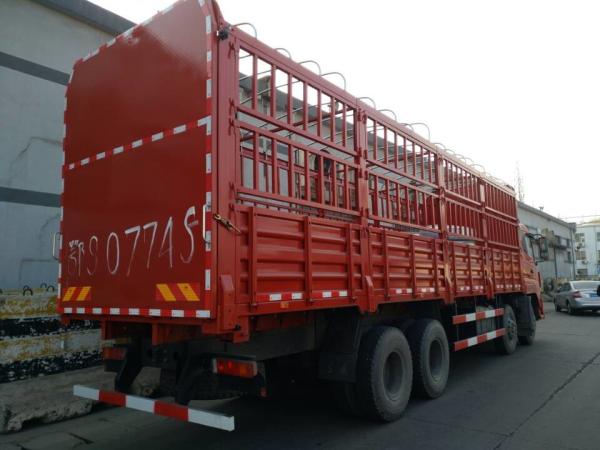

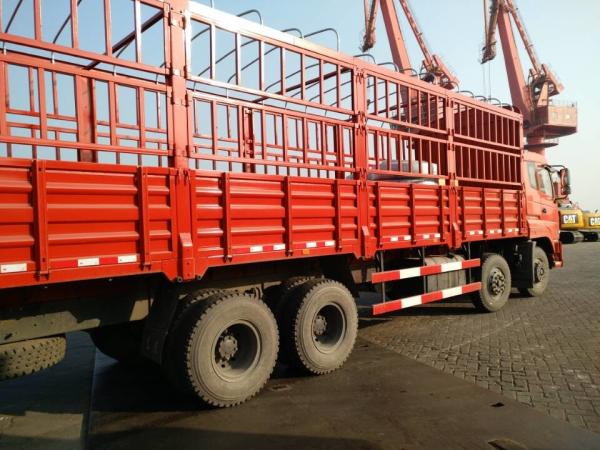

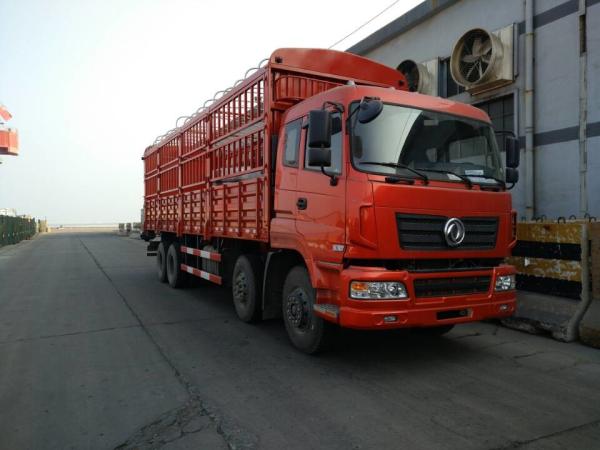

Dongfeng DFL1311 8x4 LHD / RHD Lattice Fence truck for Transferring Goods, Fruits, Vegetables, Animals

Drive mode 8×4
Engine Model Cummins C260 30
Type 6-cylinder in line, air cooling, inter cooling, bulit in EGR
Max. power(Kw/rpm) 191/2200
Max. torque(N.m/rpm) 1025/1300
Bore /Stroke(mm) 114×135
Displacement(ml) 8300
Type of fuel Diesel
Compression ratio 18:01
No. of valves 2
Cab D310-H1 Double berth
Capacity 3 persons
Gearbox Type Fast 9JS150T-B
Max. torque(N.m) 1300
Gear ratio 9 forward &1reverse 12.65 8.38 6.22 4.57 3.4 2.46 1.83 1.34 1.00
Clutch Φ430mm diaphragm spring clutch
Frame H×W× T(mm) 300×80×(8+4)
No. of Spring leaves 8/8/10
Tyre Size 11.00R20
Air conditioner A/C
Dimensions Outer dimension (mm) 11980×2500×3200,3280
Carriage dimension(mm) 9500×2400×800
Wheel base (mm) 1950+4200+1350
Front/Rear tread(mm) 2040/2040,1860/1860
App./Dep. angel (°) 28/12
Performance Max. speed(Km/h) 90
Fuel consumption(L/100Km) 35
Mass Payload (Kg) 45000
Curb weight(Kg) 12505
G.V.W (Kg) 30600
Additional Requiremetns Tarpaulin roof Suitable inches for the Lattice truck and the same material as the Millitary truck
Hydraulic Ramp Platform height not more than 1.5 meters
