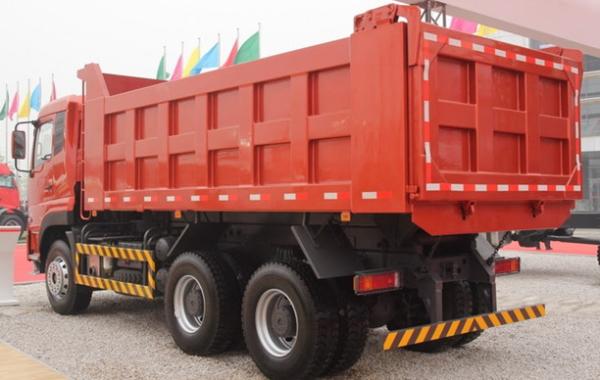

DongFeng Mining Dump Truck 6X4 Drive Model Red Color With 340HP Cummins Engine
DongFeng Mining Dump Truck 6X4 Drive Model Red Color With 340HP Cummins Engine
DongFeng Mining Dump Truck 6X4 Drive Model Red Color With 340HP Cummins Engine
DongFeng Mining Dump Truck 6X4 Drive Model Red Color With 340HP Cummins Engine
Specifications
Brand Name :
DongFeng
Model Number :
DFS3258
Certification :
ISO, GCC, CE,
Place of Origin :
China
MOQ :
1
Price :
USD$43680.00 each unit
Payment Terms :
L/C, T/T
Supply Ability :
100 unit each month
Delivery Time :
25-30 days
Packaging Details :
nude
Color :
Red
Engine :
Cummins
Horsepower :
340
name :
6x4 dump truck
Gearbox :
fast
Axle :
DANA
Description

DongFeng Mining Dump Truck 6X4 Drive Model Red Color With 340HP Cummins Engine

RHD Dongfeng Dump Truck DFS3258GL1
Specification
Drive mode 6×4
Engine Model Cummins L340 30
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 250/2200
Max. torque(N.m/rpm) 1350/1400
Displacement (ml) 8900
Type of Fuel Diesel
Compression ratio (16.6±0.5):1
Cab D310-S1 Single berth
Capacity 3 persons
Gearbox Type 12JS160T
Max. torque / Rated speed (N.m/rpm) 1600/2600
Gear ratio 12 forward & 2reverse 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 /14.86 3.33
Clutch Φ430mm diaphragm spring clutch
Frame Height×Width× Thickness(mm) 300×90×(8+8)
Frame width 940 (front ), Frame width 860 ( rear )
No of Spring leaves 10/12
Tyre Size 12.00R20
Air conditioner A/C
Dimensions Overall dimension (mm) 8350×2500×3500
Inner dimension (mm) 5300x2300x1500 (Bottom: 8mm; Side: 6mm)
Wheel base (mm) 3800+1450
Front/Rear tread(mm) 2040/1850
App./Dep. angel (°) 30/26
Performance Max. speed (km/h) 85
Max. gradeability(%) 30
Min. turning diameter (m) 16.5
Alex(DANA) Front Alex Loading Weight(Kg) 7000
Front Alex Loading Weight(Kg) 13000x2
Mass Payload (Kg) 33,800
Curb weight (Kg) 13,910
G.V.W. (Kg) 47,710
