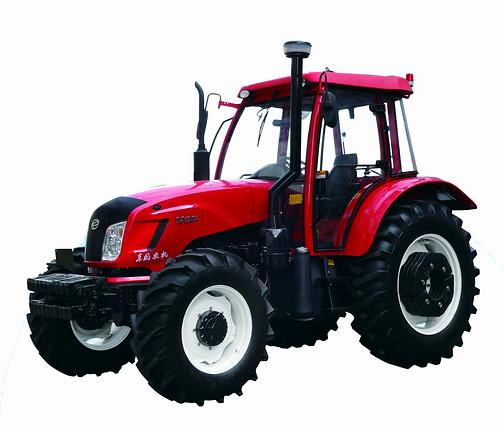

Professional Four Wheel Tractor DF-1254 125 HP 4WD Farm Tractor For Agriculture
Professional Four Wheel Tractor DF-1254 125 HP 4WD Farm Tractor For Agriculture
Specifications
Brand Name :
DONGFENG
Model Number :
DF-1254
Place of Origin :
CHINA
MOQ :
4
Price :
FOB Shanghai USD30,120.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000
Delivery Time :
20 DAYS
Model :
DF-1254
Drive Type :
4WD
Rated Speed(rpm) :
2300
name :
4WD garden tractors
Description

Tractor Parameters Model DF-1254
Drive Type 4WD
Overall Dimensions L×W×H(mm): 4820×2327×3000
Wheel Track(mm) Front 1860
Rear 1830
Wheel Base(mm) 2665
Ground Clearance (mm) 478
Rated Traction Force(N) 27000
Construction Mass(kg) 4375
Min. Turning Radius(m) 4.3
Speed range (km/h) Forward 1.9, 2.9, 3.6, 5.8, 4.3, 6.6,
8.3, 13.4, 9.5, 14.6, 18.3, 29.6
Reverse 4.5, 7.0, 8.8, 14.2
Engine Specifications Model LR6B5-T67X2Q-U2
Type 6-cylinder, Vertical, in-line cylinder arrangement, Radiator cooling, 4-stroke cycle, direct injection
Rated Power(kW) 92
Fuel consumption (g/kW/h) ≤ 242
Rated Speed(rpm) 2300
Bore ×Stroke(mm) 108×135
Total Displacement(L) 7.42
Drive System Clutch LUK, Dual function, Independent type
Gear Box (3+1)×4 Sliding gear shift
Main Drive One Pair of Spiral Bevel Gears
Differential Obturation, four bevel gears
Differential Lock Mesh gear
Final Transmissions Planetary reduction gear
Traveling Mechanism Tire Front 14.9-26
Rear 18.4-38
Steering Gear Full hydraulic power steering
Brake Oil immersed multi-plate disc
Hydraulic Lifting Capacity at 610 mm Behind Lift Point(kg) 2600
System 3-Point Suspension Category: Ⅱ
P.T.O. Shaft Rotating Speed(rpm) 540/1000
Spline Size 6-ф35 Rectangular Spline
