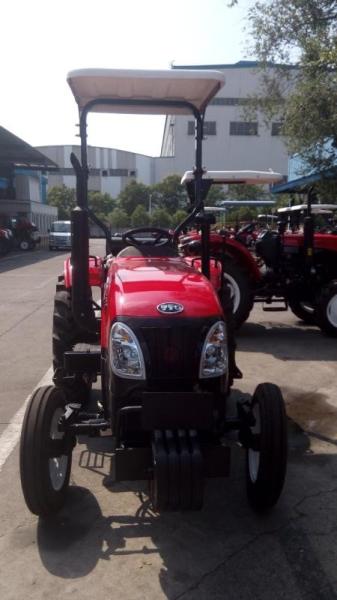

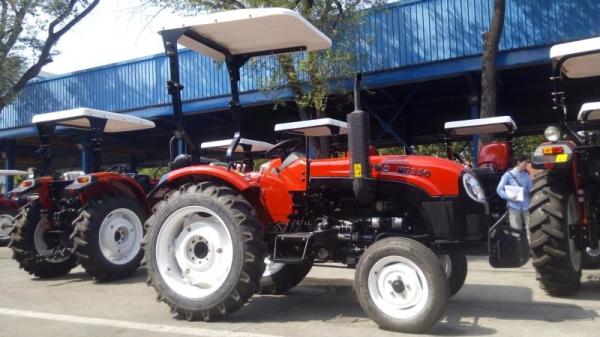

Dongfeng 35 Horse Tractor / 2 Wheel Drive Tractor Easy Operation With Sunshade
Dongfeng 35 Horse Tractor / 2 Wheel Drive Tractor Easy Operation With Sunshade
Dongfeng 35 Horse Tractor / 2 Wheel Drive Tractor Easy Operation With Sunshade
Dongfeng 35 Horse Tractor / 2 Wheel Drive Tractor Easy Operation With Sunshade
Dongfeng 35 Horse Tractor / 2 Wheel Drive Tractor Easy Operation With Sunshade
Dongfeng 35 Horse Tractor / 2 Wheel Drive Tractor Easy Operation With Sunshade
Dongfeng 35 Horse Tractor / 2 Wheel Drive Tractor Easy Operation With Sunshade
Dongfeng 35 Horse Tractor / 2 Wheel Drive Tractor Easy Operation With Sunshade
Specifications
Brand Name :
Dongfeng
Model Number :
DF-350
Place of Origin :
China
MOQ :
1unit
Product name :
agriculture farm tractors / small farm tractors
Power :
35HP
Driving mode :
2 wheels drive
mddel :
DF-350
Description

Dongnfeng 35HP Farm Tractor With Sunshade

Dongfeng 35Hp Tractor 　 　
Tractor Parameters Model DF-350 DF-354
Drive Type 2WD 4WD
Overall Dimensions L×W×H(mm): 3290×1485×2030(Height to steering wheel) 3370×1500×1620(Height to steering wheel)
Wheel Track(mm) Front 1200 1200
Rear 1100(Usually use),1200,1300,1400 1100(Usually use),1200,1300,1400
Wheel Base(mm) 1735 1739
Ground Clearance (mm) Under Front Axle 358 358
Under Rear Axle 378 378
Rated Traction Force(N) (In Paddy Fields/In Dry Fields) 5160/7230 5160/7230
Construction Mass(kg) 1290 1385
Min. Turning Radius(m) 2.8 2.8
Speed range (km/h) Forward 1.66~30.68 1.74~30.68
Reverse 2.196~11.36 2.26~11.70
Speed range with Shuttle shift gear (km/h) Forward 1.5~34.7 1.5~34.7
Reverse 1.5~34.7 1.5~34.7
Engine Specifications Model TY395 TY395
Type 3-cylinder,Upright inline cylinder 3-cylinder,Upright inline cylinder
12-hour Rated Power(kw/hp) 25.80/35.0 25.80/35.0
Fuel consumption (g/kW/h) ≤251.6 ≤251.6
Rated Speed(rpm) 2400 2400
Bore ×Stroke(mm) 95×105 95×105
Total Displacement(L) 2.23 2.23
Drive System Clutch Linkage type dual-function clutch Linkage type dual-function clutch
Gear Box (4+1)×2, plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission (4+1)×2, plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission
Main Drive One Pair of Spiral Bevel gears One Pair of Spiral Bevel gears
Differential Bevel gears Bevel gears
Differential Lock Jaw lock Jaw lock
Final Transmissions Spur gear, external gearing Spur gear, external gearing
Traveling Mechanism Tire Front 7.5-16 7.5-16
Rear 12.4-24 12.4-24
Steering Gear Hydraulic streering Hydraulic streering
Brake Disk type Disk type
Hydraulic Lifting Capacity at 610 mm Behind Lift Point(kg) 580 580
System 3-Point Suspension Category:I Category:I
P.T.O. Shaft Rotating Speed (rpm) 540/1000 540/1000
Spline Size 6-φ35 Rectangular spline 6-φ35 Rectangular spline
