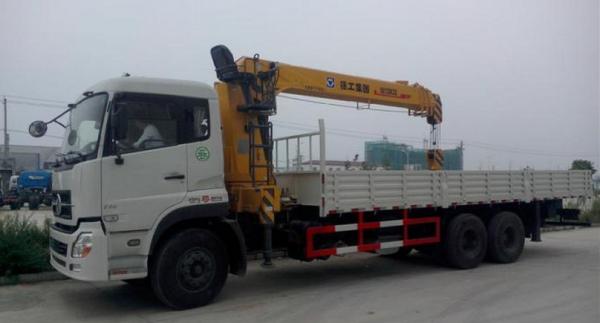

12 ton boom truck/ truck mounted crane/ lifting crane
12 ton boom truck/ truck mounted crane/ lifting crane
12 ton boom truck/ truck mounted crane/ lifting crane
12 ton boom truck/ truck mounted crane/ lifting crane
12 ton boom truck/ truck mounted crane/ lifting crane
12 ton boom truck/ truck mounted crane/ lifting crane
12 ton boom truck/ truck mounted crane/ lifting crane
12 ton boom truck/ truck mounted crane/ lifting crane
Specifications
Brand Name :
DONGFENG
Model Number :
DFL1250A9
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: USD60,000 to 70,000
Supply Ability :
300units/year
Delivery Time :
25 working days
Lifting weight :
12ton
Drive mode :
6X4
Engine :
Cummins
Horse power :
245hp
Description

 Drive mode 6×4
Truck Chassis Model DFL1250A9
Engine Model Cummins C245 20
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 180/2200
Max. torque(N.m/rpm) 1025/1400
Bore/Stroke(mm) 114×135
Displacement(ml) 8300
Type of fuel Diesel
Compression ratio (18±0.5):1
No. of valves 2
Dimensions Overall dimension (mm) 11980×2500×3750
Wheel base (mm) 5350+1300
Front/Rear tread(mm) 1986/1860
Mass Payload (Kg) 17000
Curb weight(Kg) 14990
G.V.W (Kg) 31990

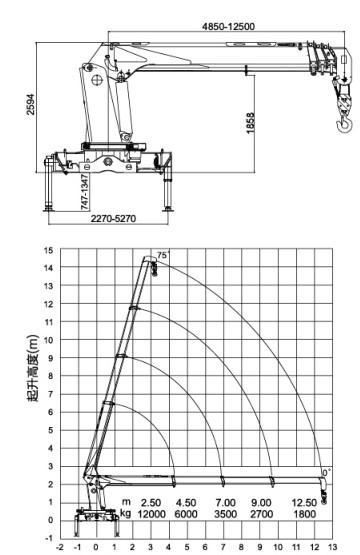

Crane (XCMG 12T 4section) Crane Weight (Kg) 4200
Max. Lifting Capacity (Kg) 12000
Max. Lifting Moment (T.M) 30
Lifting Capacity/Working Radius (Kg/m) 12000/2.5
6000/4.8
2700/9.0
1800/12.5
Max. Working Radius (m) 12.5
Max. Working Height (m)

14.5
