4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
Specifications
Brand Name :
Dongfeng
Model Number :
DFD1120B
Place of Origin :
China
MOQ :
1 unit
Price :
US$40000-US$45000
Supply Ability :
500unit/month
Delivery Time :
30 days after the deposit
Packaging Details :
nude
Truck type :
Truck with crane
Crane lifting capacity :
5ton
Horsepower :
180hp
Wheelbase :
4700mm
driving type :
4x2
overall dimension :
8600×2500×3200mm
Description

4X2 high quality truck mouned crane, 5 ton lifting crane truck

Specification:

Truck Drive mode 4×2
Chassis DFD1120B
Engine Model Cummins 180 30
Type 4-cylinder in line, turbocharging, electrical control common-rail engine
Max. power(Kw/rpm) 136/2500
Max. torque(N.m/rpm) 650/1200-1700
Bore /Stroke(mm) 107×124
Displacement(ml) 4500
Type of fuel Diesel
Compression ratio 17.3:1
Dimensions Overall dimension (mm) 8600×2500×3200
Wheel base (mm) 4700
Front/Rear tread(mm) 1880/1860
Mass Payload (Kg) 5930
Curb weight(Kg) 5880
G.V.W (Kg) 12005
Crane Crane Weight (Kg) 2120
Max. Lifting Capacity (Kg) 5000
Max. Lifting Moment (T.M) 12.5
Lifting Capacity/Working Radius (Kg/m) 1050/8.50
1500/6.000
2940/3.500
Installation Space (mm) 900
Rotation Angle º 360

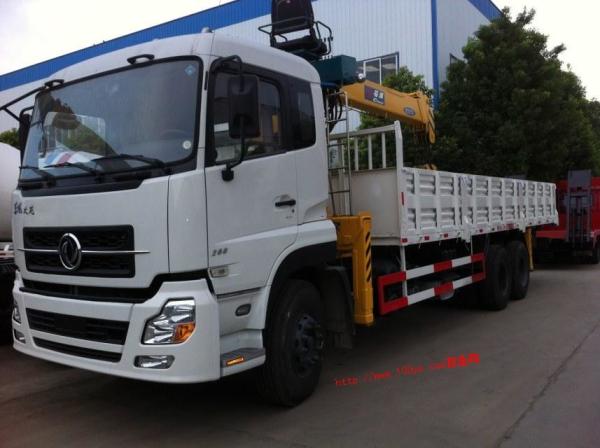

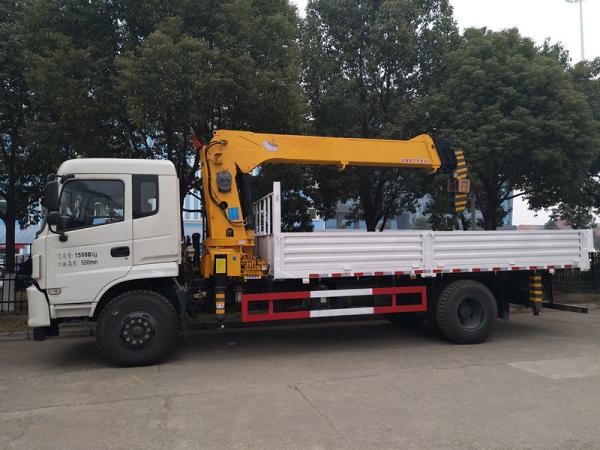

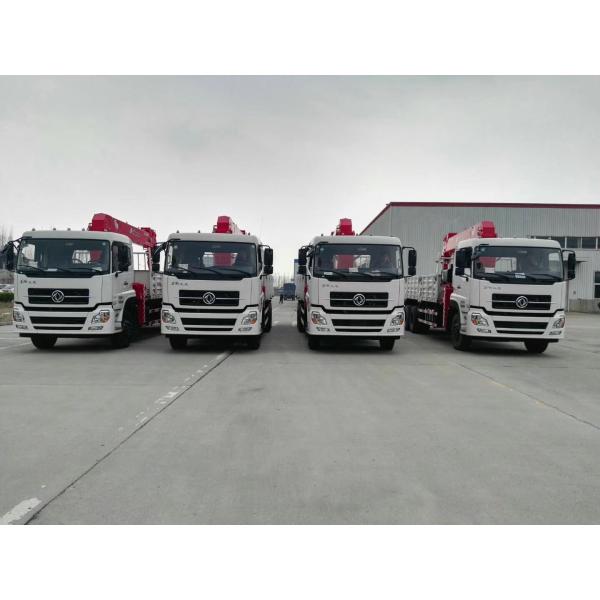

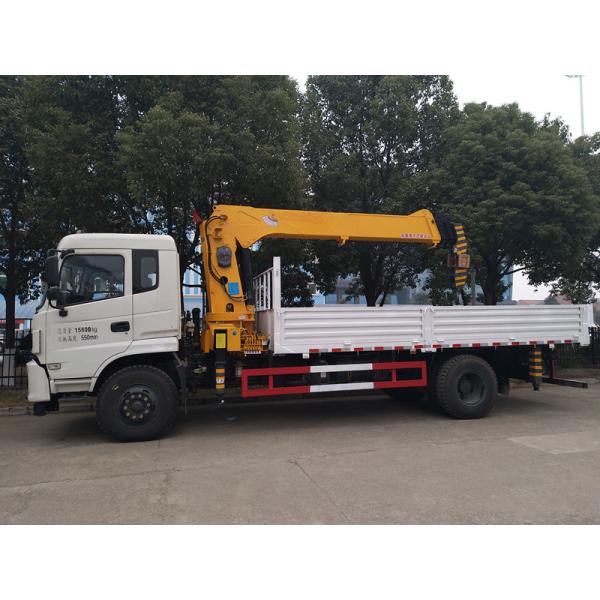

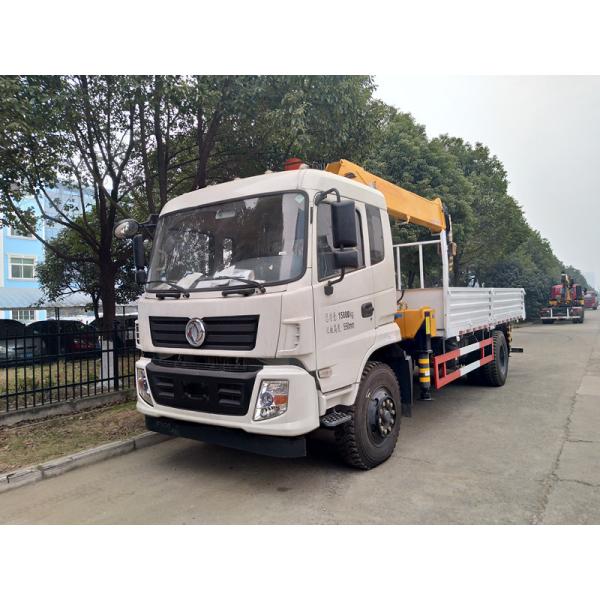

Photos for reference:

4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase

4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase

4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
