Specifications
Brand Name :
DONGFENG
Model Number :
DFL1250A9
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
FOB Shanghia: USD59,999~69,999/unit
Supply Ability :
1000 units /year
Delivery Time :
20 work days
Drive mode :
6X4
Engine Model :
Cummins C245
Emission standard :
Euro III
Horse power :
245hp
Crane brand :
XCMG
Lifting capacity :
12 ton
Payload :
17,000kg
Overall dimension :
11980×2500×3750mm
Description

12 TON TRUCK MOUNTED CARNE

Advantages:

1, It adopts Cummins engine C245 which with high performance in stability and durability.

2, It with strong lifting capacity of XCMG 12 ton crane.

3, It adopts advance design in the appearance of the truck chassis.

Specification:

Drive mode 6×4
Truck Chassis Model DFL1250A9
Engine Model Cummins C245 30
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 180/2200
Max. torque(N.m/rpm) 1025/1400
Bore/Stroke(mm) 114×135
Displacement(ml) 8300
Type of fuel Diesel
Compression ratio (18±0.5):1
No. of valves 2
Dimensions Overall dimension (mm) 11980×2500×3750
Wheel base (mm) 5350+1300
Front/Rear tread(mm) 1986/1860
Mass Payload (Kg) 17000
Curb weight(Kg) 14990
G.V.W (Kg) 31990
Crane (XCMG 12T 4section) Crane Weight (Kg) 4200
Max. Lifting Capacity (Kg) 12000
Max. Lifting Moment (T.M) 30
Lifting Capacity/Working Radius (Kg/m) 12000/2.5
6000/4.8
2700/9.0
1800/12.5
Max. Working Radius (m) 12.5
Max. Working Height (m) 14.5

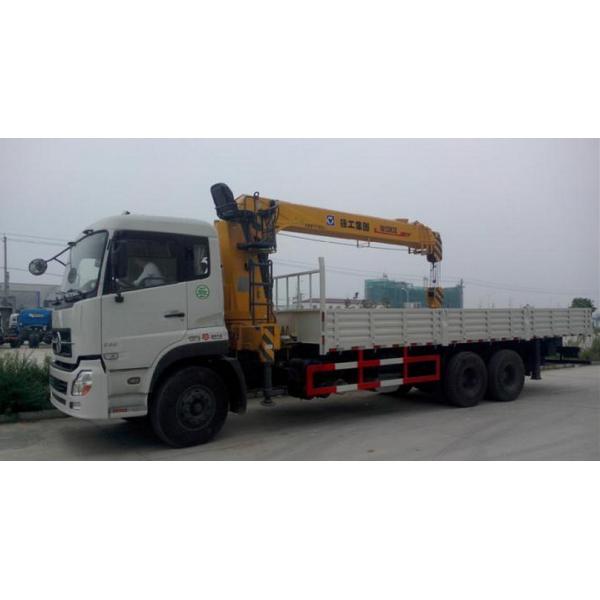

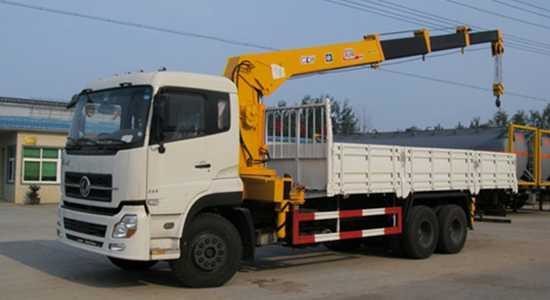

Photos:

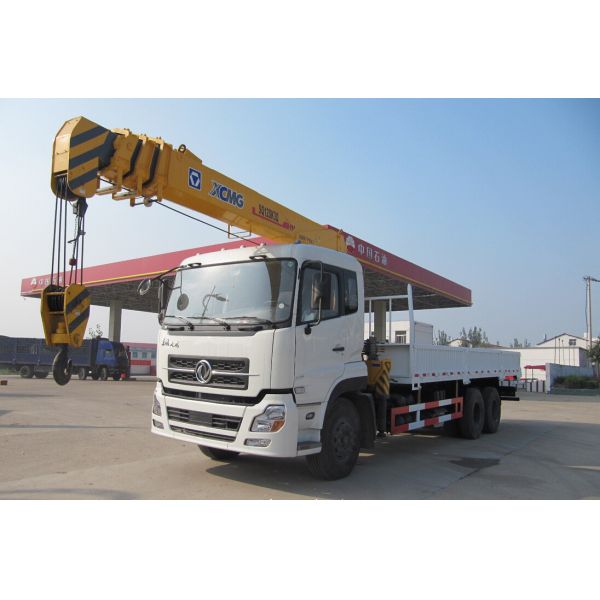

Strong crane arm with XCMG brand.

245hp Mobile Truck Mounted Crane Truck Loader Crane Lifting Capacity 12 Ton245hp Mobile Truck Mounted Crane Truck Loader Crane Lifting Capacity 12 Ton245hp Mobile Truck Mounted Crane Truck Loader Crane Lifting Capacity 12 Ton
