6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
Specifications
Brand Name :
Dongfeng
Model Number :
DFL5250
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD56000-USD65000
Supply Ability :
500set/month
Delivery Time :
30 working days after down payment
Capacity :
8m3
driving type :
6x4
wheelbase :
3650+1350 mm
Hydraulic oil pump :
Rexroth A4VTG090
Hydraulic motor :
Rexroth AA2FM90
reduction gear :
PMP (PMB6.5sp)
water tanker :
400L
name :
concrete mixing transport trucks
Description

12m3 concrete mixer truck , 6x4 concrete mixer truck for Sri Lanka

Dimensions Overall dimension (mm) 8840×2500×3930
Wheel base (mm) 3650+1350
Front/Rear tread(mm) 1986/1860
Appr./Depa. angel (°) 30/18
Min. ground cleanrance(mm) 250
Special function Mixing capacity(m³) 8
Angel of inclination of mixing drum(°) 13
Geometric volume(m³) 14.3
Filling ratio(%) 58
Feeding speed(m³/min) ≥3
Discharge speed(m³/min) ≥2
Residual ratio(%) ＜0.8
Collapsed degree range(mm) 40-230
Hydraulic oil pump Rexroth A4VTG090
Hydraulic motor Rexroth AA2FM90
Max peak 45 MPa
System Delivery capacity : 90ml/rev
Hydraulic speed reduction gear PMP (PMB6.5sp)
Max operating torque: 65000 N.m
Reduction gear ratio ratio: 1:120.3
Oil tank Emmegi or Binglun with 18L capactiy

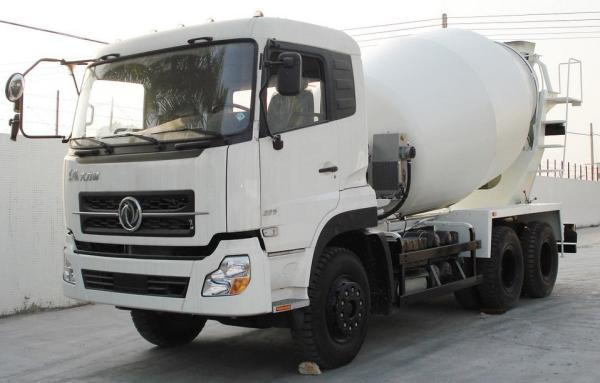

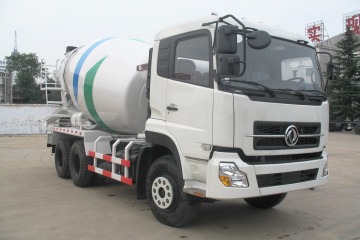

Photos for reference

6x4 12m3 Mobile Concrete Mixer Truck DFL 5250 With 400L Water Tanker
