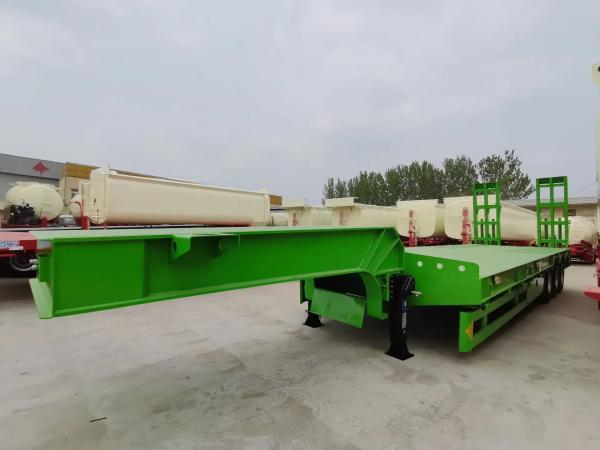

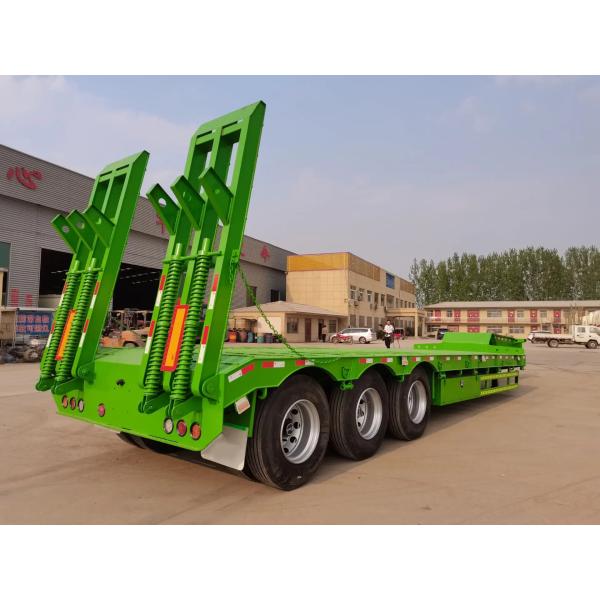

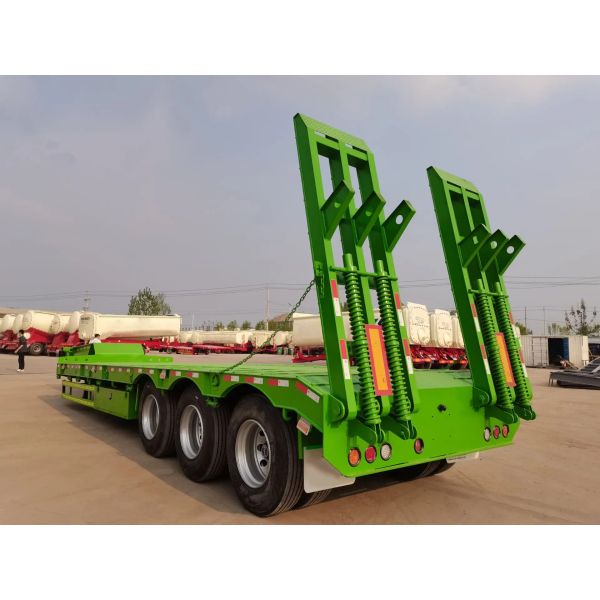

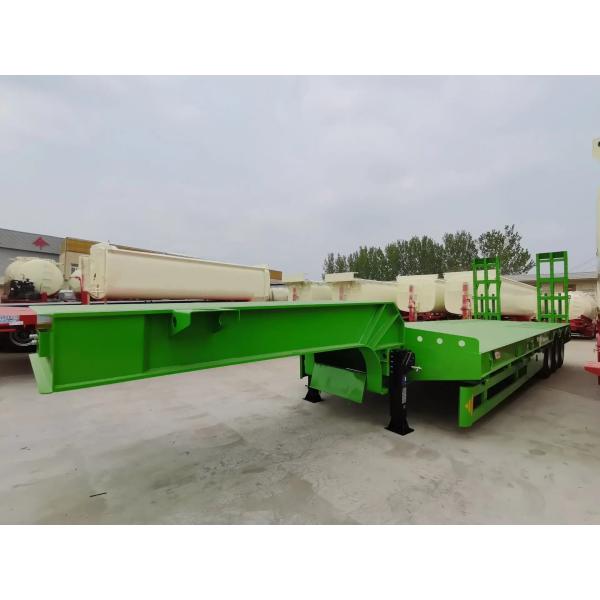

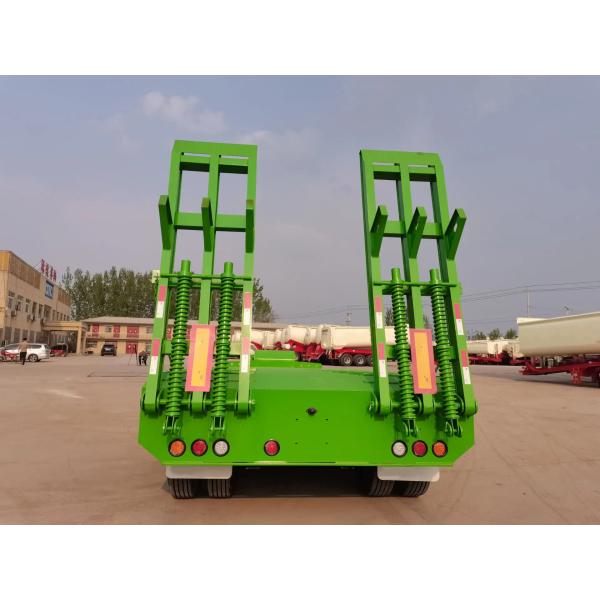

Construction machinery transport 3 Axles 60Ton lowbed semi trailer lowbed truck trailer
It is constructed with high-strength steel to ensure sufficient load carrying capacity and structural stability. It is able to reliably carry large and heavy loads. The semi-trailer has a low-flatbed design, which makes loading and unloading of goods more convenient. The low-flat structure reduces the loading and unloading height of the cargo and improves the convenience of operation, which is especially suitable for places with low height restrictions. The 3-axle design provides better stability and maneuverability. The multi-axle layout helps to spread the weight of the cargo, reduce the tilt and pressure of the vehicle during traveling, and improve driving safety.
Type | Semi-Trailer |
Max Payload | 60000 kg |
Place of Origin | Shandong, China |
Use | Truck Trailer |
Material | Steel |
Size | 13000*3000*1650mm |
Product name | low bed trailer |
Steel Spring | 10/10/10 leaf spring suspension |
Axle | 3*13T/16T Fuwa/BPW/Optional |
Tire | 11.00r20 12r22.5 315 385 |
Spare Tire Carriers | 2 pieces |
Wheel Rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice |
Wheelbase | 7180/6680/6260+1310+1310mm |
King pin | 2"(50mm)or3.5"(90mm) JOST |
Suspension | Mechanical Suspension |

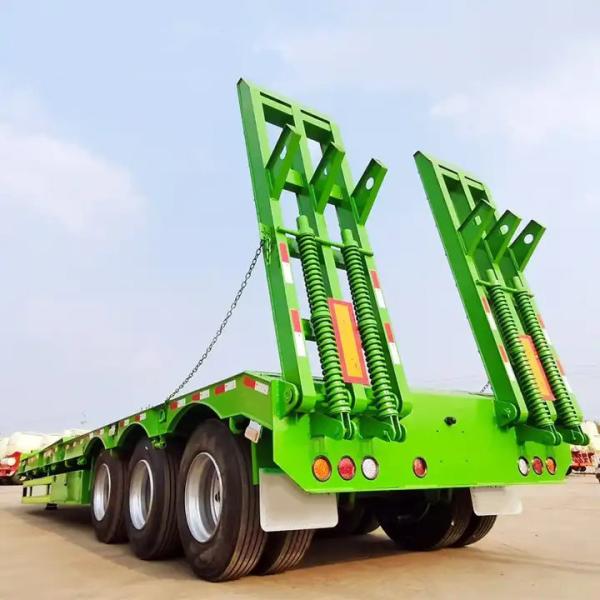

Ladder | Mechanical ladder Or Air Ladder |
Tare Weight(KG) | 8500kg |

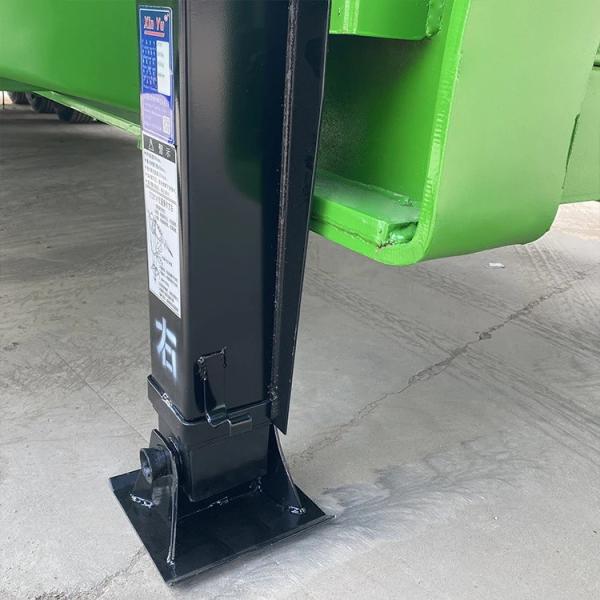

Landing Gear | Standard 28Ton/Jost |
Main beam | The height of the beam is500-550mm;Upper plate: 16- 22mm ; Down plate is 18-25mm;Middle plate is 10-16mm. |
Side beam | 20-25 channel or H steel |
Brake system | Dual Line Brake system (ABS Optional upon chioce) |
Brake Chamber | Big air chamber( Brand Optional upon chioce ) |
Tool Box | 1 Standard |
Platform plate | 4/6mm Diamond Plate |
Floor | 3-5 Diamond plate |
Accessories | 2 Set standard tool boxes |
Light | Tail lamp with turn signal, brake light & reflector, side lamp |
Color | Color as customer requirement |
Painting | 1coat of anticorrosive prime, twice coats of final paint |
PACKING AND SHIPPING
We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
