Powered by one 6V 4R25 battery Traffic Warning Lights European Standard EN 12352
This type barricade light is designed for Europe market according to European Standard EN 12352, that mounted for traffic cones, road barrier,or other suitable safety equipment. The European Barricade Light not only can be powered by 1x 4R25 6V battery, but also solar panel with 3.7V 4AH rechargeable battery.
Specification:
Classes of Barricade Light according to European Standard EN 12352 | |||||
Class | light Emitting surface (cm²) | Angle Ranges | Luminous intensity | ||
Horizontal | Vertical | Minimal | Maximal | ||
L6 | ≥2X250 | +10 degree to -10 degree | +5 degree to -5 degree | 10 | 100 |
L7 | ≥250 | +10 degree to -10 degree | +5 degree to -5 degree | 20 | 100 |
L8L | ≥250 | +7.5 degree to -7.5 degree | +5 degree to -5 degree | 250 | 500 |
![]() | ![]() | ![]() | ![]() | ![]() |
SP-L6-6V | SP-L6-SU | SP-L7-B6V | SP-L7-BSU | SP-L8L-B6V |
Class 6 | Class 6 | Class 7 | Class 7 | Class L8L |
Remark:WIFI sequential function is avaliable for SP-L7B6V and SP-LBL-86V
ADVANTAGES
· Lamp class L6(two-sided), class L7(one-sided),class L8(one-sided) according to EN 12352.
· Powered by one 6V 4R25 battery(Not included) or by Solar with 3.7V 4AH rechargeable battery (Included).
· No cable connection as battery is integrated in the housing.
· 200mm DIA PC Lens, high-quality LED’s lifetime>100,000 hours.
· Available Light control function:lamps can automatic to work in the dark only.
· 200mm DIA PC Lens, high-quality LED’s lifetime>100,000 hours.
· Available Light control function:lamps can automatic to work in the dark only.
· Easily mounted on beacons /attached to barriers by bracket / to tubes by clamp.

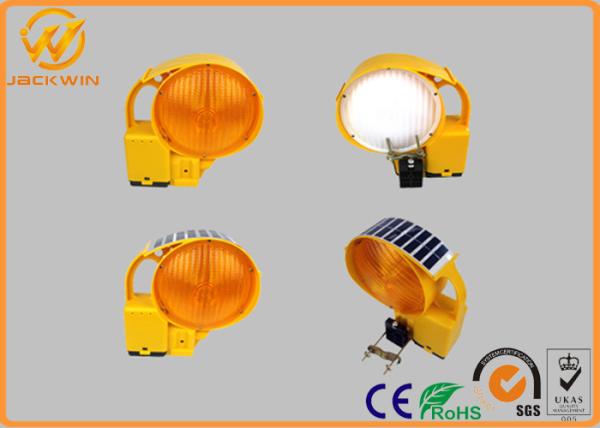

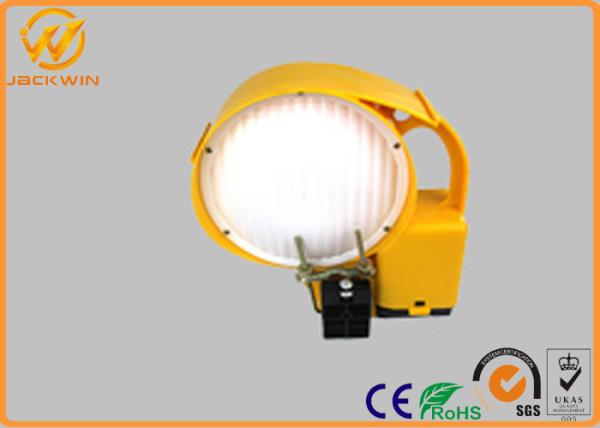

European Barricade Lights Photos:
Applications:
1. Construction sites.
2. Work zones.
3. In-plant work areas.
4. Highway construction project.
5. Water channel marker.
6. Beacon.
7. Vessel, Vehicle, Trailer, Truck.
Competitive Advantage:
1. ON—OFF button.
2. Build-in functional switch can control single-side or double-side flash.
3. Light control design, it can work according to the environmental luminance.
4. Convex lens design in the center, excellent alarming effect in the night
5. Water proof, it can work in the rainy day
Aftersale Service?
1. Three years warranty policy.
2. We test all the products 3 times before delivery.
3. Good delivery time.
What is our payment?
Payment: L/C, T/T Western Union, Paypal
