105*105*23mm Catseye Road Stud , Colorful Solar Pavement Marker With IP68 Protect Level
105*105*23mm Catseye Road Stud , Colorful Solar Pavement Marker With IP68 Protect Level
105*105*23mm Catseye Road Stud , Colorful Solar Pavement Marker With IP68 Protect Level
105*105*23mm Catseye Road Stud , Colorful Solar Pavement Marker With IP68 Protect Level
Specifications
Brand Name :
Jackwin
Model Number :
SRS-004
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100 Pieces
Price :
USD5-8.5/piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000 pcs per month
Delivery Time :
5 working days after received your payment
Packaging Details :
50x35x48 cm, 24 pcs/carton,weight: 13 kgs/ctn
Description :
Reflective Aluminum Solar Road Stud
Material :
Aluminum
Solar panel :
2V/100 MA Monocrystalline Silicone
Battery :
1.2V/800mAh Ni-MH Battery
LED Quantity :
6 LEDS
LED Frequency :
Flash 65times/min or steady
LED Color :
Red / Yellow / White / Blue / Green
Visual Distance :
＞1200meters
Product Size :
105*105*23mm
Working Temperature :
-20℃ to +80℃
Working Time :
15 days after fully charged
Description

105*105*23mm 6 Pieces LEDs Flashing Aluminum Reflective Road Stud Solar Pavement Marker

This solar reflective road stud designed for highway express roadside lane, solar batteries powered enable make the LED consistant working without replacement battery, which can be continuely work at least 15 days after one time fully charged under the strong sunshine.

Designed aluminum casting size 105x104x23 mm,with each lens 2 LEDs,with single lens and double lens and many color for choice.

Description:

1) Size: 105x105x23 mm

2) 2V/100 MA Monocrystalline Silicone solar panel

3) Battery life: 3-5 years

4) Work Mode: steady or flash

Specification:

Product

 Reflective Road Stud
Model Number SRS-004
Solar panel 2V/100 MA Monocrystalline Silicone

Battery

 1.2V/600mAh Ni-MH Battery
LED Quantity 6 Pieces
LED Frequency Flash for 90 times per minute or as customed
LED Color Red / Yellow / White / Blue / Green
Visual Distance ＞1000meters
Product Size 105*105*23mm
Working Temperature -20℃ to +80℃
Lighting Time 120h after full charged
Turn on light intensity 400-500 Lux
Protect Level IP68
Material Anti-UV PC+Aluminum
Weight Resistance in Static >20 Tons
Luminous Intensity 12000 mcd -20000mcd

Features:

1 Light control design,can work automatically according to the environmental illuminance.

2 Rainproof , it can work normally in the rainy day.

Competitive Advantage:

1. Reasonable Price

2. IP68,Anti-high(low) temperature.

3. Waterproof,Anti-sunburn and Rainproof.

4. Energy Saving and Environmental

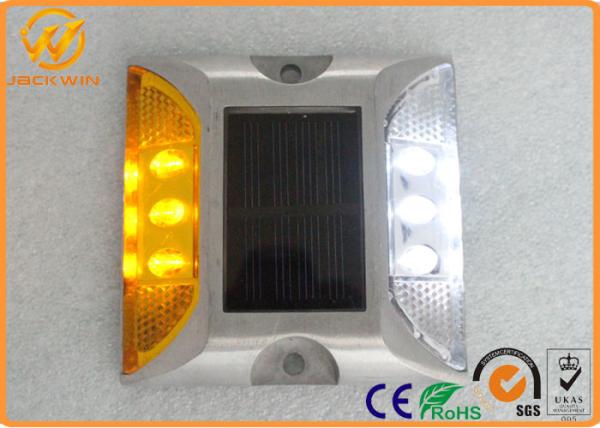

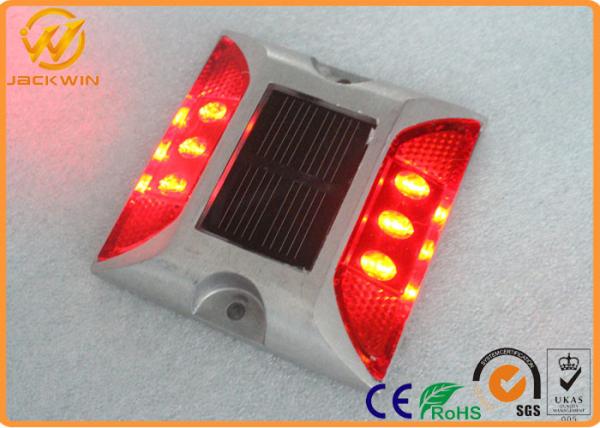

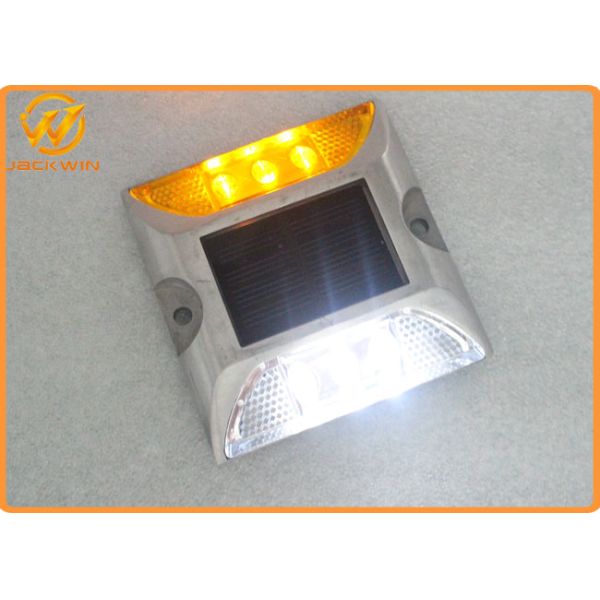

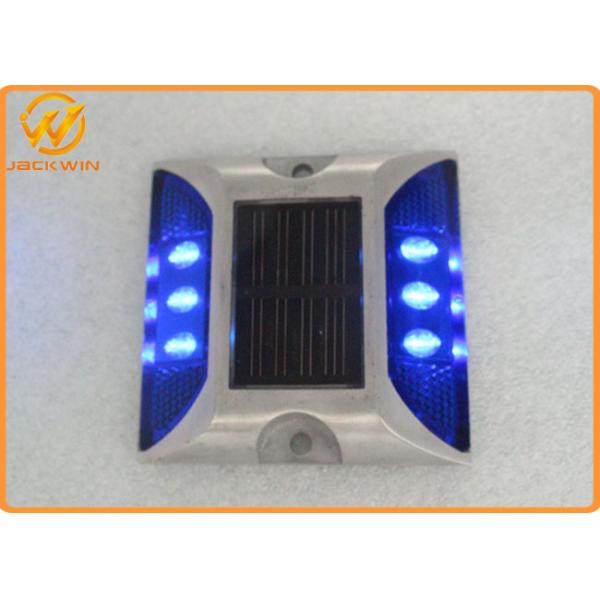

Reflective Road Stud Details Pictures:

105*105*23mm Catseye Road Stud , Colorful Solar Pavement Marker With IP68 Protect Level

105*105*23mm Catseye Road Stud , Colorful Solar Pavement Marker With IP68 Protect Level

105*105*23mm Catseye Road Stud , Colorful Solar Pavement Marker With IP68 Protect Level
