High Visible Yellow Red LED Flashing Cat Eye Reflective Aluminum Road Stud Waterproof

This aluminum solar road stud designed with stud on bottom,that can be grill hole installed under the ground,LED work mode can be steady or flash for customers choice.

Description:

Solar Road Stud / Solar Road Marker is a protruding sign. It's self-luminous, energy supply by solar panel and durable Ni-mh battery. Generally used for paving road ,used at night or in the rain and fog weather, and sketched the outline of the road, to improve road safety.

Road Stud-P26.pdf

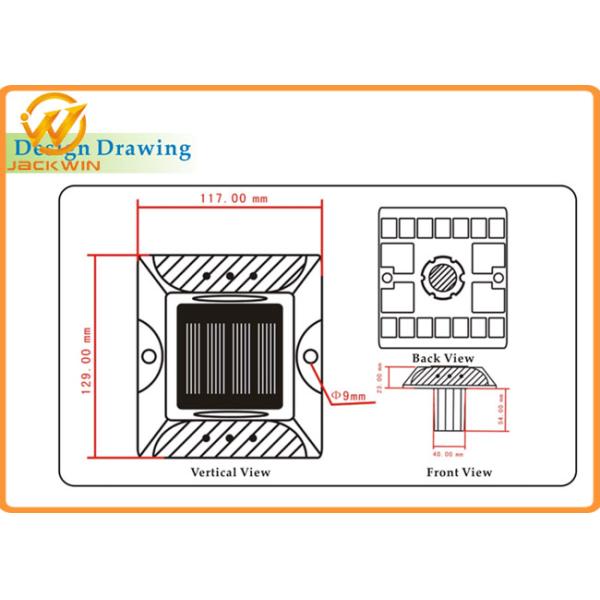

Specification:

Applications:

1. Highway.

2. Bridge.

3. Construction Site.

Competitive Advantage:

1. Reasonable Price

2. IP68,Anti-high(low) temperature.

3. Waterproof,Anti-sunburn and Rainproof.

4. Energy Saving and Environmental

5. Light control design,can work automatically according to the environmental illuminance.

6. Rainproof , it can work normally in the rainy day.

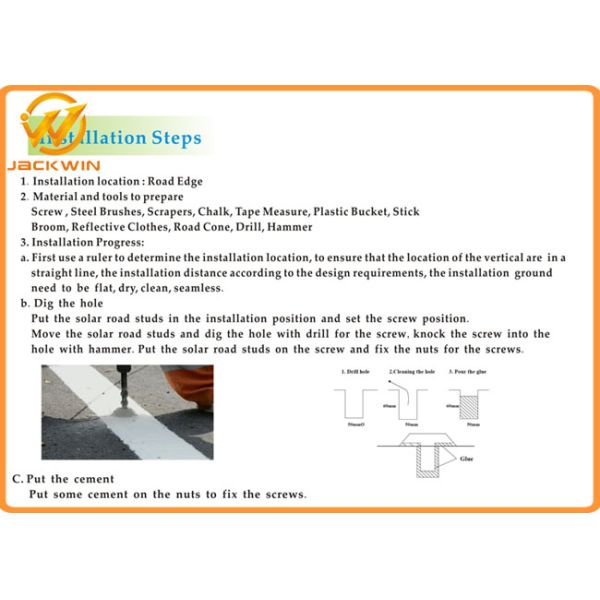

Installation Step:

1.Installation Location:Road Edge

2.Material and tool to prepare

Screw,steel brushes,Scrapers,Chalk,Tape Measure,Plastic Bucket,Stick Broom,Reflective Clothes,Road Cone,Drill,Hammer

3.Installation Process:

a.First use a ruler to determine the installation location,to ensure that the location of the vertical are in a straight line,the installation distance according to the design requirments,the installation ground need to be flat,dry,clean,seamless.

b.Dig the hole

Put the solar road studs in the installation position and set the screw position.

Move the solar road studs and dig the hole with drill for the screw,knock the screw the hole with hammer.Put the solar road studs on the screw and fit the nuts for the screws.

C.Put the cement.

Put some cement on the nuts to fix the screws.

Aluminum Road Stud Details Pictures:
