Specifications
Brand Name :
Jackwin
Model Number :
JW-BW-1
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per month
Delivery Time :
5 working days after received your payment
Packaging Details :
Packed in carton
Product :
Automatic Parking Lock
Size :
645*160*300mm
Up Height :
300mm
Down Height :
85mm
Net Weight :
11.5kg
Gross Weight :
12kg
Remote Distance :
≤50m
Up and Down :
5s to 6s
Environment Temperature :
-40 to +70
Feature :
Spraying plastic coating + gold oil ,collision,waterproof
Input voltage :
DC 6V or AC110/220V
Working Power :
DC6V 7AH
Static Current (mA) :
≤0.85Ah
Battery :
Lead Acid Battery
Charge Time :
About six months on a charge
Material :
2.00mm steel rolling
Outdoor Protection :
IP56
Description

Intelligent Automatic Car Parking Space Lock with 300 mm Up 85 mm Down Height

Specification:

Product

Automatic Parking Lock

Size

645*160*300mm

Up Height

300mm

Down Height

85mm

Net Weight

11.5kg

Gross Weight

12kg

Remote Distance

≤50m

Up and Down

5s to 6s

Environment Temperature

-40 to +70

Feature

Spraying plastic coating + gold oil,collision,waterproof

Input voltage

Input voltage

Working Power

DC6V 7AH

Static Current (mA)

≤0.85Ah

Battery

Lead Acid Battery

Charge Time

About six months on a charge

Material

2.00mm steel rolling

Outdoor Protection

IP57

Certificate CE/ROHS/FCC/SGS

Description:

1.Easy to Use

Touch the remoter to lower your automatic parking lock to lay flat, then drive your vehicle into parking space;

When leaving, touch the remote, and your parking lock will automatically rise up to prevent anyone else from

using your parking space.

2. Easy to Install

Fix parking lock onto the ground by expansion bolts, that is all!

3. Rechargeable Battery with Long Continuous Use

Your parking lock is powered by a rechargeable battery.After being recharged, it will lasts for about 1000 uses,

or about 6 months continuous use.Your parking lock comes with a recharging power pack.

4. Heavy Duty and Durable.

The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, the housing

is waterproof, rustproof and dustp-roof enough to last about 5 years in hard weather. The sway arm made of steel rolling

won`t deform even it is crushed by a vehicle.

5. Well Performance in Water and Dust.

Thank to the IP66 protection grade, the parking lock is water-proof and dust-proof which make it suitable for various parking

environments.

6. Auto-reposition (Available for some models).

In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm sound,and once the

vehicle left the sway arm will automatically raise up till vertical.With the remoter, you can even hold position of sway arm when it was hit by a vehicle.

7. Anti-disconnecting for Power Safety.

The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit.

8. Noise-free.

The transmission design on motor makes almost zero noise, which is good for battery and motor longevity and less friction, also goods for quiet environment.

9. Manual control in case of no power.

In case the power is off, just manually control the parking lock in emergency.

10. Alarm Against a Low Battery

If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.

Applications:

1. Parking Lot.

2. Parking Equipment.

Competitive Advantage:

1. High quality with reasonable price

2. Easy to use

3. High weight Capacity

4. Durable Life Time

5. Waterproof and Collision

6. Fast delivery time

7. Good after sale service

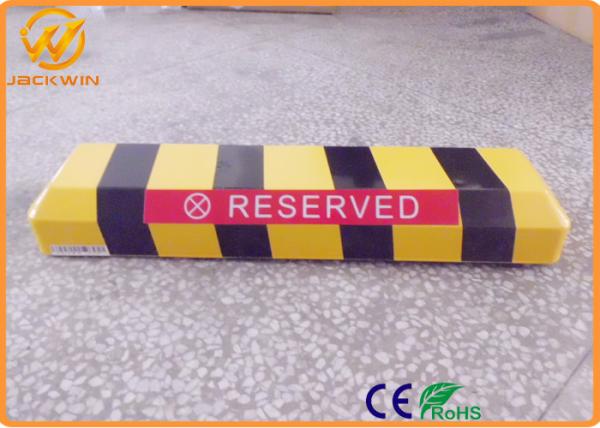

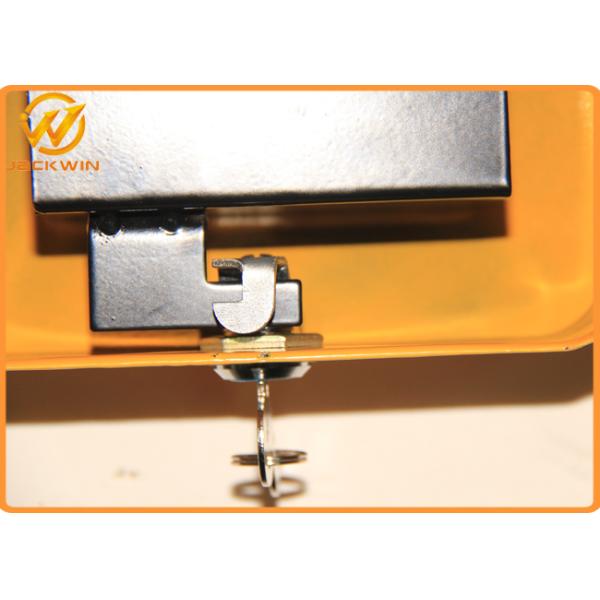

Automatic Parking Lock Details photos:

Intelligent Automatic Car Parking Space Lock with 300 mm Up 85 mm Down Height

Intelligent Automatic Car Parking Space Lock with 300 mm Up 85 mm Down Height
