1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks
1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks
1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks
1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks
1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks
1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks
Specifications
Brand Name :
CIMC
Model Number :
skeleton semitrailer
Certification :
BV,SGS, CNCA, CIQ
Place of Origin :
China
MOQ :
1 Unit
Price :
$9000-$16000 per unit
Supply Ability :
1000 units / per month
Delivery Time :
20 work days
Packaging Details :
Nude, but with wax sprayed
Product name :
skeleton container semitrailer
Loading weight :
40000kg
Axle :
3 axle
Main beam :
height of beam is 500mm,upper plate is 14mm,down plate is 16mm, middle plate is 6mm
platform plate :
3mm Diamond plate
container Twist lock :
12pcs container lock
Tire :
1100R20
Traction Pin :
50mm 90mm
Tool Box :
1 standard
Landing Gear :
JOST 28 Ton
Description

3 axles 40 ft skeleton container semitrailer 60 Ton capacity semitrailer with 12 twist container lock

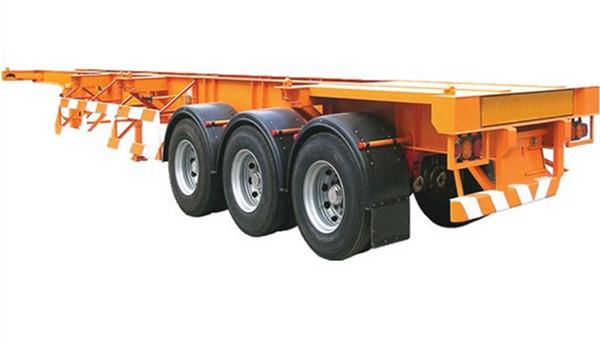

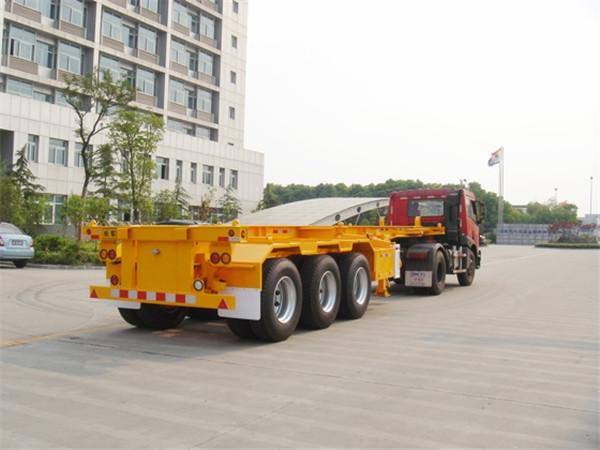

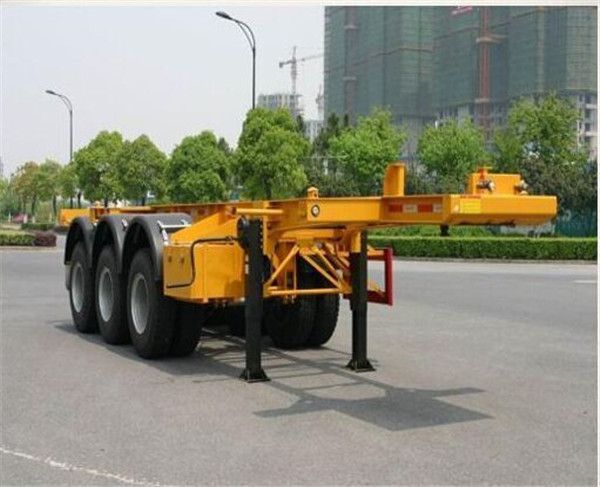

picture of product:

1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks

Specifications:

Type 3axles 40ft skeleton semi trailer
Function 2x 20ft and 1x40ft container or other stuff
Loading capacity kg 40000
Tare weight kg 5500
Dimensions L*W*H mm 12500*2500*1600
Main Beam

Heavy duty and extra durability designed I beam;

opting for high tensile steel Q345,

welded by automatic submerged-Aac processes.

Top flange 14mm,width140mm;

Middle Flange 8mm;

bottom flange16mm,

width 140mm
Axle number 3
Axle brand FUWA 13ton
Tire type 12R22.5
King pin 3.5"90# removeable
Support legs 28Ton standard
Leaf spring Leaf spring 6 sets
Suspension Mechanical suspension
Braking system

WABCO RE6 relay valve

T30/30 spring brake chamber

40L air tanks
Tools box 2
Voltage 24V
Receptacle 7 ways 7 wire harness
Side marker lamp LED type
Shipping terms Naked
marking According to the requirement of the buyer
painting optional



Application:

1. This series flatbed and skeleton continer semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as container transportion.
2. The capacity is for 20ft,30ft,40ft,45ft,48ft,53ft containers, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.

Competitive Advantage:
1. The price is competitive; we are the direct channel to supply all kinds of trailers.
2.Powerful and reinforced axle
3. All colors are available according to your choice.
4. Fast production period, and quick arrangement of delivery.
5. Professional Sales Team, Our target is not selling special purpose trucks; we help customers choose the best suitable special purpose trucks as per customer’s situation.
6. Professional team for spare parts and aftersales services.
7. Technique support and training.
8. Customization service, as per your request, we will customize our production for you

Transportation:

1100R20 Tire 60 Ton Capacity Flat Bed Semi Trailer With 12 Twist Container Locks
