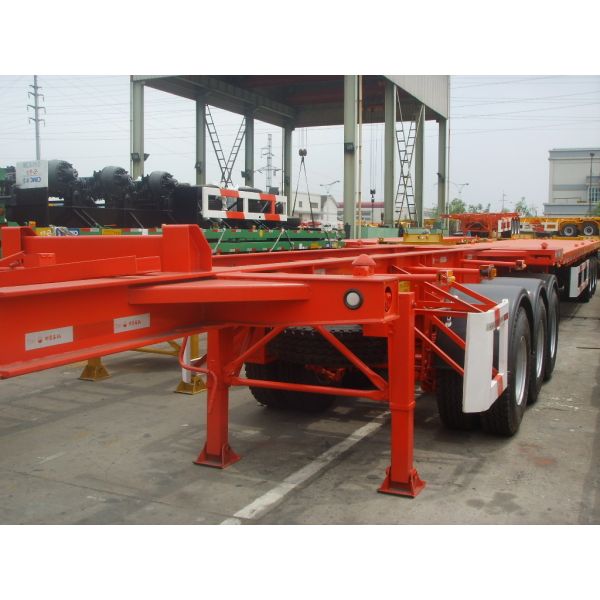

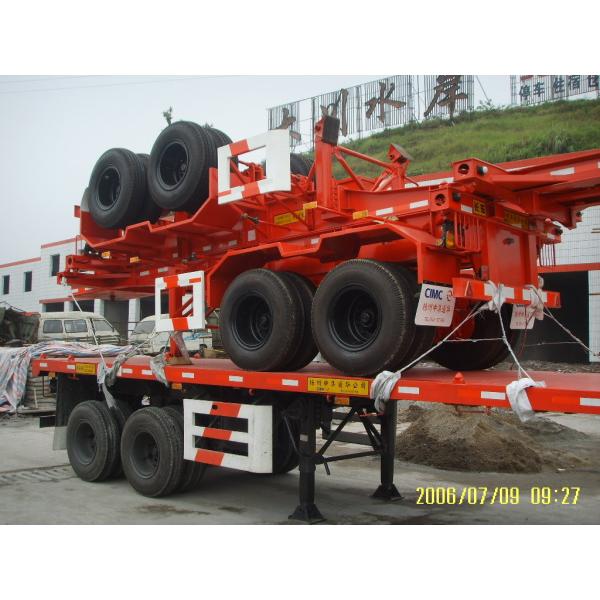

13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ4257N3247
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$9000-16000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Flat Bed Semi trailer
Payload :
40 TONS
Application :
Carrying 40ft Container, 20 Ft Containers, Hose, Steel Plate, Cement Bags
Axles No. :
3 Axles
Material :
High Strength Steel Material
advantage :
Customized Design
Standard :
ISO/CCC/SGS
color :
Optional
Dimensions :
20 0r 40 Ft Flatbed Trailer Or Customized Available
Description

13 meters gooseneck 40ft flatbed container transport trailer / two or three axles container chassis

Specification:

Specification
Product type Flatbed semi trailer
Outside dimension

Length:8500mm-13000mm width:2500 mm

height:2860mm-2900mm

Tare weight About 6T
Wheelbase 6560mm+1310mm+1310mm
Loading capacity 30T-60T
Axle 13T/16T,FUWA/BPW/HUAJING Brand
ABS system Optional
Front/rear -/2420
Twist locks Four,Eight,Twelve pieces(Lifting type or Twist screw type), optional
Suspension

Mechanical suspension(Germany Type or America Type) or Air suspension

(China brand or BPW brand)
Spring leaf 90(W)mm *13(Thickness)mm*10Layer, optional
Tires 12 Pieces Triangle Brand
Rim 9.00×22.5 China brand 12pieces
King pin JOST 2.00 or 3.5 ,Welding type
Support legs JOST brand D200T or China brand 28tons( Double speed)
The material of main beam

The height of the beam is500mm,upper plate is 14 mm,down plate is 16mm,

middle plate is 8 mm,Material is Q345B steel
Floor plate 3mm or can be optional
Side beam 16mm or 18mm channel stee (Material is Q235steel)
Side wall 600-1500mm height, or can be do box type,for choose
Brake Chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);

Two pieces of 45L air tanks Or China brand

Electrical System 24V,7 wire harness
Tool box One piece or according to the requirement of the buyer
Painting

Compete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,

2 coats of final paint
Chassis name Cargo truck chassis
Reflective warning signage

Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd.

Brand:SINOMTP Product Type:TM1200-1

Others

1. This vehicle is used to transport 40FT container.

2. ABS system: type: 4S/2M.

Manufacturer: Guangzhou KEMI Electronic Technology Co., Ltd.

3. Under-run protector:with the material of Q235B,be welding with the main body

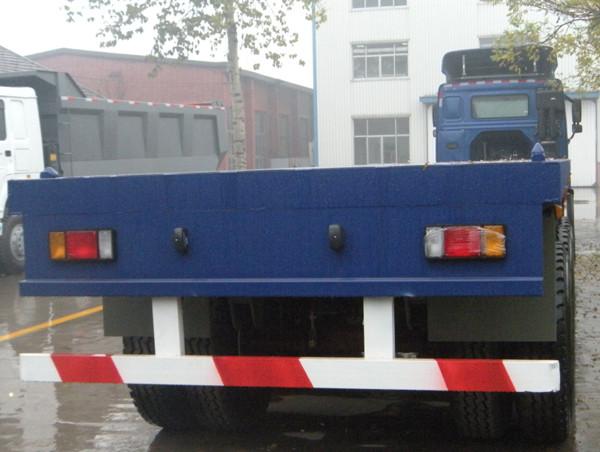

4. Rear under-run protector: the height above the ground is 500mm Section:150mm*55mm.
Shipping terms By bulk cargo carrier,RORO or 40HQ container

Description:

HAIZHOU manufactures high quality Flatbed Semi Trailer. With the technical expertise of our professionals, we are capable to provide Flatbed Semi Trailer which has various applications and multiple functions, SINOMTP Flatbed Semi Trailer can be usage for 40 ft containers. For the complete satisfaction of the clients, we manufacture is as per their requirements and demands. The long lasting life and low maintenance of Flatbed Semi Trailer is appreciated among the clients.

Applications:
Flatbed semi trailers are another commonly used type of equipment in the transportation industry.
Flatbed trailers are used to deliver products like pipe, steel, lumber, heavy equipment, and any other Itemthat would be difficult to load into the back of a trailer. Flatbeds are more versatile than dry vans,because they can be loaded from anywhere on the trailer.

Competitive Advantage
1, Flatbed Semi Trailer can use it to carry one 40 ft cargo container, two 20 ft containers , or one 20 ft container at one time.
2, Flatbed Semi Trailer includes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.
3, All the parts of Flatbed Semi Trailer are purchased from our qualified suppliers, That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use
Warranty

ITEM NAME WARRANTY ITEM NAME WARRANTY
MAIN FRAME FRAME 1 YEAR RUNNING GEAR AXLE 6 MONTHS
SUSPENSION 6 MONTHS AXLE BEARING 3 MONTHS
KING PIN 1 YEAR WHEEL HUB 3 MONTHS
BALANCE ARM 3 MONTHS TIRE 6 MONTHS
ITEM NAME WARRANTY ITEM NAME WARRANTY
BRAKING DEVICE BRAKE DRUM 3 MONTHS SUPPORT DEVICE LANDING GEAR 6 MONTHS
BRKE CHAMBER 3 MONTHS SPARE WHEEL CARRIER 6 MONTHS
AIR RESERVOIR 6 MONTHS
ITEM NAME WARRANTY
OTHERS LEAF SPRING 3 MONTHS
BRAKE CHAMBER DIAPHRAGM 3 MONTHS
EMERGENCY RELAY VALVE 3 MONTHS
BRAKE SHOE 3 MONTHS
RELAY VALVE 3 MONTHS

13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer13 Meters Gooseneck Heavy Duty Flatbed Trailer , 3 Axle Flatbed Trailer
