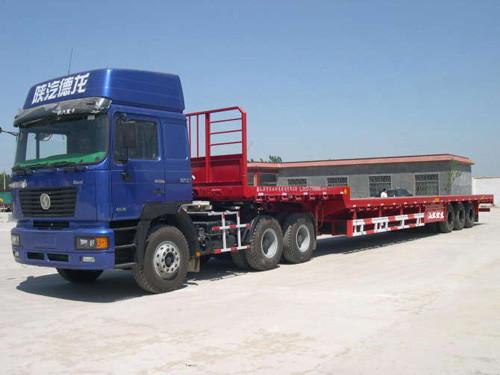

Multi Axles 40ft Flat Bed Semi Trailer Gooseneck Slip Resistant Red
Multi Axles 40ft Flat Bed Semi Trailer Gooseneck Slip Resistant Red
Multi Axles 40ft Flat Bed Semi Trailer Gooseneck Slip Resistant Red
Multi Axles 40ft Flat Bed Semi Trailer Gooseneck Slip Resistant Red
Multi Axles 40ft Flat Bed Semi Trailer Gooseneck Slip Resistant Red
Multi Axles 40ft Flat Bed Semi Trailer Gooseneck Slip Resistant Red
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ4257N3247
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$9000-16000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Flat Bed Semi trailer
Payload :
40 TONS
Application :
Carrying 40ft Container, 20 Ft Containers, Hose, Steel Plate, Cement Bags
Axles No. :
3 Axles
Material :
High Strength Steel Material
advantage :
Customized Design
Standard :
ISO/CCC/SGS
color :
Optional
Dimensions :
20 0r 40 Ft Flatbed Trailer Or Customized Available
Description

Multi axles 40ft flatbed iso container trailer / gooseneck flatbed trailer with warranty

Specification:

Type Flat bed semi trailer
Usage loading for 2×20ft or 1×40ft container
Delivery time We are the manufacturer, Production Term 10 workdays for one unit semi trailer,60 units per month
Weight:
Tare Weight 7 T
Payload 45 T
Specification:
Suspension Mechanical suspension(American type)
King Pin 3.5” or 2.00’’ traction pin Jost brand, bolts type
Outside Dimensions (LxWxH) 12450*2490*1575 mm(the final size depend on the final drawing)
Rim 9.00-22.5, 13 pieces (Including one spare rim)
Twist Locks 12 pieces
　 Steel Spring 10 pieces/per axles
Axle
Axle No./ weight 2 axles ,13T FUWA brand
Tire:
Tire specs 12R22.5
Number of Tire 13 pieces (Including one spare tire)
Spare Tire Carriers 2 pieces
Frame: (specs. and materials) height is 500mm
Frame Beam Upper plate is 14mm, lower plate is 16mm,middle is 8mm.
Side beam 16# channel steel
platform 3mm platform(Diamond)
Landing Leg Support

28T (Two speed)
Brake:
Emergency valving WABCO Brand (Special for export)
Brake Chamber Two double and two single chamber
ABS system Without(Can be chosen freely)
Electrical:
Voltage 24V
Receptacle 7 ways(7 wire harness)
Light color: LED light
Front marker lamp front corner marker lamp is red, Reflector lamp is white
Side marker lamp Orange
Rear lamp Red
Color Optional
Miscellaneous: Turn signal lamp
Painting According to the requirement of the buyer
Marking According to the requirement of the buyer
Side Guard According to the requirement of the buyer
Tools box One piece (1.00*0.50*0.50mm)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Description:

HAIZHOU manufactures high quality Flatbed Semi Trailer. With the technical expertise of our professionals, we are capable to provide Flatbed Semi Trailer which has various applications and multiple functions, SINOMTP Flatbed Semi Trailer can be usage for 40 ft containers. For the complete satisfaction of the clients, we manufacture is as per their requirements and demands. The long lasting life and low maintenance of Flatbed Semi Trailer is appreciated among the clients.

Applications:
SINOMTP Flate bed semi trailer is mainly used to Carry 40ft Container, 20 Ft Containers, Hose, Steel Plate, Cement Bags ..Our flat bed semi trailer are engineered and custom built to meet the
needs of each customer, based on application, regional weight laws, severity of service, operational efficiency and personal preferences.
Flatbed semi trailers are another commonly used type of equipment in the transportation industry.
Flatbed trailers are used to deliver products like pipe, steel, lumber, heavy equipment, and any other Itemthat would be difficult to load into the back of a trailer. Flatbeds are more versatile than dry vans,because they can be loaded from anywhere on the trailer.

Competitive Advantage
1, Flatbed Semi Trailer can use it to carry one 40 ft cargo container, two 20 ft containers , or one 20 ft container at one time.
2, Flatbed Semi Trailer includes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.
3, All the parts of Flatbed Semi Trailer are purchased from our qualified suppliers, That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use
4, Strong trailer frame was made from T700 steel
5, The floor is covered with corrugated sheet metal

Warranty

ITEM NAME WARRANTY ITEM NAME WARRANTY
MAIN FRAME FRAME 1 YEAR RUNNING GEAR AXLE 6 MONTHS
SUSPENSION 6 MONTHS AXLE BEARING 3 MONTHS
KING PIN 1 YEAR WHEEL HUB 3 MONTHS
BALANCE ARM 3 MONTHS TIRE 6 MONTHS
ITEM NAME WARRANTY ITEM NAME WARRANTY
BRAKING DEVICE BRAKE DRUM 3 MONTHS SUPPORT DEVICE LANDING GEAR 6 MONTHS
BRKE CHAMBER 3 MONTHS SPARE WHEEL CARRIER 6 MONTHS
AIR RESERVOIR 6 MONTHS
ITEM NAME WARRANTY
OTHERS LEAF SPRING 3 MONTHS
BRAKE CHAMBER DIAPHRAGM 3 MONTHS
EMERGENCY RELAY VALVE 3 MONTHS
BRAKE SHOE 3 MONTHS
RELAY VALVE 3 MONTHS
