Yellow Semi Commercial Flatbed Trailer , 40 Ton Flatbed Tractor Trailer
Yellow Semi Commercial Flatbed Trailer , 40 Ton Flatbed Tractor Trailer
Yellow Semi Commercial Flatbed Trailer , 40 Ton Flatbed Tractor Trailer
Yellow Semi Commercial Flatbed Trailer , 40 Ton Flatbed Tractor Trailer
Yellow Semi Commercial Flatbed Trailer , 40 Ton Flatbed Tractor Trailer
Yellow Semi Commercial Flatbed Trailer , 40 Ton Flatbed Tractor Trailer
Yellow Semi Commercial Flatbed Trailer , 40 Ton Flatbed Tractor Trailer
Yellow Semi Commercial Flatbed Trailer , 40 Ton Flatbed Tractor Trailer
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ4257N3247
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$9000-16000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Flat Bed Semi trailer
Payload :
40 TONS
Application :
Carrying 40ft Container, 20 Ft Containers, Hose, Steel Plate, Cement Bags
Axles No. :
3 Axles
Material :
High Strength Steel Material
advantage :
Customized Design
Standard :
ISO/CCC/SGS
color :
Optional
Dimensions :
20 0r 40 Ft Flatbed Trailer Or Customized Available
Description

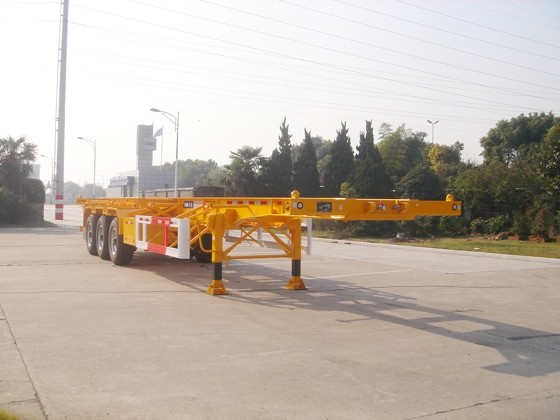

3 Fuwa Axles Yellow Triangle Brand tire Flatbed Container Trailer 40ton Flatbed Semi Trailer

Specification:

Main specification
Type skeletal trailer,used container chassis
Function 2x 20ft and 1x40ft container or other stuff
Overall dimension 12500*2400*1550
Loading weight 40ton
Main beam The height of the beam is 500 mm,
upper plate is14mm,down plate is 16mm,middle plate is 8mm.
Chassis
Traction pin 90# or 50#
Land gear Standard CIMC 28ton
Axle 3x13ton
Axle brand FUWA
Suspension type Normal CIMC suspension
Leaf spring 10/10/10
Tire Triangle Brand, 1100R20 16PR, 12 sets
Container Locker 12
Frame
Painting Optional
Accessories
Brake 6 Double-chambers
Tool box 1 unit 1.5m
Spare wheel carrier 2 units
Side marker lamp LED type
Voltage 24V
Receptacle 7ways (7 wire harness)

Description:

HAIZHOU manufactures high quality Flatbed Semi Trailer. With the technical expertise of our professionals, we are capable to provide Flatbed Semi Trailer which has various applications and multiple functions, SINOMTP Flatbed Semi Trailer can be usage for 40 ft containers. For the complete satisfaction of the clients, we manufacture is as per their requirements and demands. The long lasting life and low maintenance of Flatbed Semi Trailer is appreciated among the clients.

Applications:
Flatbed semi trailers are another commonly used type of equipment in the transportation industry.
Flatbed trailers are used to deliver products like pipe, steel, lumber, heavy equipment, and any other Itemthat would be difficult to load into the back of a trailer. Flatbeds are more versatile than dry vans,because they can be loaded from anywhere on the trailer.

Competitive Advantage
1, Flatbed Semi Trailer can use it to carry one 40 ft cargo container, two 20 ft containers , or one 20 ft container at one time.
2, All the parts of Flatbed Semi Trailer are purchased from our qualified suppliers, That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use

Warranty

ITEM NAME WARRANTY ITEM NAME WARRANTY
MAIN FRAME FRAME 1 YEAR RUNNING GEAR AXLE 6 MONTHS
SUSPENSION 6 MONTHS AXLE BEARING 3 MONTHS
KING PIN 1 YEAR WHEEL HUB 3 MONTHS
BALANCE ARM 3 MONTHS TIRE 6 MONTHS
ITEM NAME WARRANTY ITEM NAME WARRANTY
BRAKING DEVICE BRAKE DRUM 3 MONTHS SUPPORT DEVICE LANDING GEAR 6 MONTHS
BRKE CHAMBER 3 MONTHS SPARE WHEEL CARRIER 6 MONTHS
AIR RESERVOIR 6 MONTHS
ITEM NAME WARRANTY
OTHERS LEAF SPRING 3 MONTHS
BRAKE CHAMBER DIAPHRAGM 3 MONTHS
EMERGENCY RELAY VALVE 3 MONTHS
BRAKE SHOE 3 MONTHS
RELAY VALVE 3 MONTHS
