Specifications
Brand Name :
HAIZHOU
Model Number :
HZ4257N3247
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$9000-16000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Flat Bed Semi trailer
Payload :
40 TONS
Application :
Carrying 40ft Container, 20 Ft Containers, Hose, Steel Plate, Cement Bags
Axles No. :
3 Axles
Material :
High Strength Steel Material
advantage :
Customized Design
Standard :
ISO/CCC/SGS
color :
Optional
Dimensions :
20 0r 40 Ft Flatbed Trailer Or Customized Available
Description

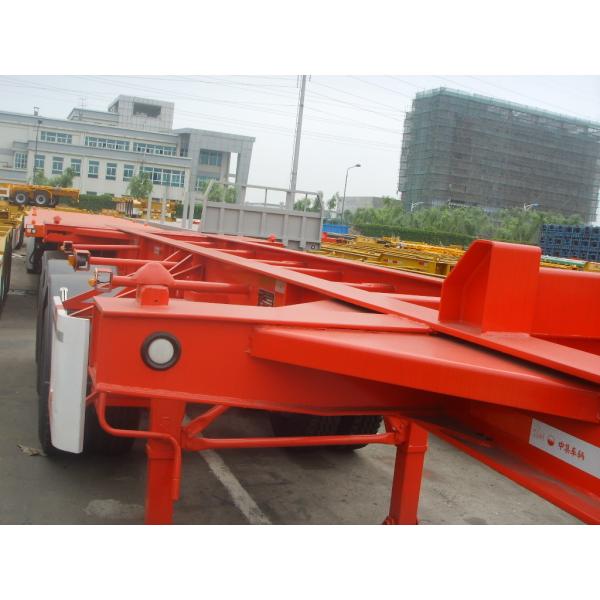

Container chassis trailer , skeleton semi trailer 3 axles 20ft and 40ft with warranty and parts

Specification:

Type 3axles 40ft skeleton semi trailer
Function 2x 20ft and 1x40ft container or other stuff
Loading capacity kg 40000
Tare weight kg 5500
Dimensions L*W*H mm 12500*2500*1600
Main Beam

Heavy duty and extra durability designed I beam;

opting for high tensile steel Q345,

welded by automatic submerged-Aac processes.

Top flange 14mm,width140mm;

Middle Flange 8mm;

bottom flange16mm,

width 140mm
Axle number 3

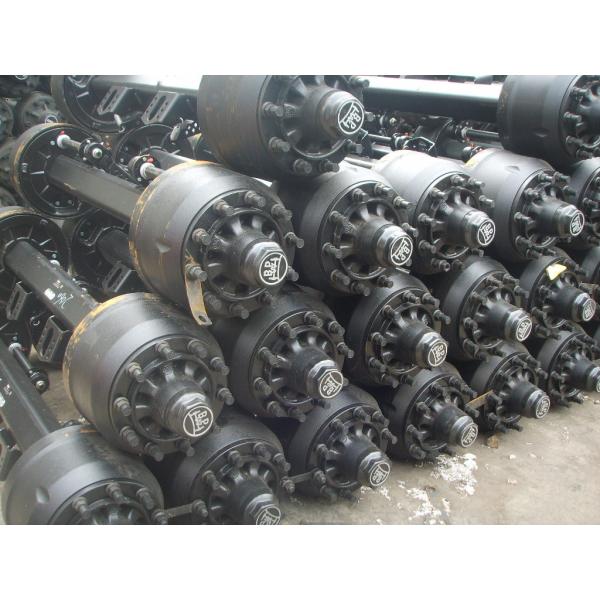

Axle brand FUWA 13ton
Tire type 12R22.5
King pin 3.5"90# removeable
Support legs 28Ton standard
Leaf spring Leaf spring 6 sets
Suspension Mechanical suspension
Braking system

WABCO RE6 relay valve

T30/30 spring brake chamber

40L air tanks
Tools box 2
Voltage 24V
Receptacle 7 ways 7 wire harness
Side marker lamp LED type
Shipping terms Naked
marking According to the requirement of the buyer
painting optional

Description:

HAIZHOU manufactures high quality Flatbed Semi Trailer. With the technical expertise of our professionals, we are capable to provide Flatbed Semi Trailer which has various applications and multiple functions, SINOMTP Flatbed Semi Trailer can be usage for 40 ft containers. For the complete satisfaction of the clients, we manufacture is as per their requirements and demands. The long lasting life and low maintenance of Flatbed Semi Trailer is appreciated among the clients.

Applications:


Flatbed semi trailers are another commonly used type of equipment in the transportation industry.
Flatbed trailers are used to deliver products like pipe, steel, lumber, heavy equipment, and any other Item

that would be difficult to load into the back of a trailer. Flatbeds are more versatile than dry vans,because they can be loaded from anywhere on the trailer.

Competitive Advantage:


1. Flatbed Semi Trailer can use it to carry one 40 ft cargo container, two 20 ft containers , or one 20 ft container at one time.
2. Flatbed Semi Trailer includes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.
3. All the parts of Flatbed Semi Trailer are purchased from our qualified suppliers, That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use.


Warranty

ITEM NAME WARRANTY ITEM NAME WARRANTY
MAIN FRAME FRAME 1 YEAR RUNNING GEAR AXLE 6 MONTHS
SUSPENSION 6 MONTHS AXLE BEARING 3 MONTHS
KING PIN 1 YEAR WHEEL HUB 3 MONTHS
BALANCE ARM 3 MONTHS TIRE 6 MONTHS
ITEM NAME WARRANTY ITEM NAME WARRANTY
BRAKING DEVICE BRAKE DRUM 3 MONTHS SUPPORT DEVICE LANDING GEAR 6 MONTHS
BRKE CHAMBER 3 MONTHS SPARE WHEEL CARRIER 6 MONTHS
AIR RESERVOIR 6 MONTHS
ITEM NAME WARRANTY
OTHERS LEAF SPRING 3 MONTHS
BRAKE CHAMBER DIAPHRAGM 3 MONTHS
EMERGENCY RELAY VALVE 3 MONTHS
BRAKE SHOE 3 MONTHS
RELAY VALVE 3 MONTHS
