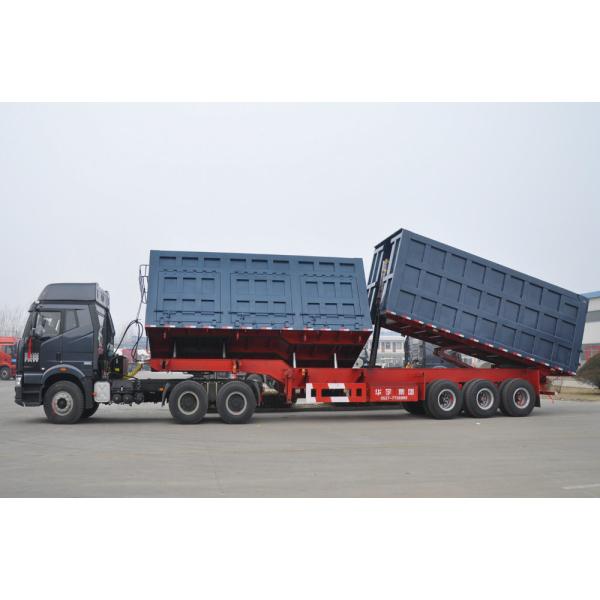

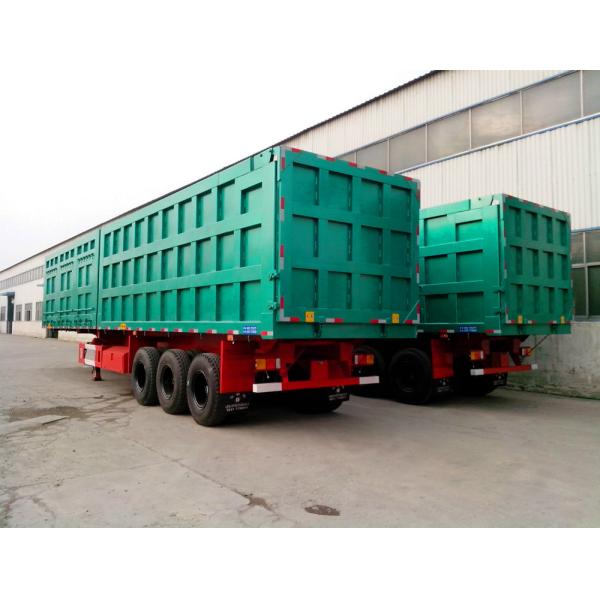

Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ42574588725
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$15000-30000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Dump truck Trailer
Payload :
50-100TONS
Transport :
Sand, Stone, Mental, Coal, Etc
Axles No. :
2 Axles, 3 Axles Optional
Material :
Carbon Steel / High Strength Steel
advantage :
Customized Produce
Standard :
ISO/CCC/SGS
color :
Optional
Lifting System :
HYVA hydraulic cylinder
Description

Garden cargo Landscape use side / End dump trailer with Hydraulic Cylinder Lifting system
Specification:

MAIN DESCRIPTION
Overall Dimension11000*2500*600 (L*W*H)
Tare Weight8000kg
Pay Load45ton
Axle Weight Load13T
RUNNING GEAR
Suspension3 axles mechanical suspension with 10-pcs leaf spring (Optional: air suspension)
AxleFUWA 13T (Optional: BPW )
Rims & TiresRim 8.0-20
BrakesDual lines pneumatic brake system, (Optional: ABS); 6 air chamber; parking brake
UNDER FRAME
Main BeamThe height of the beam is 500mm, Upper plate:14mm;
Down plate 16mm;Middle plate 8+6mm;
Floor plate: 6mm; Side plate:4mm
King PinWelded king pin, size 50# (2'') or 90#(3.5’’)
Landing Gear28T Manual operating
Spare Tire Carriers2 pieces
CARGO BODY
Steel sheet Floor thickness 6mm, side wall thickness 4mm
Hydraulic JackFull set of HYVA hydraulic system, front setting telescopic jack
TailgateOne-piece tailgate with upper articulation, safety lock system
ELECTRICAL & PAINT
Lights & ReflectorsRear light, rear reflector, turn indicative light,
side reflector, fog lamp, number plate light
Wiring24V, 6 lines
Air/Elec. ConnectorISO standard air connector, 24V 7 pin plug socket
PaintSand blasting before painting, color upon request
Accessories2 sets standard tool box


Description:

1, Made by high tensile strength steel, Q345B, Q610, 700
2, heave duty loading capacity. Dump volume: 25M3-55M3.
3, square shape or U-shape design, nice appearance.
4, Hydraulic system: A set of HYVA Brand cylinder.
5, Factory directly selling, high quality and competitive price.
Applications:
3 axle Dump trailers can take different Materials including (in many sizes, types, grades and colors):

  • Crush Stone
  • Rock
  • Sand / Sandy Loam
  • Gravel
  • Masonry Aggregates
  • Mulch
  • Recycled Products
  • Fill Dirt
  • Fill Materials
  • Specialty Aggregates
  • Base Rock
  • Topsoil
  • Custom Soils Mixes
  • Clay and Construction Materials
  • Landscape Materials
  • Asphalt
  • Oil Field Materials
  • Dump Sites for Dirt, Concrete, Asphalt, Rubble, Dredge and Contaminated Materiales

Competitive Advantage
1. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
2. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
3. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
4. Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.
5. Products fully comply with relevant national standard GB1589, GB/T6420, at the same time to meet the individual needs of customers.Garden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting systemGarden Landscape Dump Truck Trailer With Hydraulic Cylinder Lifting system
