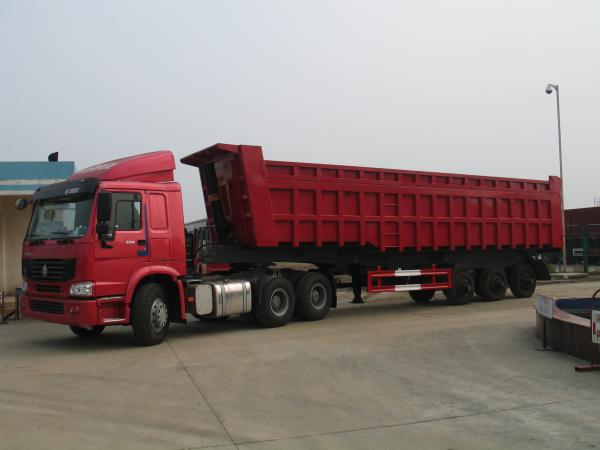

Construction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
Construction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
Construction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
Construction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
Construction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
Construction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
Construction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
Construction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ42574588725
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$15000-30000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Dump truck Trailer
Payload :
50-100TONS
Transport :
Sand, Stone, Mental, Coal, Etc
Axles No. :
2 Axles, 3 Axles Optional
Material :
Carbon Steel / High Strength Steel
advantage :
Customized Produce
Standard :
ISO/CCC/SGS
color :
Optional
Lifting System :
HYVA hydraulic cylinder
Description

Construction tri axle semi trailer , Semi Trailer Truck for cargo transporter

Specification:

Type 2 or 3 axles Dump Truck Trailer
Function Sand & gravel or other cargos transporting
Overall dimension 9000x2300x1500 (inner)
9968x2500x3516 (outer)
Volume Approx. 48.5CBM
Loading weight 50,000Kg
Frame Up: 18mm
Middle: 10mm
Bottom: 20mm
Material: Q345B
King pin JOST 90#
Land gear FUWA 28ton
Axle HJ 13T thicken
Suspension type American Type
Laeaf spring 2010/10/10
Tire 12R22.5, 13pcs, Double Coin Brand
Rim 9.0-22.5 13pcs
Side wall details 6mm thickness
Platform Thickness 8mm
Brake Val WABCO
Brake Chamber 6 Double
Cylinder HYVA FC214-5-07130
Spare wheel carrier 2 pcs
Tool box 1 pcs

Description:

1. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

2. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.


Applications:

3 axle Dump trailers can take different Materials including (in many sizes, types, grades and colors):

  • Crush Stone
  • Rock
  • Sand / Sandy Loam
  • Gravel
  • Masonry Aggregates
  • Mulch
  • Recycled Products
  • Fill Dirt
  • Fill Materials
  • Specialty Aggregates
  • Base Rock
  • Topsoil
  • Custom Soils Mixes
  • Clay and Construction Materials
  • Landscape Materials
  • Asphalt
  • Oil Field Materials
  • Dump Sites for Dirt, Concrete, Asphalt, Rubble, Dredge and Contaminated Materiales

Competitive Advantage

1. Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.

2. Products fully comply with relevant national standard GB1589, GB/T6420, at the same time to meet the individual needs of customers.

3. We can be design the special model according to your requirement.

4, Customization service, as per your request, we will customize our production for youConstruction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo TransporterConstruction Tri Axle High Side Dump Trailer , Semi Dump Truck Trailer For Cargo Transporter
