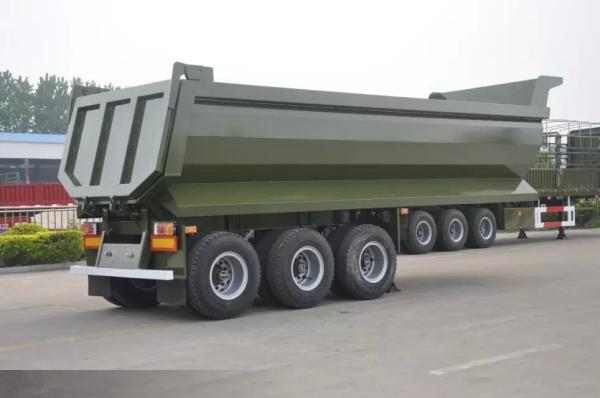

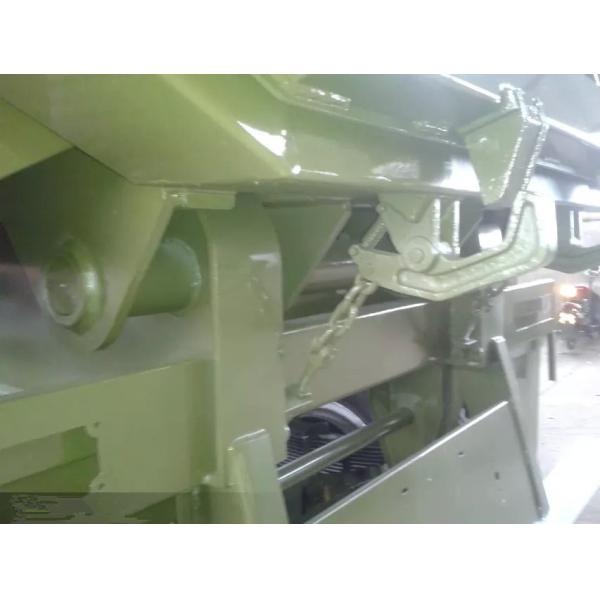

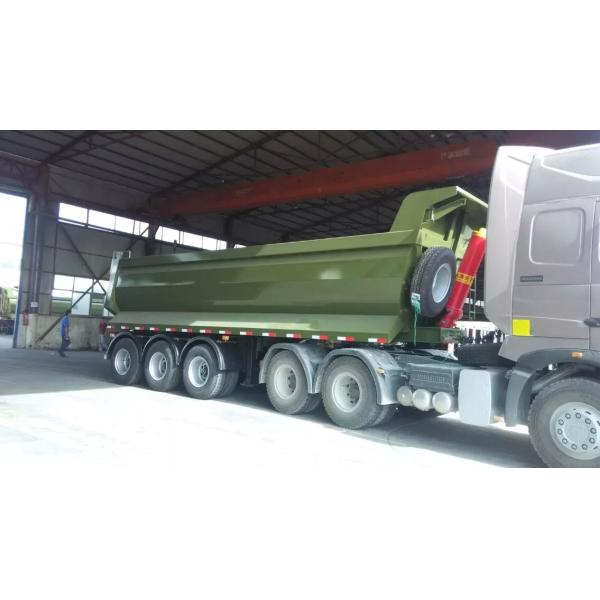

Tandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
Tandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
Tandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
Tandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
Tandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
Tandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
Tandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
Tandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ42574588725
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$15000-30000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Dump truck Trailer
Payload :
50-100TONS
Transport :
Sand, Stone, Mental, Coal, Etc
Axles No. :
2 Axles, 3 Axles Optional
Material :
Carbon Steel / High Strength Steel
advantage :
Customized Produce
Standard :
ISO/CCC/SGS
color :
Optional
Lifting System :
HYVA hydraulic cylinder
Description

Tandem Hydraulic Tipping military Cargo Semi Trailer Truck for heavy duty transportation
Specification:

Tare Weight10.5T
volume36m3
Pay-load50T
Wheel Base 1310 (mm)
Tyre 385/ 12R 22.5 / 11.00R 20
Tyre quantity6 /12 +1 spare
Axle brandFUWA/ BPW optional
Axle 3
Axle-load 13 Ton
HydraulicHyva
King Pin50# 90# changeable
Landing Leg28ton JOST
SuspensionAir Suspension: Wabco
Front/Rear Overhang1950 mm
Outside Dimensions (LxWxH) 10X2.5X3.7M
Material of the Main BeamT700 high tensile steel, yield strength: 800MPA.
Side 4mm, Bottom 6mm
Brake SystemDual line braking system With Automatic Air Chambers
Brake Air ChamberWabco
Electrical24V, 7core socket, lights according to European standards.
ColorAny color will be available
AccessoryOne tooling box with a set of standard trailer tool
Spare tire carrier1 set


Description:

1, Made by high tensile strength steel, Q345B, Q610, 700
2, heave duty loading capacity. Dump volume: 25M3-55M3.
3, square shape or U-shape design, nice appearance.
Applications:
3 axle Dump trailers can take different Materials including (in many sizes, types, grades and colors):

  • Crush Stone
  • Rock
  • Sand / Sandy Loam
  • Gravel
  • Masonry Aggregates
  • Mulch
  • Recycled Products
  • Fill Dirt
  • Fill Materials
  • Specialty Aggregates
  • Base Rock
  • Topsoil
  • Custom Soils Mixes
  • Clay and Construction Materials
  • Landscape Materials
  • Asphalt
  • Oil Field Materials
  • Dump Sites for Dirt, Concrete, Asphalt, Rubble, Dredge and Contaminated Materiales

Competitive Advantage:
1. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
2. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
3. Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.Tandem Tipping Military Industrial Dump Truck For Heavy Duty TransportationTandem Tipping Military Industrial Dump Truck For Heavy Duty Transportation
