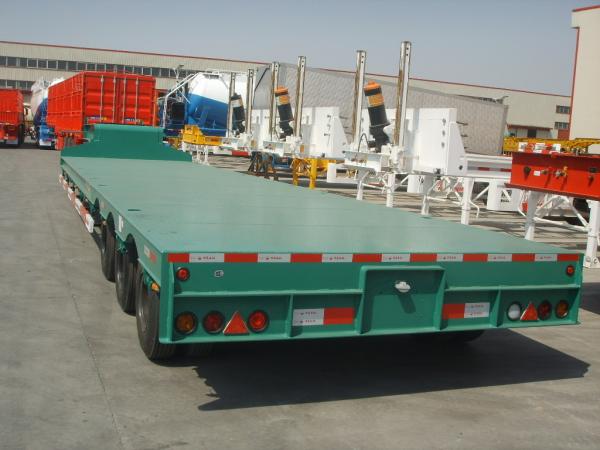

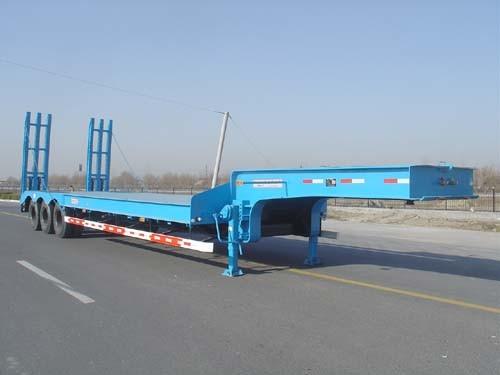

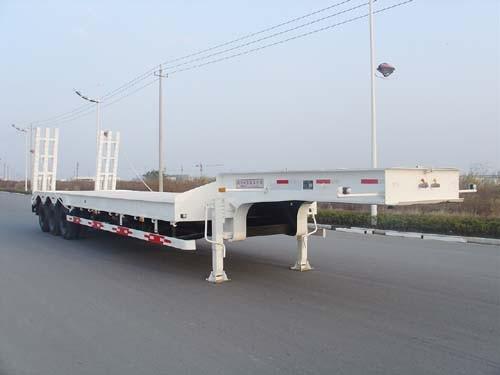

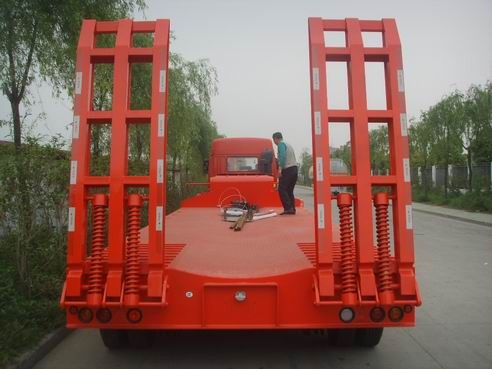

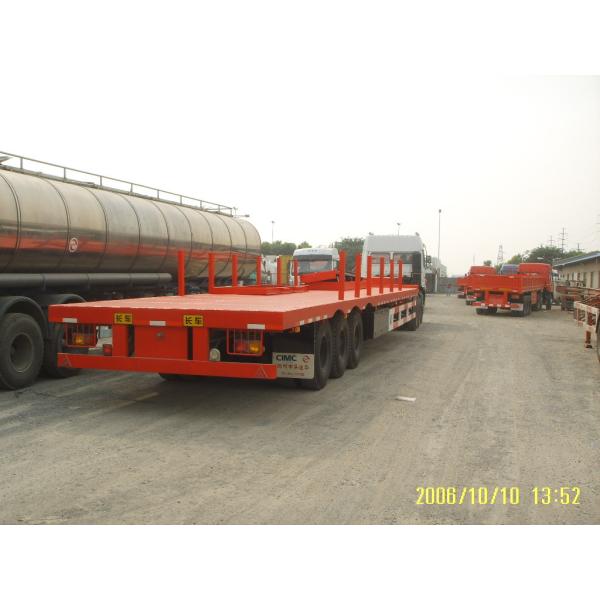

Drop Deck Low Flatbed Trailer For Vessels Transport , Flat Bed Semi Trailer
Drop Deck Low Flatbed Trailer For Vessels Transport , Flat Bed Semi Trailer
Drop Deck Low Flatbed Trailer For Vessels Transport , Flat Bed Semi Trailer
Drop Deck Low Flatbed Trailer For Vessels Transport , Flat Bed Semi Trailer
Drop Deck Low Flatbed Trailer For Vessels Transport , Flat Bed Semi Trailer
Drop Deck Low Flatbed Trailer For Vessels Transport , Flat Bed Semi Trailer
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ4257N3247
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$12000-30000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Semi trailer
Payload :
50-100TONS
Application :
Equipment And Bulk Cargo Transportation
Axles No. :
3 Axles
Material :
High Strength Steel Material
advantage :
Customized Design
Standard :
ISO/CCC/SGS
color :
Optional
Description

Low Bed Trailer 50 Tons loading 3 axles drop deck for vessels transport with warranty

Specification:

Model Outside Dimension No. of Axle Tire size Tare Weight
(L×W×H)(mm) (kg)
LAT9325TDP 13000,12500X3000,2800X3150,1710 3 11.00R20 /12R22.5 8500
Brand Name Aotong Brand
Manufacture Sinotruk Kogel Co., ltd
Main Frame Q345B manganese plates,automatic submerged arc welded
Floor Steel Sheet 3mm thickness or diamond plate

(Also can choose other thickness,such as 2mm,2.3mm,4mm,

5mm,6mm)
Axle Brand: FUWA(BPW optional)
Suspension Independent stamping steel rigid suspension( air suspension)
King Pin 2"or 3.5"traction pin made in China( Jost optional)
Landing Gear chinese brand loading 28000kg (JOST optional)
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Braking System Kemi or other Brand of China; ABS (optional )
Brake Air Chamber Four double and two single chamber
Electrical System 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Painting Sand blasting processing clean rust
1 coat of anticorrosive primer
2 coats of finish urethane paint
Color as customer choice
Accessory One tooling box with a set of standard trailer tool
Usage Is applicable for the transportations of the mechanical equipment,
large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products.
Other Descriptions The cargo platform is lower than others,
is applicable for unsound road condition,
ensuring the stablenessof the transportation.
Other Specifications It's concave structured with tyre appeared style,
the height of the cargo's carrying platform from ground is 900mm,

(ladders belong to optional components), with the overall height of

1710 mm
Remark We can design model according to client's requirement

Description:

Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.

Advanced means of production technology and perfect testing equipment to protect the product overall structure is reasonable, reliable performance.

Applications:

Apply to transport longer larger parts, miscellaneous pieces of cargo, large components and equipment.

Competitive Advantage:

1. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

2. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.

3. Products fully comply with relevant national standard GB1589, GB/T6420, at the same time to meet

the individual needs of customers.

4. We can be design the special model according to your requirement.

Warranty

ITEM NAME WARRANTY ITEM NAME WARRANTY
MAIN FRAME FRAME 1 YEAR RUNNING GEAR AXLE 6 MONTHS
SUSPENSION 6 MONTHS AXLE BEARING 3 MONTHS
KING PIN 1 YEAR WHEEL HUB 3 MONTHS
BALANCE ARM 3 MONTHS TIRE 6 MONTHS
ITEM NAME WARRANTY ITEM NAME WARRANTY
BRAKING DEVICE BRAKE DRUM 3 MONTHS SUPPORT DEVICE LANDING GEAR 6 MONTHS
BRKE CHAMBER 3 MONTHS

SPARE WHEEL

CARRIER

 6 MONTHS
AIR RESERVOIR 6 MONTHS
ITEM NAME WARRANTY
OTHERS LEAF SPRING 3 MONTHS
BRAKE CHAMBER DIAPHRAGM 3 MONTHS
EMERGENCY RELAY VALVE 3 MONTHS
BRAKE SHOE 3 MONTHS
RELAY VALVE 3 MONTHS

Drop Deck Low Flatbed Trailer For Vessels Transport , Flat Bed Semi TrailerDrop Deck Low Flatbed Trailer For Vessels Transport , Flat Bed Semi Trailer
