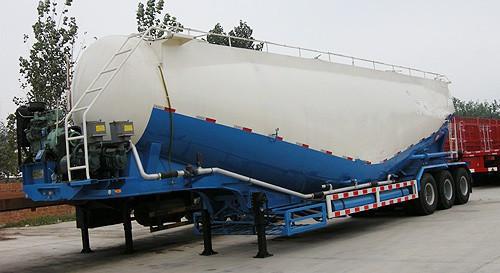

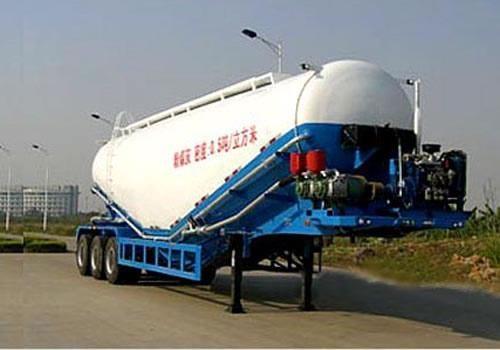

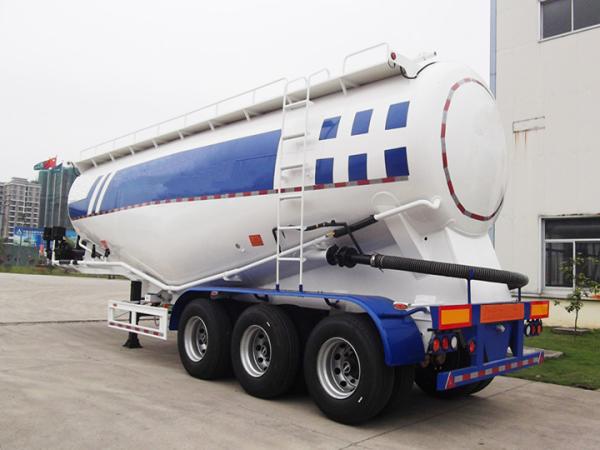

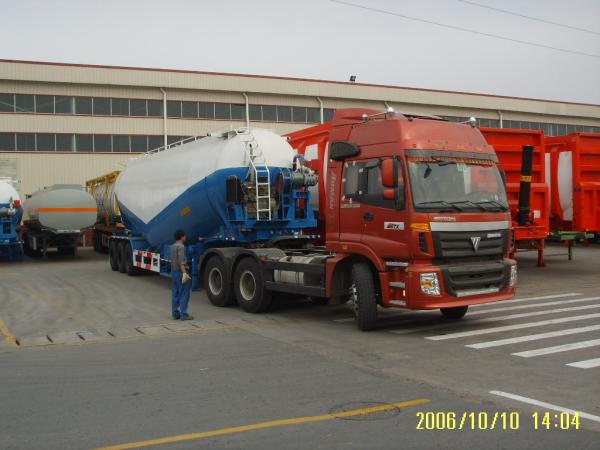

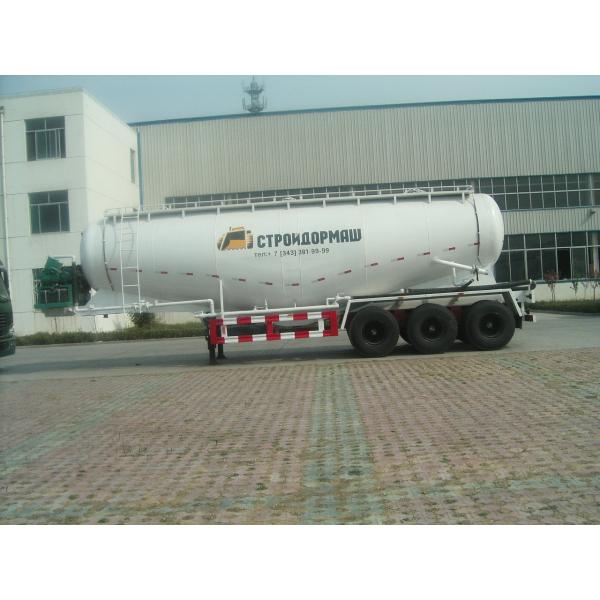

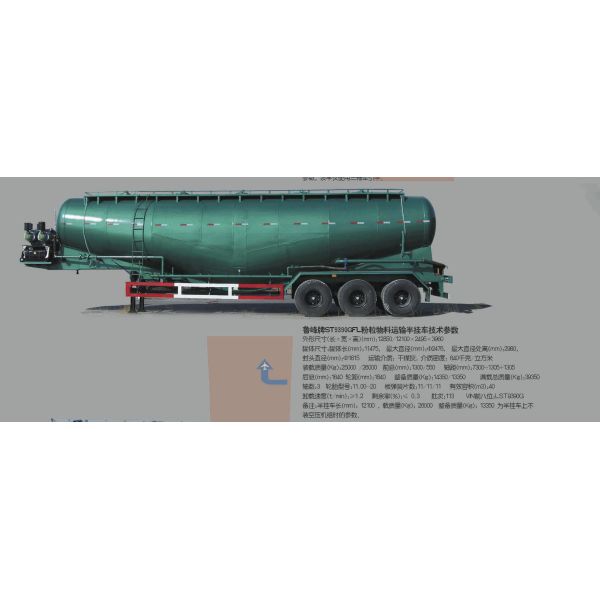

48CBM Bulker Cement Truck With Air Compressor And Diesel Engine
48CBM Bulker Cement Truck With Air Compressor And Diesel Engine
48CBM Bulker Cement Truck With Air Compressor And Diesel Engine
48CBM Bulker Cement Truck With Air Compressor And Diesel Engine
48CBM Bulker Cement Truck With Air Compressor And Diesel Engine
48CBM Bulker Cement Truck With Air Compressor And Diesel Engine
48CBM Bulker Cement Truck With Air Compressor And Diesel Engine
48CBM Bulker Cement Truck With Air Compressor And Diesel Engine
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ425745887
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$10000-30000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Bulk Cement Trailer
Payload :
50-100TONS
Thickness Of Tank :
4mm 5mm Tank Thickness Optional
Axles No. :
2 Axles, 3 Axles Optional
Material :
High Strength Steel Material
advantage :
Customized Produce
Standard :
ISO/CCC/SGS
color :
Optional
Description

48cbm Bulker cement trailer with famous brand air compressor and diesel engine

Specification:

Type BULK CEMENT SEMI TRAILER
Volume(CBM) 48 M3
Loading capacity(kg) 50000
Dimensions(L*W*H) 11450x2500x3990
Function transport bulk powder
Thickness(mm)

Tank body: Q235A 5mm carbon steel

End plate: Q235A 6mm carbon steel

Air compressor 37 KW,0.2Mpa. 1000r/Min(12m3/minute) Bohai brand
Axle 3x13Ton FUWA brand
Compartment 1 inner fluidized bed: air bag
Manhole cover 500mm manhole cover. 1 sets with 1 breath valve.
King pin 50mm or 90mm
Support legs JOST brand D200T
Suspension leaf spring suspension
Steel Spring -/10/10/10, leaf spring suspension
Tire 12R22.5 12 pieces


Description:

We are engaged in offering a quality range of bulk cement carrier trailer. The bulk cement carrier we offer is widely demanded for their durability and reliability. Safe to use and easy to install these products are valiable in various size and spefications.

Applications:

Bulk Cement Semi Trailer Suitable for fly ash, cement, lime powder, mineral powder, granular base, such as a particle diameter of not more than 0.1mm powder dry bulk transport materials.

Competitive Advantage

1. Discharge valve maintenance just need replace the rubber gasket.

2. Tank body inner pressure test before painting.

3. Rust cleaning, sand blasting whole trailer frame before painting.

4. Flat butt automatic welding machine(splice plate machine), to ensure the steel is flat, and seam is welded by one side in shape by two sides. So there is no minimal deformation, also clean and beautiful seam on both sides, round and smooth transfers.
