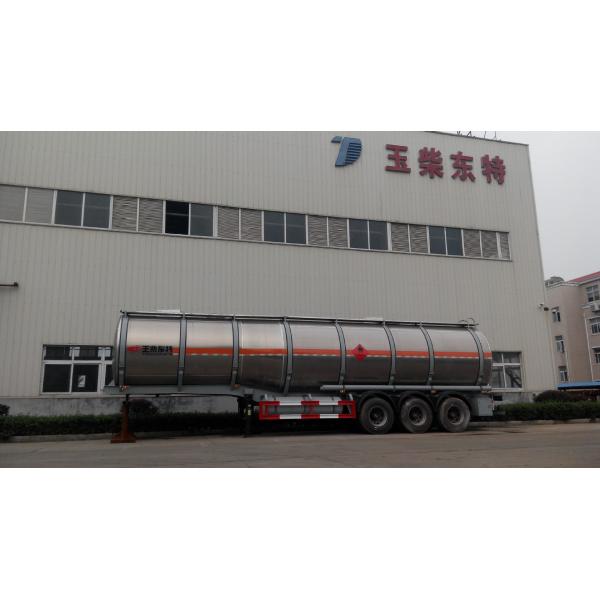

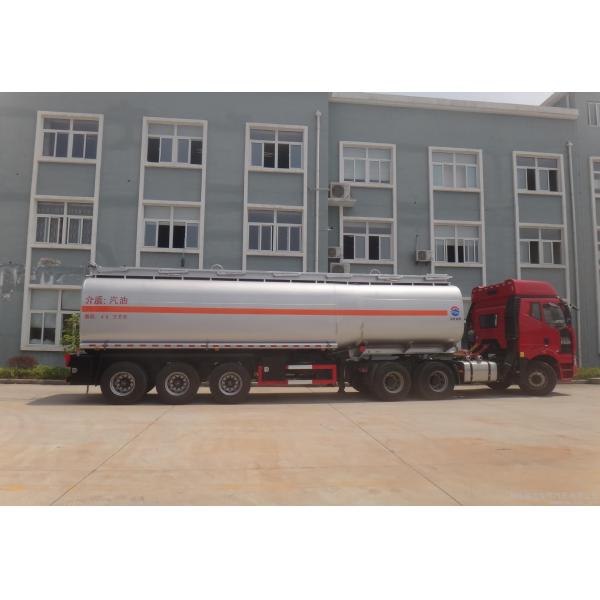

Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
Specifications
Brand Name :
HAIZHOU
Model Number :
HZ425745
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$12000-30000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Oil / Fuel Tanker Trailer
Payload :
20000liters To 60000liters Capacity
Transport :
Oil Transportation
Axles No. :
2 Axles, 3 Axles,4axles Optional
Material :
Carbon Steel / High Strength Steel
advantage :
Customized Produce
Standard :
ISO/CCC/SGS
color :
Optional
Axle Brand :
Fuwa/BPW(Optional)
Landing gear :
JOST brand two-speed,manual operation
Braking systerm :
WABCO RE6 relay valve
Description

Aluminium steel tanker 45000 liters oil tanker semi trailer with warranty

Specification:

Type Fuel Tanker Semi Trailer
Overall Dimension 13,000x2,500x3,800mm
Thickness

Tank body: 6mm

End plate: 6mm

Wave-proof plate: 4mm
Volume 45m³
Axle Fuwa brand, 3*13ton
Compartments 3 compartments
Manhole cover 2 sets with 2 breath valves
Discharge Valve 2 Sets, 3 inch.
Discharge pipe 4 inch seamless steel tube
Suspension CIMC Standard Suspension
Emergency valve 4 inch bottom valve, 1 set
Steel Spring 10/10/10
Tire Tri-angle brand, 1100R20-16, 12 pcs
Rim 8.0, 12 pcs
King pin 90mm or 50mm
Landing Gear CIMC Standard 28T
Brake system

2 line pneumatic brake system.

Type 30/30 spring brake system on two axles.

ISO type air coupling at front of the semi-trailer.

Without ABS.
Brake chamber 4 Double, 2 Single
Electrical system Chinese standard 24V; 7 ways receptacle; LED lamps
Side Guard Side protection guards on both sides.
Spare Tire Bracket 2 pcs
Color and Marking Comply with the customer’s requirement


Description:

1. High tensile strength steel Q345B for I-beam,Q235B for tank body

2. Axle:German or American style from 12 tons to 20 tons

3. Tyre:11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)

4. King pin:Optional for 50# or 90# Kingpin

5. Landing Gear:"Jost" landing gear

Applications:

HAIZHOU road tanker trailer is mainly used to transport kinds of diesel fuel, petrol, crude oil,

chemical etc liquid materials. Our road tanker trailer are engineered and custom built to meet the

needs of each customer, based on application, regional weight laws, severity of service, operational

efficiency and personal preferences.

Competitive Advantage:

1). Fuel tank body with carbon steel material, easy repair, low maintenance.

2). Anti-wave baffles: adopt T610L high strength steel plate can increase the yield and tensile strength,

also low the tare weight of tanker.

3). Reinforced ladder of tank body internal for cleaning and repairing fuel tank trailer.

4). Installed valve protection box, in order to prevent the leakage of transport medium from causing

environment pollution and personal injuries.

5). Our Fuel tank trailer will be inspected before painting, so that ensure every details is good.Aluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi TrailerAluminium Steel Tank Truck Trailer 45000 Liters For Oil Tanker Semi Trailer
