dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
Specifications
Brand Name :
sweeping truck
Model Number :
CLW5071TSL
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$25000-35000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
sweeping truck
Weight :
7.5ton
Drive Type :
LHD 4X2
Model :
CLW5071TSL
Engine :
120HP
Emission Standard :
EURO 2
Standard :
ISO/CCC/SGS
Cleaning efficiency :
96%
vice generator :
57kw JX493-G3
hydraulic system :
Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve
Description

dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
we commit to kinds of sweeper truck with different chassis, any inquiry please contact us.thank you.

Main specification
Product model and name SZD5070TSL4 Road sweeper truck
Gross weight(Kg) 7300 Drive type 4X2, LHD,RHD
Curb weight(Kg) 4805 Overall dimension(mm) 5970X2000X2400
Approach/departure angle(°) 19/12 Cab seats 3
Axle No. 2 Front/rear hang(mm) 1032/1638
Axle load(Kg) 2920/4380 Wheelbase(mm) 3300
Max speed(Km/h) 95
Chassis specification
Chassis model EQ1060TJ20D3 Manufacturer Dongfeng Motor Co., Ltd
Brand name Dongfeng Dimension(mm) 5845×1900×2220
Tyre specification 7.00-16 Tire No. 6+1(one spare tire)
Steel spring number 8/9+5 Front track base(mm) 1506
Fuel type Diesel Rear track base(mm) 1466
Emission standard Euro III Transmission 5 shaft
Cab Single row, Luxurious interior trim with power steering, choose to fix A/C
Engine model Engine manufacturer Displacement(ml) Power(Kw)
CY4102-C3C Dongfeng Chaoyang Engine Co.,Ltd 3856 70(95HP)
Performance
Box volume 1.5m3water tanker,4m3 dust tanker Box material Stainless steel
Loading garbage bin Manual + Automatic Unloading garbage Rear loading
Main Characteristic

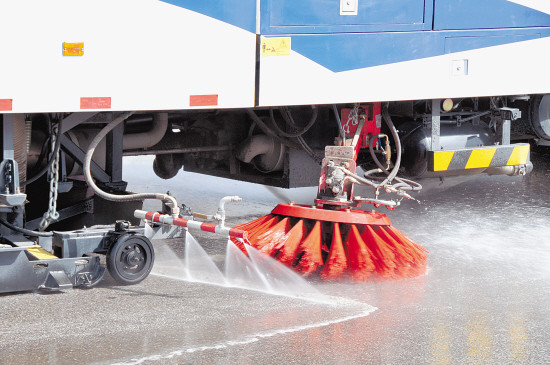

1,Equipped with 4 sweeping brush, JMC 88hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system.
2, Maximum sweeping width 3.2 m, inhaled sizeφ120 mm
3, Optional: monitoring, sprinkler function, self-cleaning function for dustbin.
Product Description

Advantages and features:

1,Hghly wear-resistant automatic clutch drives the special fan to control the starting and stopping of the engine.

2,The imported hydraulic components were intergrated folded and conveniently controlled by the electrical and hydraulic system in the cab.
3,stainless steel water tank and material tank are combined and no remained water in the water tank when working .
4,The sweeping device are hydraulic controlled and can avoid inter collision. Automaticlly.
5,the postposition floating type suction nozzle have self-adjustment function to adapt to the bad road condition .And it is easy to debug and maintain..
6,the adjustable mist spray device can eliminate the second pollution as well as saving water.
7,streamline appearance ,low oil consumption,low noise.


If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.dongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truckdongfeng XBW sweeper truck, small street sweeper, 5cbm sweep truck
