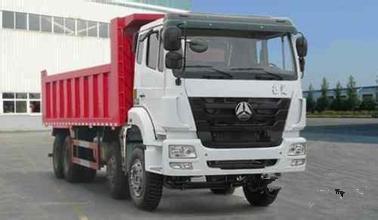

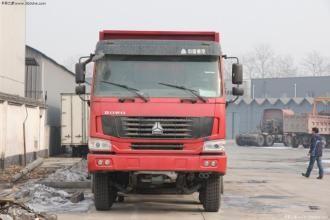

336 hp 8x4 heavy duty dump truck front lift HW76 cab , Howo tipper truck
336 hp 8x4 heavy duty dump truck front lift HW76 cab , Howo tipper truck
336 hp 8x4 heavy duty dump truck front lift HW76 cab , Howo tipper truck
336 hp 8x4 heavy duty dump truck front lift HW76 cab , Howo tipper truck
336 hp 8x4 heavy duty dump truck front lift HW76 cab , Howo tipper truck
336 hp 8x4 heavy duty dump truck front lift HW76 cab , Howo tipper truck
336 hp 8x4 heavy duty dump truck front lift HW76 cab , Howo tipper truck
336 hp 8x4 heavy duty dump truck front lift HW76 cab , Howo tipper truck
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ3317N2867W-1
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1set
Price :
USD45000-50000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200sets/month
Delivery Time :
20-30 work days after receiving deposite
Packaging Details :
Nude, but with wax sprayed
Product Name :
Dump Truck
Condition :
New
Color :
Optional
Drive type :
8x4
Engine power :
336hp
Cambin :
HW76 cab
Cargo body(CBM) :
28.2
Application :
transportation with dumping function
Description

Specification

Truck Model ZZ3317N2867W-1
Truck Brand SINOTRUK –HOWO
Driving Type Left Hand Drive
Dimension(Lx W xH)(unloaded)(mm) 11145x2496x3450
Cargo body size (L*W*H, mm) 8200x2300x1500 28.3m3
Cargo body thickness(mm) bottom:8mm, side:4mm
Lift type of Carriage Front Lift
Approaching angle/Departure angle(°) 19/24
Overhang(front/rear) (mm) 1500/1895
Wheel base (mm) 1800+4600+1350
Max speed(km/h) 80
Curb weight(kg) 15440
Total weight(kg) 50000
Fuel tanker capacity(L) 300L or 600L
Fuel consumption(L/km) 20-40 L/100 km
Clutch Single-plate dry clutch Φ430mm
Engine Model
(Steyr technology, made in China)		 Fuel type Diesel
Horse Power, max(kw/rpm) 336HP
Emission EURO II
Model WD615.69
Transmission Model HW19710
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model ZF8118
hydraulic steering with power assistance
Front axle HF9, Steering with double T-cross section beam
Loading capacity: 9000kg
Rear axle HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Loading capacity:13000kg
Ratio:3.93/4.42/4.80/5.73
Color Optional
Tire 12.00-20
Tire quantity 12+1 spare=13 tires
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab HOWO76 cab, one sleeper with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers


Description:
Our HOWO dump truck has the cab that is mainly classified as HW70 standard type and HW76 lengthened type. The engine power is 266PS, 290PS, 336PS, 375PS, or others. The compartment length is 4.8 to 8.5 meters. The artificially intelligent design is the most important form to demonstrate the competitive advantage of product technology and to safeguard the interests of customers. The HOWO heavy duty vehicle employs the Chinese-original artificially-intelligent technology, which has reached the international level.

Applications:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.

Competitive Advantage
1 Rich Experience in sale of the Sinotruk’s heavy equipment & truck.

2 Expert in kinds of heavy trucks and spare parts.

3 Personalized customization to meet your working requirements.

4 High quality of Original parts & OEM services.
