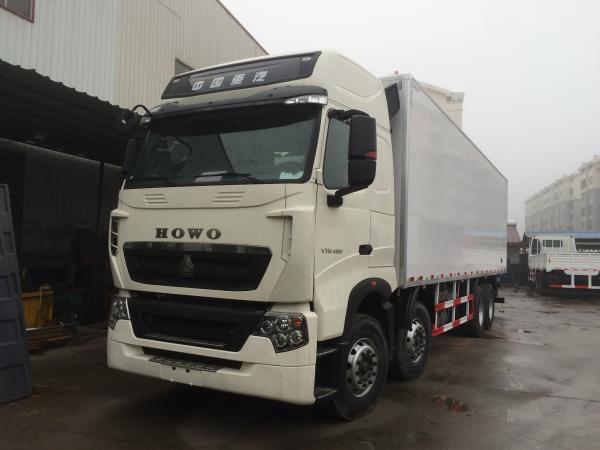

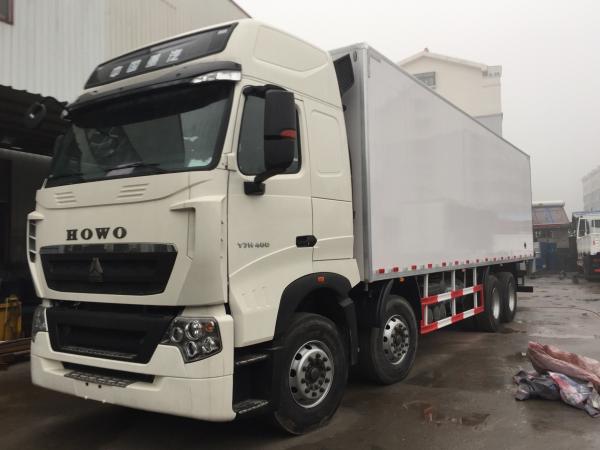

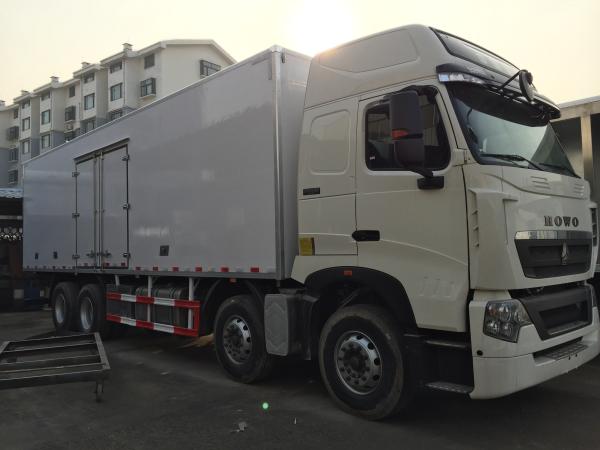

8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck
8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck
8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck
8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck
8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck
8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ1317N4667C1
Certification :
ISO/CCC/BV
Place of Origin :
China
MOQ :
1set
Price :
USD20000-50000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500sets/month
Delivery Time :
20days after receiving deposite
Packaging Details :
packaging suitable for sea transport
Product Name :
Refrigerator Truck
Application :
Transport Frozen or Fresh Goods
Drive :
8x4
Refrigerating capacity :
30ton
Min. temperature(°C) :
-18
Box material :
FRP+PU Foam+FRP
Color :
Optional
Description

8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck

Specifications:

Truck Brand SINOTRUK—HOWO ( LHD)
Truck Model ZZ1317N4667C1
Dimension(Lx W x H)(unloaded) 11984x2496x3700
Cargo body dimension (L x W x H)mm 9400x2400x2435 standard container size
Cargo body shape

Box/ Container type with back double doors and

two sides double doors.
Cargo body thickness(mm) bottom:3mm,side :1.5mm
Approaching angle/Departure angle(°) 16/14
Overhang(front/rear) (mm) 1500/2734
Wheel base (mm) 1800+4600+1350
Max speed(km/h) 95
Curb weight(kg) 13560
Loading Weight(kg) 31000

Engine

(Steyr technology, made in China)

 Model

WD615.69 water-cooled,four strokes,6 cylinders in line with water

cooling directly injection
Fuel type Diesel

Horse Power,

max

(kw/rpm)

 336HP
Emission EURO II
Fuel tanker capacity (L) 300
Transmission Model HW13710CL,10 forwards and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake

spring energy, compressed air operating on rear

wheels
Auxiliary brake Engine exhaust brake
Steering system Model ZF8098 hydraulic steering with power assistance
Front axle HF7
Rear axle ST13
Color White
Tyre 295/80R22.5 tubeless tires
Tyre quantity 12pcs + 1 spare
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V

8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck8x4 Refrigerated Box Truck with closed FRP Sandwich Panels Container , Cargo Van Truck

Description:

Our company mainly manufacturing the dump truck, tractor trucks, concrete pump truck, fuel tank truck, refrigerated Box Truck ,compression garbage truck, sewage suction truck, sprinkling truck, powder material truck, municipal engineering vehicles, semi-trailers, new energy automobile, products are sold all over the country and exported Southeast Asia, Africa, North America, the Middle East, Russia and other markets.

Applications:

Refrigerator truck is closed van truck, which is used to transport frozen or fresh goods, it fitted with the

refrigeration unit device and polyurethane thermal insulation van and it is refrigeration special use

transport truck, usually use for transporting frozen foods (freezer truck), dairy (milk truck), vegetables

and fruits (fresh goods transport vehicle), vaccine and drug (vaccine vehicles) etc…

Competitive Advantage:

1. One year free warranty for major 3 components: engine, gearbox, axles. Other spare parts can be supplied in factory cost, please refer to below details.

2. Our company offer video guide, if customer need our engineer will go to customer country to assist

the installation and operation.

3. Transportation warranty: our company offer Transportation insurance for customer. To ensure

customer’s product arrived at destination safely.

4. Our company pay for two person come to china for training. All the training expense will be paid by

our factory, the training time can be one week or two weeks according to customer's requirement
